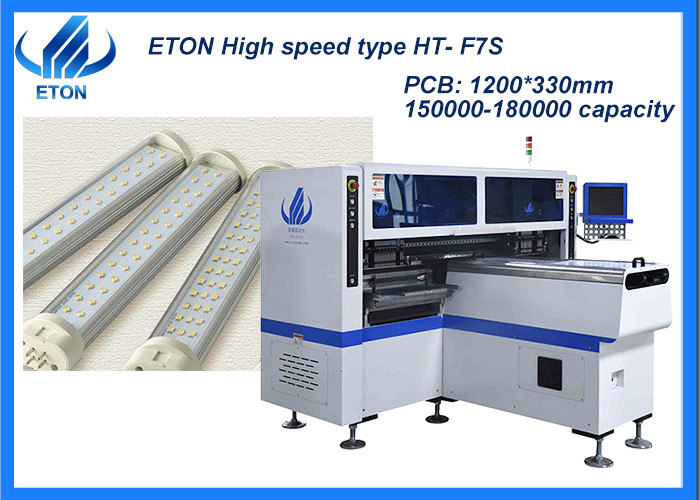

Intelligent LED panel lights 1200*330mm SKD pick and place machine
Production description
Dual arm professional high-speed mounter, mounting 2-4 types of materials at the same time capacity reach 180000 CPH.
- Apply to the 0.6m, 0.9m, 1.2m rigid PCB and 0.5m, 1m LED flexible strip, producing with 4 types materials at the same time with high capacity, available for board with any proportion of LED chip and resistor.
- Dual arm four module, 17 nozzles for each mounting part, part A or part B can be mounted separately or synchronously.
- Calibration automatically, high precision, available for RGB.
- Exclusive patent technology: Group picking and group mount placing.
- IPC9850 capacity: 150000-180000 CPH
Machine parameter
| Model |
HT-F7S |
| Dimension |
2700*2300*1550mm |
| Total weight |
1700kg |
| PCB length width |
Max: 1200*330mm
Min: 100*100mm
|
| PCB thickness |
0.5-5mm |
| PCB clamping |
Adjustable pressure pneumatic |
| Mounting mode |
Group picking and group placing |
| Mounting precision |
±0.02mm |
| Mounting speed |
150000-180000 CPH |
| No. of feeders station |
68 PCS |
| No. of head |
34PCS |
Certificates
As an experienced manufacturer in SMT machine, we obtained a number of intellectual property technologies, including 9 invention patents, 112 practical patents, 12 software copyrights, with our won R&D department for production and inspection. And also earned the oversea certificates as CE, CCC, SIRA,etc.
Exhibition
Participate in various exhibitions at home and abroad every year (except during the epidemic period)
Domestic exhibitions: Guangzhou Guangya Exhibition, Shanghai Munich Exhibition, Chongqing LED Light Exhibition, etc.
Foreign exhibitions: India Mumbai Exhibition, India Delhi Exhibition, Egypt Exhibition, Turkey Exhibition, Pakistan Exhibition, Thailand Exhibition, etc.
Shipping and Delivery
Shipping Way:
※ By air, for sample and small package
※ By sea, for large package and quantity;
※ Other ways as customer requested.
Delivery Time:
※ Within 30 Days.
Related machine

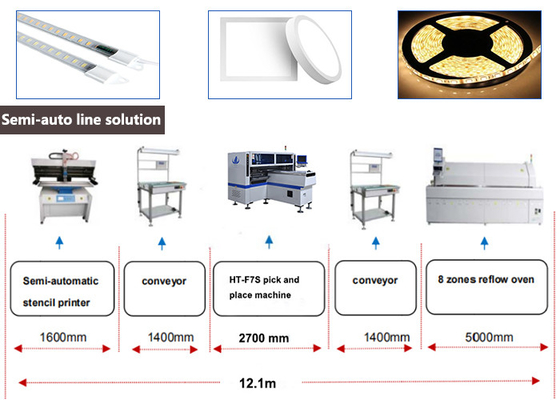

We can provide a whole SMT production line,led light production line:
1.Pick and place machine
2. Loader machine
3. Conveyor machine
4. Stencil printer machine
5. Reflow oven machine
6. Unloader machine
7. Solder paste mixer
8. Roll to roll led strip light assembly machine
FAQ
Q.How can I make inspection when something wrong with the machine?
A. Well, the inspection is taken by our professional engineer to check and modulate the machine, if you counter any problem of our machine please contact us, and we will arrange our engineer to solve it.
Q. Can you accept D/P or D/A as the payment term?
A. For our regular payment terms, we usually use T/T.
