Warranty: | 1 Year | Name: | SMT Pick And Place Machine |
---|---|---|---|
Weight: | 1700kg | Pcb Thickness: | 0.5-5 Mm |
Dimension: | 2700*2300*1550mm | ||
High Light: | 4 Moudle SMT Pick Place Machine,68 Head SMT Pick Place Machine,Dual Arm Head SMT Mounter |
CCC LED bulbs high precision recognition 68 heads smt pick and place machine
Product Features
Technical parameter

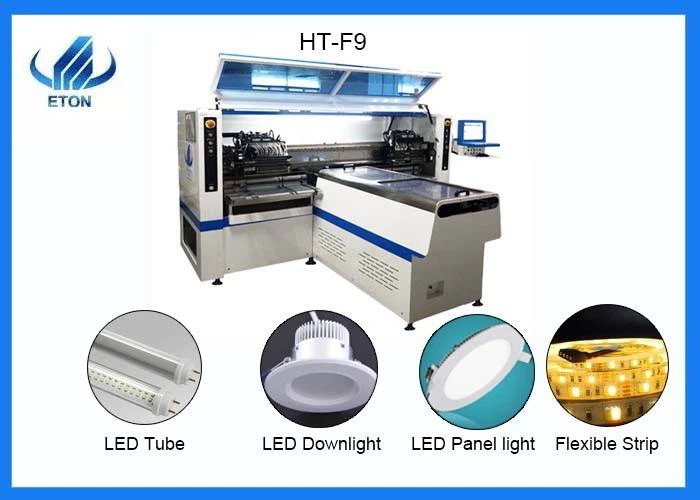

Model | HT-F9 |
Length | 2700mm |
Width | 2300mm |
Height | 1550mm |
Total Weight | 1700kg |
PCB size(L* W) | Max:1200*300mm Min;100*100mm |
PCB Thickness | 05-5mm |
PCB Clamping | Adjustable pressure pneumatic |
Mounting mode | Group to take and group to mount |
System | Windows7 |
Software | R&D Independently |
Display | Touch screen monitor |
Input Device | Keyboard, mouse |
No.of camera | 5sets(Digital camera) |
Components | LED3014/3020/3528/5050,capacitors,resistors,bridge rectifiers etc. |
No.of feeders station | 68PCS |
No.of nozzles | 68PCS |
Conveyor transmission | Max Length:1200mm |
Electrical control | Independent research and development by ETON |
X,Y,Z Axis drive way | High-end magnetic linear motor +Servo motor |
Feeding way | Electric feeder with double motor |
Product application
Suitable for mounting many kinds of products, such as LED tube, panel, down-light, Solar lamps, wall lamps, ceiling lamps, street lamps, table lamps and linear lamps. And Components: LED 3014/3020/3528/5050 and resistor, capacitors, bridge rectifiers.
Company Profile

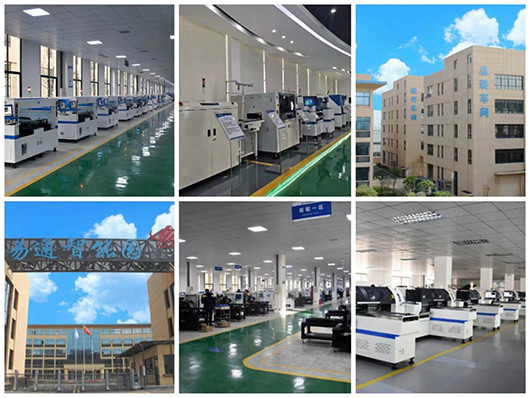

Shenzhen ETON Automation Equipment Co.,Ltd. was founded in 2011. It is a manufacturing and process solution provider focusing on R&D, production, sales and service of SMT high-speed pick and place machines and SMT peripheral automation equipment. The company has SMT high-speed pick and place machine division, precision solder paste stencil printer division, high-speed precision dispensing equipment division, and SMT peripheral automation equipment division.
ETON mission: professionalism, excellent technology, sharing results.
ETON goal: to create a national brand and build an international Chinese enterprise.
EETON purpose: to create value for customers and create benefits for the society.
Certification
Obtained a number of intellectual property technologies , including 9 invention patents ,112 practical patents ,12 software copyrights
After sales service
Maintenance period:1 year.
Visit customers regularly and gather information.
Provide latest information about technology and equipment.
FQA
Q1:Do you provide software updates?
For customers who buy our machine, we can offer free upgraded software for you.
Q2:Does our machine need air supply?
Yes, F9 needs air supply.
Q3:This is the first time I use this kind of machine, is it easy to operate?
We have English user manual and guide video to teach you how to use the machine. If you still have question, pls contact us by email/WhatsApp/phone etc for online service.
Q4:How about the warranty?
We have 1 years warranty for F9 with lifetime after-sale support.
Q5:How can I buy machine from you?
(1)Consult us on line or by e-mail;
(2)Negotiate and confirm the final price, shipping, payment method and other terms;
(3)Send you the proforma invoice and confirm your order;
(4)Make the payment according to the method put on proforma invoice;
(5)We prepare your order in terms of the proforma invoice after confirming your full payment . And 100% quality check before shipping;
(6)Send your order via express or by air or by sea.
