Product Details:
Payment & Shipping Terms:
|
| Warranty: | 1 Year | Product Name: | Place Machine\ LED Mounter\LED Assembly Machine |
|---|---|---|---|
| Weight: | 2500KG | Pcb Thickness: | 0.5-5 Mm |
| Application: | SMT Mounting Shooter Machine | Name: | SMT Pick And Place Machine |
| Type: | Automatic | Dimension: | 3150*2250*16500mm |
| High Light: | 24 Heads SMT Pick Place Machine,SMT Pick Place Machine CCC,LED Bulbs SMT Shooter |
||
Product Description

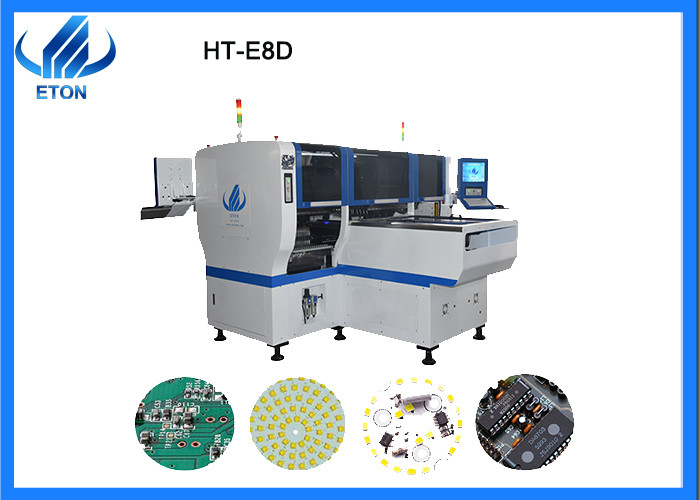

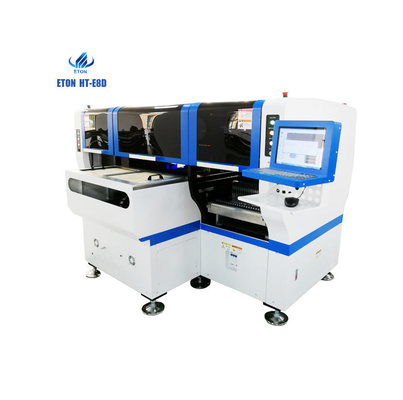

This machine can produce PCB board from 100*100cm to 1200*300mm , The transmission conveyor width can be adjust according to the PCB boards. With dual module and dual operation system , HT-E8D-1200 can produce two different products at same time. Adopt High-speed multi modular head, apply to LED chip,capacitors, resistors,lens,IC,shaped components.etc. There are 24 spindles, both high-speed and intelligent with light compact design. Adopt High - end magnetic linear motor , servo system and multi function modular head.The mounting speed is 90000, twice that of E8S-1200. So if you need more speed, this machine is a good choice. ET-E8D-1200 has 4 sets of imported camera. Function is vision for the flight identification, Mark correction.
Technical parameter
| Model | HT-E8D |
| Length | 3150mm |
| Width | 2250mm |
| Height | 1650mm |
| Total Weight | 2500kg |
| PCB size(L* W) | Max:1200*300mm Min；100*100mm |
| PCB Thickness | 05-5mm |
| PCB Clamping | Adjustable pressure pneumatic |
| Mounting mode | Group picking and separately placing,separately picking and separately placing |
| System | Windows7 |
| Software | R&D Independently |
| Display | Touch screen monitor |
| Input Device | Keyboard, mouse |
| No.of camera | 2setsDigital camera(Digital camera) |
| Components | LED chip,capacitors,resistors,IC,shaped components,etc. |
| No.of feeders station | 28PCS |
| No.of nozzles | 12PCS |
About us
Shenzhen ETON Automation Equipment Co.,Ltd. is a leading manufacturer of automatic high - speed pick and place machine and the largest high - tech LED light making machine manufacturer in China.ETON Industrial Park is 50000 square meters modern intelligent Industrial parks , equipped with an advanced processing and manufacturing center. There are various types of machines , the fastest capacity reach 250000CPH, which is the fastest machine mounting speed in the world.
Our Service
Trade show and sales service
We will provide the sales service though e-mail and exhibitions to communicate face to face , let you feel the real competitive products.
After sales service
FAQ
1. Do you have oversea after sale service?
We can offer technical support abroad. If you have any technical problem, our engineers will support you promptly.
2. How is the training?
After buying our machines, you can send your engineers to our factory, or we send our engineer to your factory, and then we will train your people to operate these machines.
3. It’s hard to use the machine?
No, not at all. For our previous clients, at most 5 days is enough to learn to operate the machines.
4. What’s the payment term? What about the trade term?
T/T is OK. You can choose FOB Shenzhen
