Product Details:
Payment & Shipping Terms:
|
Warranty: | 1 Year | Applicable Components: | 0402 |
---|---|---|---|
Name: | SMT Pick And Place Machine | Condition: | New |
Product Name: | Place Machine\ LED Mounter\LED Assembly Machine | Weight: | 1700kg |
Mounting Speed: | 80000cph | Power: | 380AC 50HZ |
High Light: | Multi functional LED Light Making Machine,20 Heads LED Light Making Machine,Windows7 LED Light Making Machine |
Product Description
Product Parameters

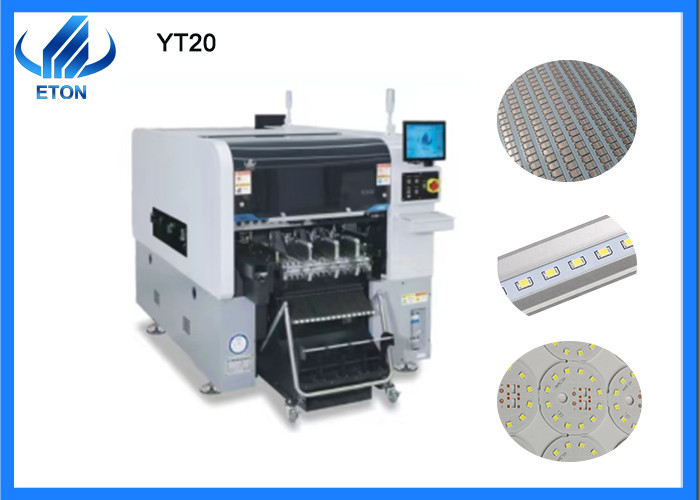

Model | YT20 |
Dimension | 2788*1686*1375mm |
Total Weight | 1700kg |
PCB size(L* W) |
Max size:500mm*450mm(single PCB) 500mm*300mm(double PCB) Min size:50mm*50mm |
PCB Thickness | 0.5-4.5mm |
PCB Clamping | Cylinder clamping, track width adjustable |
Mounting mode | Group picking and separately placing,separately picking and separately placing |
System | Windows 7 |
Software | R&D Independently |
Display | Touch screen monitor |
Input Device | Keyboard, mouse |
No.of camera | 4 sets Digital camera |
Components | Min 0201~40*40mm Tape reel packages and IC tray feeder etc. |
No.of feeders station | Double side docking cart slot 32PCS,tape reel packages:64PCS |
No.of nozzles | Double side:20pcs(single side:10pcs) |
Details
Optical recognition camera
Mark recognition : High - precision Mark recognition system , adopt 3- color illumination recognition , apply to any shape Mark and LENS ( Blu - ray scan ), wider range of applications .
Fixed flight vision camera : High - speed flight vision camera , quickly captures multiple head images at once , perform visual calibration of image position , alignment correction , adjustable light source brightness .
Docking Cart
Double side docking cart slot 32PCS, tape reel packages :64PCS( single side docking cart slot 16PCS, tape reel packages :32PCS), freely switching between docking cart and IC tray feeder ( IC tray feeder : Option )
Smart Double - head Tape feeder
Support YT series double head intelligent electric tape reel feeder , by optically correcting the feeding position of the component , it can achieve stable , accurate and high - speed feeding .
IC Tray Feeder
Support multi - layer tray feeder ( IC tray feeder ) installment , freely switching between docking cart and IC tray feeder .
Company Information

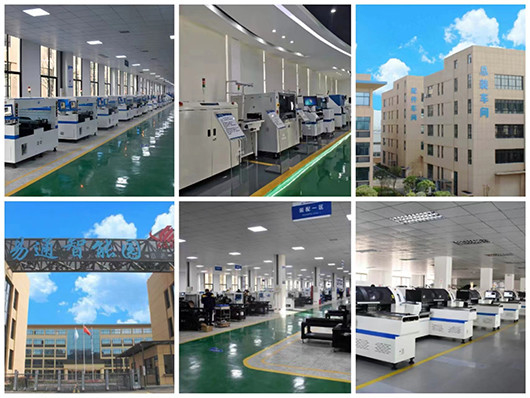

Shenzhen ETON Automation Equipment Co.,Ltd.
Shenzhen ETON Automation Equipment Co.,Ltd. was founded in 2011. It is a manufacturing and process solution provider focusing on R&D, production, sales and service of SMT high-speed pick and place machines and SMT peripheral automation equipment. The company has SMT high-speed pick and place machine division, precision solder paste stencil printer division, high-speed precision dispensing equipment division, and SMT peripheral automation equipment division.
Our client
As the leading brand of domestic high-speed placement machines, ETON has an absolute leading position in the market share of the LED industry. 80% of the large LED factories in the market are our customers. The products are exported to more than 20 countries and regions such as South Korea, India, Vietnam, Tunisia, Egypt, Turkey and so on.
FAQ
how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
what can you buy from us?
SMT Pick And Place Machine
why should you buy from us not from other suppliers?
Our advantage lies in: 1. Top quality: We have more than 10 years experience in SMT,we have the goods with best quality,just tell me what you need,then will do the best for you 2. Lowest price: give yo lowest price for long time cooperation
