Product Details:
Payment & Shipping Terms:
|
Plate Type: | Screen Printer | Warranty: | 1 Year |
---|---|---|---|
Item: | Solder Screen Printing Equipment | Name: | Solder Paste Printer |
Pcb Thickness: | 0.6~6mm | Condition: | New |
Usage: | Tube Printer | Printing Accuracy: | ±0.025mm |

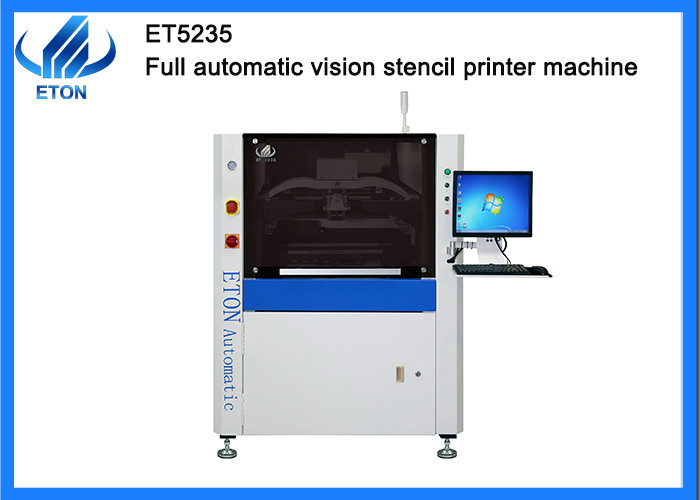

Product presentation
Technical parameter
Model | ET5235 |
Screen Frames max size | 737mm |
Screen Frames min size | 470mm |
Screen Frames thickness | 25~40mm |
PCB size(L* W) |
Max size:520mm*350mm Min size:50mm*50mm |
PCB Thickness | 0.6-6mm |
PCB warpage | <1%(Max PCB diagonal) |
Transport height | 900±20mm |
Transport direction | Left-Right; Right-Left; Left-Left; Right-Right |
Transport speed | Max 1200mm/s Programmable |
Squeegee pressure | 0~10kg/cm |
Squeegee angle | 55℃Standard |
Squeegee type | Steel scraper(Standard),PV scraper(Option) |
Stencil separation speed | 0.1~20mm/sec Programmable |
Cleaning system | Dry,Wet,Vacuum (Programmable) |
Table adjustment ranges | X:±5mm;Y:±5mm;θ:±2 |
Printing accuracy | ±0.025mm |
Cycle time | ≤9s (Exclude printing & cleaning) |
Details

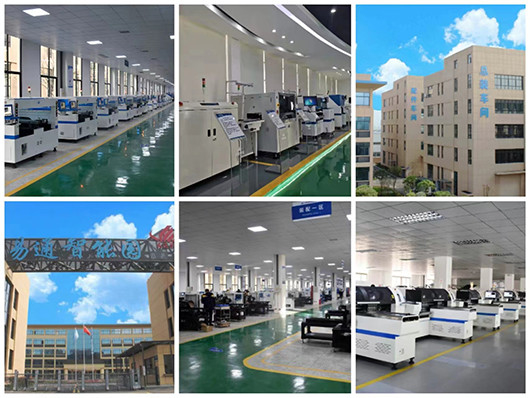

About us
Shenzhen ETON Automation Equipment Co.,Ltd. was founded in 2011. It is a manufacturing and process solution provider focusing on R&D, production, sales and service of SMT high-speed pick and place machines and SMT peripheral automation equipment. The company has SMT high-speed pick and place machine division, precision solder paste stencil printer division, high-speed precision dispensing equipment division, and SMT peripheral automation equipment division.
ETON is not only in the leading position in the field of photoelectric high-speed placement machines, but also has made breakthrough progress in the field of SMT high-speed placement machines. It has successfully developed a variety of cost-effective SMT high-speed universal placement machines,which are widely used in lighting,LED display,electronics field,power drive, home appliances, new energy and other industries.
Certification
We got 9 invention Patents, 112 practical patents,12 software copyrights.
Patent number: ZL 2011 2 0237740.9 ZL 20 11 2 0334606.0
ZL 2012 2 0178869.1 ZL 2012 2 0415505.0
ZL 2012 2 0415044.7 ZL 2012 2 0415356.8
ZL 2012 2 0415061.0
Tramsportation and packing
All machines shipped abroad will use foam packaging to protect the machines from collisions;
Secondly, it will be wrapped with stretch film to prevent the equipment from getting damp;
Vacuum paper packaging and moisture-proof bags keep the machine dry during transportation to prevent moisture;
Use straps, triangles and nails to fix the machine to prevent damage to the machine during transportation;
Each export machine will be equipped with a strong export-free wooden box;
