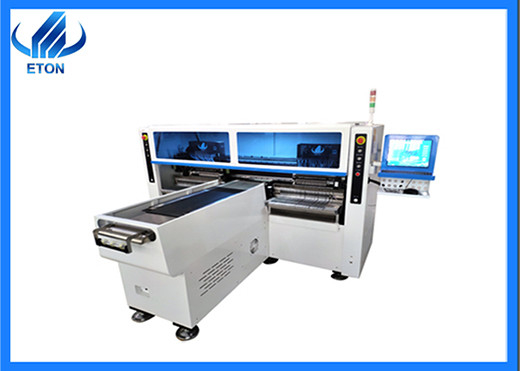

Introduction
- Dual arm magnetic linear high speed mounter for flexible strip(no wire), Producing 4 types materials at the same time capacity reach 250000 CHP.
- Flight recognize camera, no pause to detect the presence or absence of components component adsorption state, prevent placement errors.
- Automatic production with identification data, correction and fill missing component automatically.
- The clamping rod is driven by the air cylinder to correct the materials taken by mounting head.
-
Dual arm four module ,17 nozzles for each mounting part , part A or part B can be mounted separately or synchronously .
-
Exclusive patent technalogy: Group to pick and group to mount.
Product Parameters
| Model |
HT-T9 |
| Length |
3100mm |
| Width |
2300mm |
| Height |
1550mm |
| Total Weight |
1700kg |
| PCB size(L* W) |
250mm*any length |
| PCB Thickness |
0.5-1.5mm |
| PCB Clamping |
Vacuum adsorption,cylinder clamping, track width adjustable |
| Mounting mode |
Group to take and group to mount |
| System |
Windows7 |
| Software |
R&D Independently |
| Display |
Touch screen monitor |
| Input Device |
Keyboard, mouse |
| No.of camera |
5setsDigital camera(Digital camera) |
| Components |
LED3014/3020/3528/5050,capacitors,resistors,bridge rectifiers etc |
| No.of feeders station |
68PCS |
| No.of nozzles |
68PCS |
| Power |
380AC 50HZ |
| Operating environment |
23℃±3℃ |

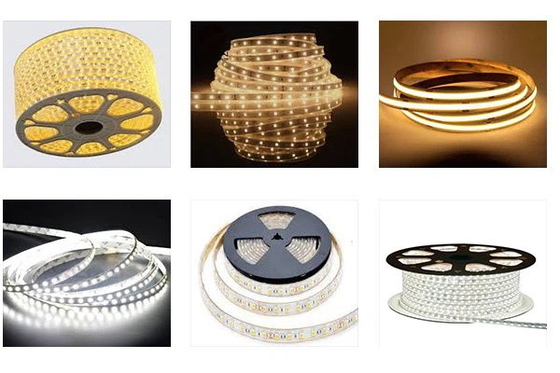

Product application
available for 5M,5OM or any length of Flexible strip and Roll to Roll .

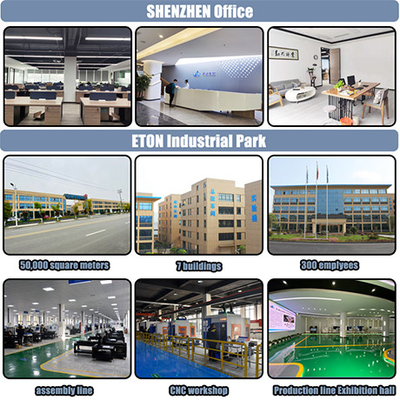

About us
Shenzhen ETON Automation Equipment Co.,Ltd. was founded in 2011. It is a manufacturing and process solution provider focusing on R&D, production, sales and service of SMT high-speed pick and place machines and SMT peripheral automation equipment. The company has SMT high-speed pick and place machine division, precision solder paste stencil printer division, high-speed precision dispensing equipment division, and SMT peripheral automation equipment division.
ETON is not only in the leading position in the field of photoelectric high-speed placement machines, but also has made breakthrough progress in the field of SMT high-speed placement machines. It has successfully developed a variety of cost-effective SMT high-speed universal placement machines,which are widely used in lighting,LED display,electronics field,power drive, home appliances, new energy and other industries.
Our Advantage
- Technical support: Independent R&D, exclusive patented technology
- ETON’s purpose: to create value for customers, creating benefits for society.
- After sales service
Maintenance period:1 year.
Visit customers regularly and gather information.
Provide latest information about technology and equipment.
FAQ
Q:How is the training?
A:After buying our machines,your engineers can go to our company or it is so easy to operate the machine according the training video and user manual,the user manual will come with the machine together.
Q:Is it hard to use these machines?A:No,not hard at all.For our previous clients,at most 2 days is enough to learn to operate the machines.
Q:Does your machines have quality certificate?
A:All of our machines have passed CE certificate,ISO14001(BCC),ISO9001(IQNET) and have own patent.
Q:The Warranty of the machine?
A:One year,then the parts will be free for the buyer in the warranty.
Q:English version for these machines?
A:Yes
