Product Details:
Payment & Shipping Terms:
|
| Warranty: | 1 Year | Name: | SMT Pick And Place Machine |
|---|---|---|---|
| Application: | SMT Production Line | Power Supply: | 380AC 50HZ |
| Condition: | New | Weight: | 1700kg |
| Mounting Speed: | 80000cph | Dimension: | 2788*1686*1375mm |
| Feeders: | 20 |
Product Description
Product Parameters

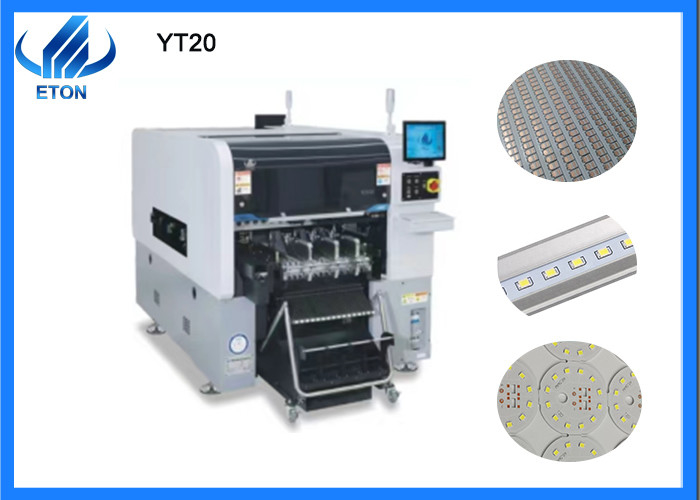

| Model | YT20 |
| Length | 2788mm |
| Width | 1686mm |
| Height | 1375mm |
| Total Weight | 1700kg |
| PCB size(L* W) |
Max size:500mm*450mm(single PCB) 500mm*300mm(double PCB) Min size:50mm*50mm |
| PCB Thickness | 0.5-4.5mm |
| PCB Clamping | Cylinder clamping, track width adjustable |
| Mounting mode | Group picking and separately placing,separately picking and separately placing |
| System | Windows 7 |
| Software | R&D Independently |
| Display | Touch screen monitor |
| Input Device | Keyboard, mouse |
| No.of camera | 4 sets Digital camera |
| Components | Min 0201~40*40mm Tape reel packages and IC tray feeder etc. |
| No.of feeders station | Double side docking cart slot 32PCS,tape reel packages:64PCS |
| No.of nozzles | Double side:20pcs(single side:10pcs) |
| Power | 380AC 50HZ |
| Operating environment | 23℃±3℃ |
| Conveyor transmission | Max Length:500mm |
| Transmission speed | >500mm/sec |
| Transmission direction | Single |
| Transmission mode | Online drive |
| Position mode | Optical |
| Air supply | 0.4-0.6mpa(4-6kgf/cm )150N/min |
| Electrical control | Independent research and development by ETON |
| X,Y,Z Axis drive way | High-end magnetic linear motor +Servo motor |
| Feeding way | Electric feeder with double motor |
Company Profile
Shenzhen ETON Automation Equipment Co.,Ltd. was founded in 2011. It is a manufacturing and process solution provider focusing on R&D, production, sales and service of SMT high-speed pick and place machines and SMT peripheral automation equipment. The company has SMT high-speed pick and place machine division, precision solder paste stencil printer division, high-speed precision dispensing equipment division, and SMT peripheral automation equipment division.
ETON is not only in the leading position in the field of photoelectric high-speed placement machines, but also has made breakthrough progress in the field of SMT high-speed placement machines. It has successfully developed a variety of cost-effective SMT high-speed universal placement machines,which are widely used in lighting,LED display,electronics field,power drive, home appliances, new energy and other industries.

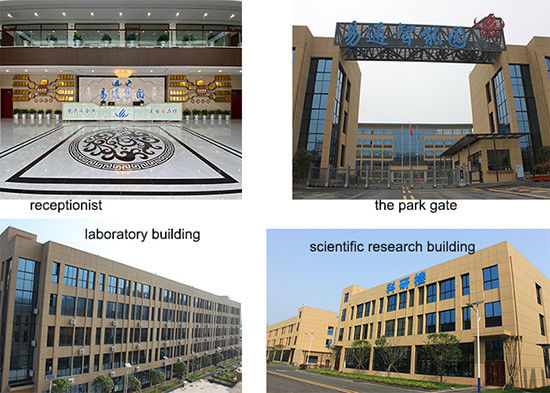

ETON Industrial Park is 50000 square meters modern intelligent Industrial parks , equipped with an advanced processing and manufacturing center. There are various types of machines , the fastest capacity reach 250000CPH, which is the fastest machine mounting speed in the world
Certificate
We got 9 invention Patents, 112 practical patents,12 software copyrights.
Patent number: ZL 2011 2 0237740.9 ZL 20 11 2 0334606.0
ZL 2012 2 0178869.1 ZL 2012 2 0415505.0
ZL 2012 2 0415044.7 ZL 2012 2 0415356.8
ZL 2012 2 0415061.0
