Product Details:
Payment & Shipping Terms:
|
| Warranty: | 1 Year | Name: | SMT Pick And Place Machine |
|---|---|---|---|
| Application: | SMT Production Line | Power Supply: | 380AC 50HZ |
| Condition: | New | Weight: | 1700kg |
| Mounting Speed: | 45000cph | Dimension: | 2550*1650*1550mm |
| Feeders: | 12 |
Product Description
Why choose the pick and place machine
This machine is widely used at home and abroad and is well received by customers
It is a multi-function machine, used to mount a variety of products, such as a variety
of lamps, drivers, displays, lenses, circuit boards and so on.
Accurate recognition: flight recognition visual alignment, MARK correction
The size of the PCB is 1200*500, which is suitable for mounting various bulbs and lamps.
Technical parameter

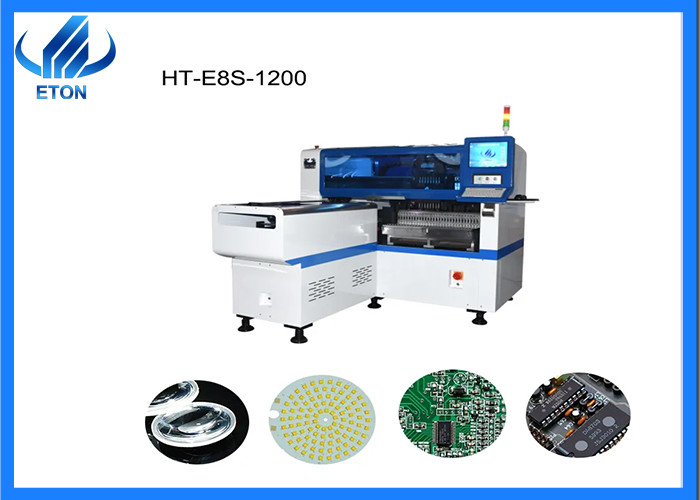

| Model | HT-E8S-1200 |
| Dimension | 2550*1650*1550mm |
| PCB size(L* W) | Max:1200*500mm Min；100*100mm |
| Mounting mode | Group picking and separately placing,separately picking and separately placing |
| No.of camera | 2setsDigital camera(Digital camera) |
| Components | LED chip,capacitors,resistors,IC,shaped components,etc. |
| No.of feeders station | 28PCS |
| No.of nozzles | 12PCS |
| Conveyor transmission | Max Length:1200mm |
| Electrical control | Independent research and development by ETON |
| X,Y,Z Axis drive way | High-end magnetic linear motor +Servo motor |
| Feeding way | Electric feeder with double motor |
Company profiles
Our company was established in 2011 with over 10years experiences in high-speed pick and place machine. We are the largest high -tech manufacturer in China with strong capability of design ,R&D, manufacture, sales&services. “High efficiency””High quality”and “High Stability ” are he core technology of ETON. We got 9 invention Patents, 112 practical patents,12 software copyrights. Moreover, ETON has invented the fastest automatic pick and place machine with speed 250000CPH. We got large market share in USA, KOREA,INDIA, GERMANY,TURKEY more than 20 countries.We expanded our plant and built a new bigger industrial park in Jiangxi Province.
Customer case
ETON is the No. 1 brand of placement machines in China, enjoys a high reputation at home and abroad, has extensive influence, and is a leader in China's placement machine industry.
Service
Pre-sale
Provide equipment and SMT production lines that meet customers' needs according to customer needs;
Provide relevant suggestions to customers;
On sale
Real-time follow-up of the production situation of the customer's machine and inform the customer of the production progress
After sale
1. Arrange engineers to come to the factory to install, debug and teach free of charge;
2. One-year maintenance period. During the maintenance period, any parts that need to be replaced or repaired are free of charge;
3. Every year there is an opportunity for free machine maintenance
4. Visit customers regularly to understand the usage of the machine and collect customer feedback.
