Product Details:
Payment & Shipping Terms:
|
| Warranty: | 1 Year | Applicable Components: | LED Chip、capacitors、resistors、IC、shaped Components、etc. |
|---|---|---|---|
| Name: | SMT Pick And Place Machine | Power Supply: | 380AC 50HZ |
| Condition: | New | Weight: | 2500KG |
| Mounting Speed: | 90000cph | Dimension: | 3150*2250*1650mm |
| Feeders: | 24 |
Product Description
1.It has 24PCS head 48PCS feeders station and the mounting speed can reach 90000CPH.
2.The maximum PCB size is 1200*300mm.Min size 100*100mm.
3.Group picking and separately placing,separately picking and separately placing.
4.Vision alignment flight identification,Mark correction.
5.Auto-optimization after coordinates generated,etc.
Technical parameter

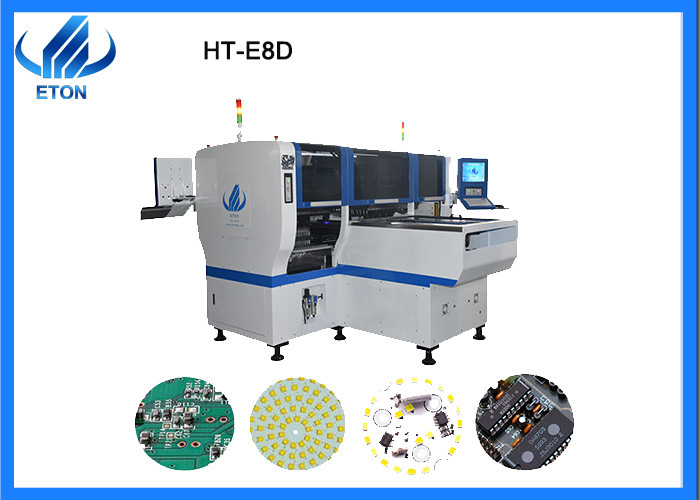

| Model | HT-E8D |
| Length | 3150mm |
| Width | 2250mm |
| Height | 1650mm |
| Total Weight | 2500kg |
| PCB size(L* W) | Max:1200*300mm Min；100*100mm |
| PCB Thickness | 05-5mm |
| PCB Clamping | Adjustable pressure pneumatic |
| Mounting mode | Group picking and separately placing,separately picking and separately placing |
| System | Windows7 |
| Software | R&D Independently |
| Display | Touch screen monitor |
| Input Device | Keyboard, mouse |
| No.of camera | 2setsDigital camera(Digital camera) |
| Components | LED chip,capacitors,resistors,IC,shaped components,etc. |
| No.of feeders station | 28PCS |
| No.of nozzles | 12PCS |
| Conveyor transmission | Max Length:1200mm |
| Electrical control | Independent research and development by ETON |
| X,Y,Z Axis drive way | High-end magnetic linear motor +Servo motor |
| Feeding way | Electric feeder with double motor |
Application
Apply to the electric board, LED flexible strip,power drive,tube,lens,etc.
Component: Min. size 0402 Max. height 15mm.
Application: Power drive,electric board,lens,DOB bulb,linear bulb,household appliance,etc.
About us

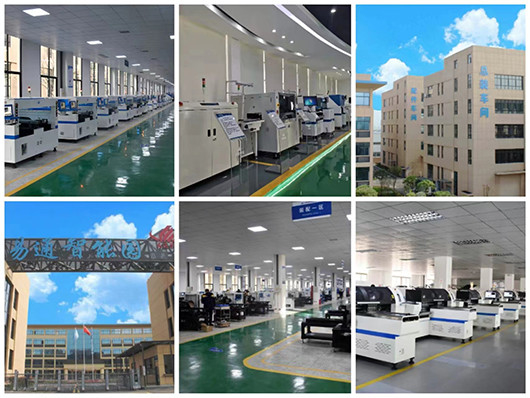

Industry Park: Located in Jiangxi province, China. So big area,it is more than 50,000 square meters.
Exhibition: Held Dometic and other countries, more than 20 countries abroad, many countries know ETON and use our machines.
Certification: Kinds of patent, invention patents: 9pcs, pratical patents:112pcs, softwear copyrights 12pcs
Customer's feedback: factory show and photos with machine.
ETON is your best partner!
What is SMT?
SMT means Surface Mount Technology. It is the most popular technology and process in the electronic assembly industry. It is a circuit assembly technology that mounts the surface mount components without leads or short leads on the surface of the printed circuit board or the surface of other substrates, and then solders and assembles them by reflow soldering or dip soldering.
FAQ
1.Do you provide the complete production line machine?
Yes, of course. We provide the whole production line machine, including solder paste printer machine, conveyor, pick and place machine reflow oven.
2.How about the operating software?
Our software is R&D independently by ourselves.
3.What about the mode of transport?
Both sea, air and road are OK.
4.How about the operation software language of the machine?
Our software are Independent R&D by ourselves with 2 language( English and Chinese).
5.What’s the terms of payment?
T/T is OK. You can choose FOB Shenzhen.
