Product Details:
Payment & Shipping Terms:
|
| Warranty: | 1 Year | Name: | SMT Pick And Place Machine |
|---|---|---|---|
| Application: | SMT Mounting Shooter Machine | Power Supply: | 380AC 50HZ |
| Condition: | New | Weight: | 1700kg |
| Mounting Speed: | 180000CPH | Dimension: | 2700*2300*1550mm |
| Feeders: | 34 |
Product Description

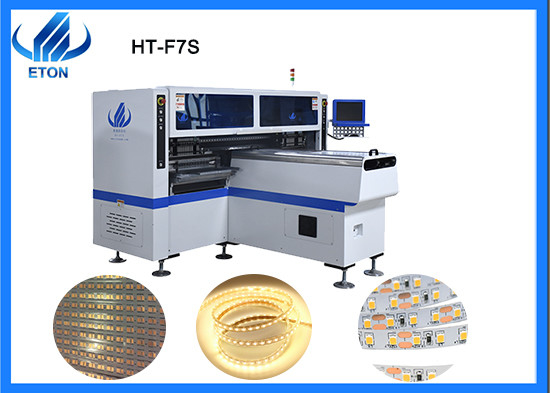

F7S is dual-arm professional high speed mounter, 2~4 type of materials capacity reach 180000CPH. Apply to the 0.6M,0.9M,1.2M rigid PCB and 0.5M,1M LED flexible strip . Producing with 2~4 types of materials with high capacity , available for board with any proportion of LED chip and resistor.
Specification
| Model | HT-F7S |
| Length | 2700mm |
| Width | 2300mm |
| Height | 1550mm |
| Total Weight | 1700kg |
| PCB size(L* W) | 1200*330mm Min；100*100mm |
| PCB Thickness | 0.5-5mm |
| PCB Clamping | Adjustable pressure pneumatic |
| Mounting mode | Group to take and group to mount |
| System | Windows 7 |
| Software | R&D Independently |
| Display | Touch screen monitor |
| Input Device | Keyboard, mouse |
| No.of camera | 5 sets Digital camera(Digital camera) |
| Components | LED3014/3020/3528/5050,capacitors,resistors,bridge rectifiers etc |
| No.of feeders station | 68PCS |
| No.of nozzles | 34PCS |
Company profile
(1)Shenzhen ETON automation equipment CO.,Ltd. was founded in 2011 and Jiangxi Intelligent industrial Park was used in 2020. So far, ETON has more than 11 years experience.
(2)ETON is the leading manufacturer of global photoelectric high speed pick and place machine and enjoys a good reputation around the world.
(3)The produces have exported more than 20 countries and regions, including Egypt, India,Turkey, Russia, Brazil, South Africa and so on.
(4)ETON has five level management policy:sincere business, focus on R&D, manufacturing intentions, considerate service, customer trust.
Production
ETON is a manufacturing and process solution provider focusing on R&D, production, sales and service of SMT high-speed pick and place machine and SMT peripheral automation equipment.
Three series pick and place machine
(1)multi-function pick and place machine:
apply for all kinds of products, including electric board, power driver, display, bulb, DOB, down light and so on.
(2)high-speed pick and place machine:
Apply for linear products, including tube, 1M, 5M, 10M or any length of LED flexible strip, the fastest mounting speed reach 500000 CPH
(3)SMT peripheral automation equipment:
loader, stencil printer, conveyor, reflow oven unloader, translational conveyor and so on.
FAQ
1. Does the price include the feeders or nozzles?
No, the price only includes the smt machine. Feeders and nozzles need to be purchased according to customer demand.
2. Do you only provide smt machine?
We not only provide smt pick and place machine, but also provide smt peripheral equipment, including stencil printer, conveyor, reflow oven, loader&unloader, stocking conveyor, SPI, AOI etc.
3. What the products does the machine produce?
SMT machine is apply to all kinds of products, such as DOB, led bulbs, Led tube, strip lights, panel light, spot light, down lights, lens, electric board, power driver etc.
4. How is the package?
We use wooden box package according to the international standard.
5. What are the terms of payment?
We usually use EXW Shenzhen.
