Product Details:
Payment & Shipping Terms:
|
Warranty: | 1 Year | Name: | SMT Pick And Place Machine |
---|---|---|---|
Power Supply: | 380AC 50HZ | Condition: | New |
Weight: | 1700kg | Mounting Speed: | 80000cph |
Dimension: | 2788*1686*1375mm | Pcb Thickness: | 0.5-4.5 Mm |
Machine main features
Product Parameters

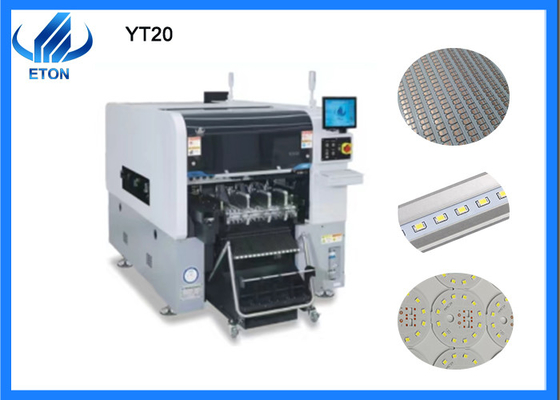

Model | YT20 |
Length | 2788mm |
Width | 1686mm |
Height | 1375mm |
Total Weight | 1700kg |
PCB size(L* W) |
Max size:500mm*450mm(single PCB) 500mm*300mm(double PCB) Min size:50mm*50mm |
PCB Thickness | 0.5-4.5mm |
PCB Clamping | Cylinder clamping, track width adjustable |
Mounting mode | Group picking and separately placing,separately picking and separately placing |
System | Windows 7 |
Software | R&D Independently |
Display | Touch screen monitor |
Input Device | Keyboard, mouse |
No.of camera | 4 sets Digital camera |
Components | Min 0201~40*40mm Tape reel packages and IC tray feeder etc. |
No.of feeders station | Double side docking cart slot 32PCS,tape reel packages:64PCS |
No.of nozzles | Double side:20pcs(single side:10pcs) |
Sales Service
We can provide SMT whole production line solution.
Local engineer in India,Egypt, Turkey,which can provide you with the greatest convenience. such as quick free installation and Training.
One year for warranty.
Two regular visits custmer one year.
Free Software Upgrade: Offer free software upgrade whole lifetime.
Company show
ETON over 10 years experience in SMT machines, have 52000 square meters industry park, professional R&D team and sales team; It is worth mentioning that stronger manufacturing capacity. Cause we have enough mechanical equipment, Experienced staff and engineer, get great support. Ensure the machine is high quality.
FAQ
Q: How can you make sure that the products won’t be damaged or wet?
A: We take multiple measures to protect the products. They are first packing with individual. We put them into a carton and wrapped with plastic film and sealed with tape to keep the cartons in position and protect them from water.
Q: How is the breakdown rate of machine?
A: our machine is very stable,the breakdown rate is less than 0.001.
Q: When is the delivery date?
A: Delivery within 30 days after payment.
Q: Does your company have any other machines?
A: Yes, we are a professional manufacturer of SMT placement machines. In addition to board loading machines, our company also has semi-automatic printing machines, placement machines, reflow soldering, connection stations, conveyor belts and other SMT production line equipment.
Q: Does your machines have quality certificates?
A: We are high-tech enterprise with CE, SIRA, CCC , ISO awarded as "Well-know brand" and many technology patents, and have rich experience (more than 10 years) in LED light production line program.
