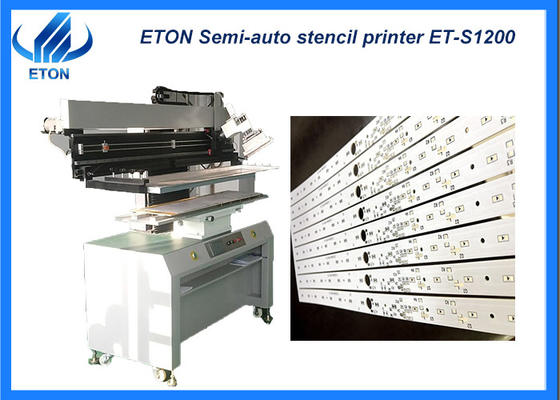

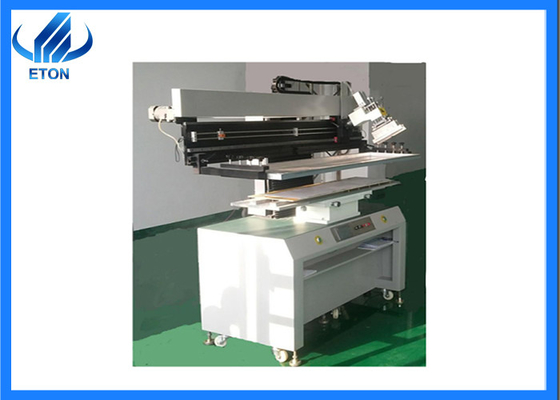

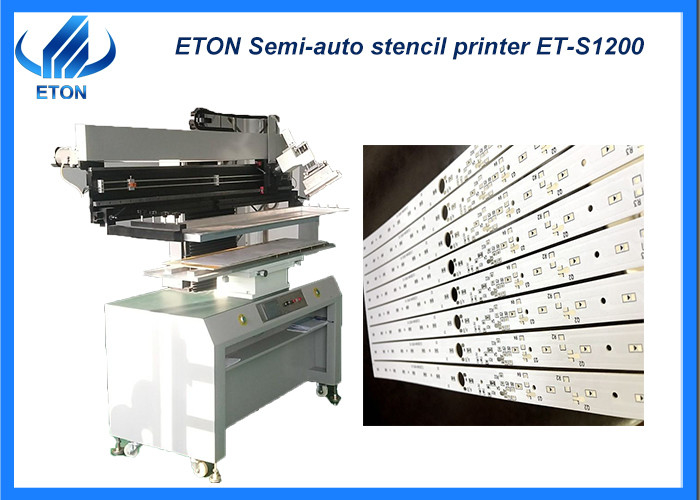

Intelligent XYZ calibration adjustment 0.2-2.0 mm SMT printer
Description
The printing machine is a very important preparation for SMT production, preparing for subsequent mounting of components and reflow soldering. Function: to print the solder paste on the PCB board in preparation for soldering.
Specifications:
| Model |
ET-S1200 |
| PCB size |
1200×300 mm |
| Plate Area |
1250×320 mm |
| Stencil Frame Size |
470×370 mm～1300×550 mm (L×W) |
| Positioning way |
positioning pin |
| Scraper Speed |
0-100 mm/sec |
| Power |
220V single phase, 50/60 HZ |
| Power Consumption |
120 W |
| PCB plate thickness |
0.2-2.0 mm |
| Plate Trimming |
Front/back +/- 10mm Right/Left +/- 10mm |
| Printing Precision |
+/- 0.05 mm |
| Air supply |
5-7 KGF/cm2 |
| Weight |
360 kg |
| Dimension |
(L)1600 x(W)900 x(H)1650 mm |
Features:
- The governor motor drive scraper, combining precision linear guide, ensure the printing precision;
- Printing scraper can rotate 45 degrees of fixed upwards, printing plate and scraper cleaning and replacement;
- The scraper holder can adjust forward and backward, to select the suitable printing position;
- Combined printing platen, has a fixed groove and positioning PIN, easy installation and adjustment, it is used for single and double panel printing;
- Steel bar-mesh mobile school edition way, combined with the printing machine (PCB) XYZ calibration adjustment, convenient and quick.
- Can be set unidirectional and bidirectional multiple printing methods.
Our advantage
ETON is the pioneer of SMT machine field in China which have more than 11 years experiences. And owned CCC, SIRA, CE certificates with 9 invention patents, 112 practical patents, 12 software copyrights of intellectual property technologies.
Oversea market:The products exported to more than 30 countries and regions, including South Korea, India, Vietnam, Tunisia, Egypt,Turkey, Russia, Brazil etc.
Market
Our products had exported to more than 30 countries and regions, including South Korea, India, Vietnam, Tunisia, Egypt,Turkey, Russia, Brazil etc. And here are some of our big customers:
SURYA, POLYCAB, FIEM, RK, GK, TECHNO LED, CALCOM, ACK , KENDAL, RangDong, UNISTAR, and so on.
Packages
Step 1: Packing in film package to prevent dust and water to the machine
Step 2: Packing in foam cotton to protect the outside of the machine
Step 3: Packing in vacuum package to keep dry of the machine during transportation
Step 4: Transportation by truck to specified port
Shipping and Delivery
Shipping Way:
※ By air, for sample and small package
※ By sea, for large package and quantity;
※ Other ways as customer requested.
Delivery Time:
※ Within 30 Days.
