Product Details:
Payment & Shipping Terms:
|
Application: | LED Lights, Electrical Products, Household Appliance | Power Supply: | 380AC 50HZ |
---|---|---|---|
Condition: | New | Weight: | 360kg |
Dimension: | (L)1600 X(W)900 X(H)1650 Mm | Warranty: | 1 Year |
Model: | 1200*300MM |

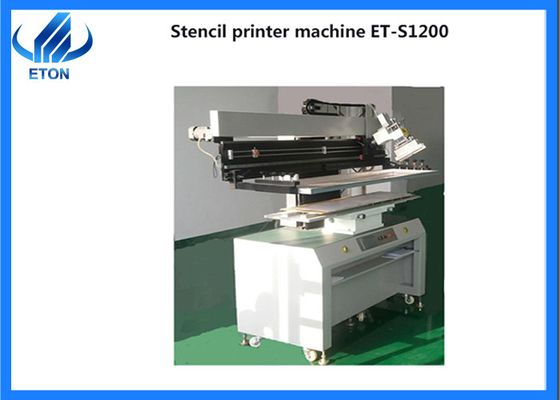

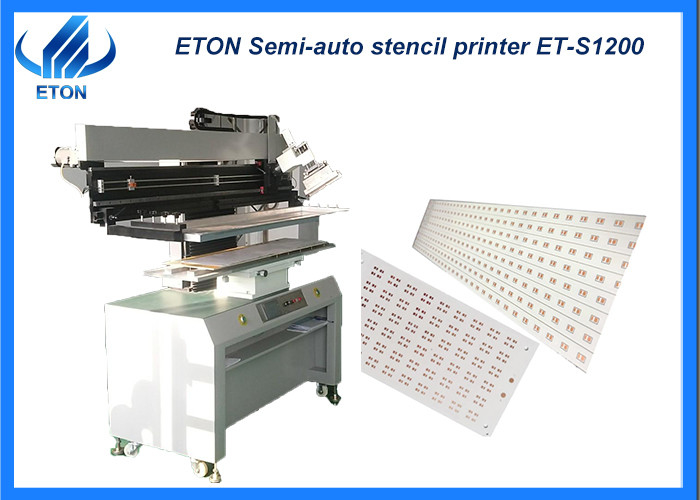

Solder paste 1200*300 mm SMT production line 360kg printer
Description
The printing machine is a very important preparation for SMT production, preparing for subsequent mounting of components and reflow soldering. Function: to print the solder paste on the PCB board in preparation for soldering.
Specifications:
Model | ET-S1200 |
PCB size | 1200×300 mm |
Plate Area | 1250×320 mm |
Stencil Frame Size | 470×370 mm~1300×550 mm (L×W) |
Positioning way | positioning pin |
Scraper Speed | 0-100 mm/sec |
Power | 220V single phase, 50/60 HZ |
Power Consumption | 120 W |
PCB plate thickness | 0.2-2.0 mm |
Plate Trimming | Front/back +/- 10mm Right/Left +/- 10mm |
Printing Precision | +/- 0.05 mm |
Air supply | 5-7 KGF/cm2 |
Weight | 360 kg |
Dimension | (L)1600 x(W)900 x(H)1650 mm |
Features:
SMT Line solution
The SMT production line has two schemes: semi-automatic and fully automatic line. If you are just starting to do it, I suggest you do a semi-automatic production line, which can effectively save your cost.
Certificates
As an experienced manufacturer in SMT machine, we obtained a number of intellectual property technologies, including 9 invention patents, 112 practical patents, 12 software copyrights, with our won R&D department for production and inspection. And also earned the oversea certificates as CE, CCC, SIRA,
etc.
Our Exhibitions
Participate in various exhibitions at home and abroad every year (except during the epidemic period)
Domestic exhibitions: Guangzhou Guangya Exhibition, Shanghai Munich Exhibition, Chongqing LED Light Exhibition, etc.
Foreign exhibitions: India Mumbai Exhibition, India Delhi Exhibition, Egypt Exhibition, Turkey Exhibition, Pakistan Exhibition, Thailand Exhibition, etc.
Service
Pre-sale service
Provide suitable production plan
Advise on plant electrical equipment and layout
Sale service
Report machine status in time
Follow up and send test machine video
After-sales service
Software lifetime upgrade
24 hours to deal with problems online
Engineers can arrive on site to teach operation and debug the machine
Regular visit (one year warranty period, spare parts repair free; Once or twice a year after warranty)
Related machine
We can provide a whole SMT production line,led light production line:
1.Pick and place machine
2. Loader machine
3. Conveyor machine
4. Stencil printer machine
5. Reflow oven machine
6. Unloader machine
7. Solder paste mixer
8. Roll to roll led strip light assembly machine
