Warranty: | 1 Year | Name: | SMD Chip Mounter,SMT Pick And Place Machine |
---|---|---|---|
Application: | SMT Production Line | Mounting Speed: | 150000-180000 CPH |
Type: | Automatic | Local Service: | India, Egypt, Vietnam |
Brand: | ETON | Power Supply: | 380AC 50HZ |

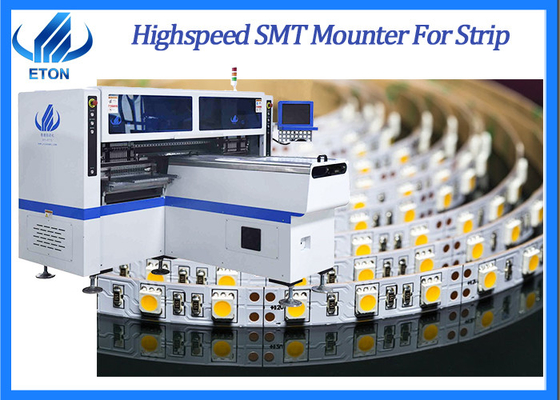

Highspeed SMT mounting machine HT-F7S 180K for Strip light pick and place machine
Machine's Production
Dimension
|
|
Length
|
2700mm
|
Width
|
2300mm
|
Height
|
1550mm
|
Total Weight
|
1700kg
|
PCB
|
|
PCB Length Width
|
Max:1200*330mm Min:100*100mm
|
PCB Thickness
|
0.5-5mm
|
PCB Clamping
|
Adjustable pressure pneumatic
|
Mounting Mode
|
Group picking and separately placing
|
No. of Camera
|
5 sets ( Digital camera)
|
|
Vision alignment, MARK correction
|
Repeat Mounting Precision
|
±0.02mm(Repeat precision)
|
Mounting Height
|
≦5mm
|
Mounting Speed
|
150000~180000 CPH
|
Components
|
LED 3014/ 3020/ 3528/ 5050 and capacitors, resistors, bridge rectifiers, etc.
|
Components Space
|
0.5mm
|
Power
|
380AC 50 HZ
|
Power Consumption
|
6kw
|
Application
1.Suitable for mounting many kinds of products, such as LED tube, panel, down-light, Solar lamps, wall lamps, ceiling lamps, street lamps, table lamps and linear lamps.
2.Can mount 0.6m, 0.9m, 1.2m hard light board, 0.5m, 1m soft light strip.
3.Components: LED 3014/3020/3528/5050 and resistor, capacitors, bridge rectifiers.
Exhibitions
Our company participates in many exhibitions at home and abroad every year,
You will see ETON's booth in some well-known large-scale exhibitions in China, including large-scale exhibitions held in Shenzhen, Guangzhou, Chongqing, Shanghai and other places.
Foreign exhibitions include exhibitions in more than 20 countries including Mumbai, Delhi, Egypt, Turkey, and Vietnam.
After service
1.One-year warranty period. During the warranty period, any parts that need to be repaired or replaced are free of charge.
2.As long as you purchase our machine, you can enjoy lifetime free software upgrade privileges. We will visit customers regularly to collect feedback information.
3.Our technical staff will provide you with online technical support services 24 hours a day.
4.We have offices in New Delhi and Mumbai, India, and can arrange engineers to install, test, and train machines for you for free.
5.In addition, we also have local engineers in Turkey and Egypt, who can provide you with technical support.
