| Warranty: | 1 Year | Name: | SMD Chip Mounter,SMT Pick And Place Machine |
|---|---|---|---|
| Application: | SMT Production Line | Mounting Speed: | 150000-180000 CPH |
| Type: | Automatic | Local Service: | India, Egypt, Vietnam |
| Brand: | ETON | Power Supply: | 380AC 50HZ |

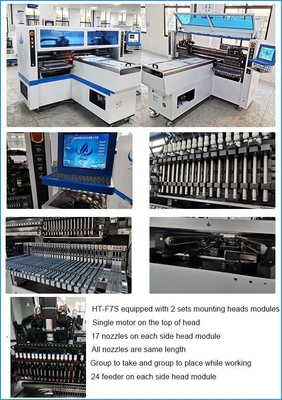

Highspeed SMT mounting machine HT-F7S 180K for Strip light pick and place machine
Machine's Production
|
Dimension
|
|
|
Length
|
2700mm
|
|
Width
|
2300mm
|
|
Height
|
1550mm
|
|
Total Weight
|
1700kg
|
|
PCB
|
|
|
PCB Length Width
|
Max:1200*330mm Min:100*100mm
|
|
PCB Thickness
|
0.5-5mm
|
|
PCB Clamping
|
Adjustable pressure pneumatic
|
|
Mounting Mode
|
Group picking and separately placing
|
|
No. of Camera
|
5 sets ( Digital camera)
|
|
|
Vision alignment, MARK correction
|
|
Repeat Mounting Precision
|
±0.02mm(Repeat precision)
|
|
Mounting Height
|
≦5mm
|
|
Mounting Speed
|
150000~180000 CPH
|
|
Components
|
LED 3014/ 3020/ 3528/ 5050 and capacitors, resistors, bridge rectifiers, etc.
|
|
Components Space
|
0.5mm
|
|
Power
|
380AC 50 HZ
|
|
Power Consumption
|
6kw
|
Application
1.Suitable for mounting many kinds of products, such as LED tube, panel, down-light, Solar lamps, wall lamps, ceiling lamps, street lamps, table lamps and linear lamps.
2.Can mount 0.6m, 0.9m, 1.2m hard light board, 0.5m, 1m soft light strip.
3.Components: LED 3014/3020/3528/5050 and resistor, capacitors, bridge rectifiers.
Our company
Shenzhen ETON Automation Equipment Co., Ltd. is a high-tech enterprise with the concept of building a national brand, providing "professional, efficient, and low-consumption" products, focusing on R&D, production and sales of LED automatic high-speed energy-saving placement machines.
With the development trend of greening and energy saving, the rapid development of the LED industry and the requirements for production technology, YITONG and the United States, Taiwan, Hong Kong and many technical personnel, after four years of joint research, successfully developed a fast, stable and perfect ETON LED automatic high-speed energy-saving placement machine series products, with its unique technology, strong production capacity advantages, and perfect after-sales service system, completely subvert the LED placement machine industry field, and solve the problem of low production capacity of long light boards and long light strips. , High labor cost and other problems, and obtained a number of certificates and support issued.
While ETON has made great achievements in the LED field, it has also been committed to technological innovation and development in the SMT field, and has won wide recognition and good reputation in the market. Looking forward to the future, I believe that ETON will definitely achieve better results in the SMT field. , To make greater contributions to the industry and society.
FAQ
Q1: What is the payment method?
A: We support T/T payment.
Q2: When is the delivery time?
A: Delivery within 30 days after payment.
Q3: What is the shelf life?
A: 1 year warranty.
Q4: What are the main LED products our machines for?
A: There are different machines in our company and different machines apply to different LED lights. The main products we can apply:bulb tube strip lamp panel. Down light,streetlight,ceiling light.wall washer light and so on.
Q5: Do our machines only for LED lights?
A: No,our machines apply to not only LED light but also other products. Such as power driver, electric board, display, etc.
Q6: What components do our machines apply to?
A: Our machines can patch LED 3014/30202/2835/5050/5630/5730 etc.. capacitors, resistors,IC.shaped components and so on.
