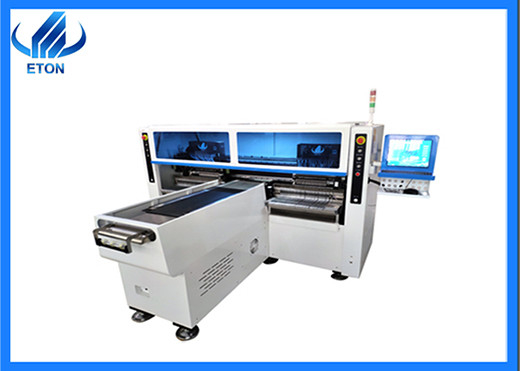

Feature
(1) Producing with 4 types materials at the same time with high capacity , available for 5M,5OM or any length of Flexible strip and Roll to Roll .
(2) Dual arm four module ,17 nozzles for each mounting part , part A or part B can be mounted separately or synchronously .
(3) Calibration automatically , high precision , available for RGB .
(4) Group to pick and group to mount.
Product Parameters
| Model |
HT-T9 |
| Length |
3100mm |
| Width |
2300mm |
| Height |
1550mm |
| Total Weight |
1700kg |
| PCB size(L* W) |
250mm*any length |
| PCB Thickness |
0.5-1.5mm |
| PCB Clamping |
Vacuum adsorption,cylinder clamping, track width adjustable |
| Mounting mode |
Group to take and group to mount |
| System |
Windows7 |
| Software |
R&D Independently |
| Display |
Touch screen monitor |
| Input Device |
Keyboard, mouse |
| No.of camera |
5setsDigital camera(Digital camera) |
| Components |
LED3014/3020/3528/5050,capacitors,resistors,bridge rectifiers etc |
| No.of feeders station |
68PCS |
| No.of nozzles |
68PCS |
| Power |
380AC 50HZ |
| Operating environment |
23℃±3℃ |
| Conveyor transmission |
Max Length:1000mm |
| Transmission speed |
>500mm/sec |
| Transmission direction |
Single |
| Transmission mode |
Online drive |
| Position mode |
Optical |
| Air supply |
0.4-0.6mpa(4-6kgf/cm )150N/min |
| Electrical control |
Independent research and development by ETON |
| X,Y,Z Axis drive way |
High-end magnetic linear motor +Servo motor |
| Feeding way |
Electric feeder with double motor |
ETON Profile
Shenzhen ETON Automation Equipment CO., LTD. is one of very few high-tech manufacturers committed to provide "professional, high efficiency, low consumption" automatic high-speed SMT pick and place machine for customers,combining product development,production,sales and service as one. At present,as for the series "HT" high-speed and multi-functional machine,speed is the world's fastest. "Speed" and "Stability" are the core competencies of ETON,technology innovation and strict quality management principles coupled with excellent service , to enable us provide better professional full SMT solution continously and create superior value for our customers.
Certification
ETON obtains a number of intellectual property technologies, including 9 invention patents, 112 Practical patents, 12 software copyrights.ETON is rated as"Shenzhen high-tech enterprise" "Guangdong high-tech enterprise" "China high- tech enterprise""Shenzhen TOP Brand" "2015 LED Technology Innovation Award" "The 4th China LED First Innovation Award" "Industry Special Contribution Award" etc.
FAQ
Q. What is your actual speed of your products?
A. For the actual speed of the machine which is constrained by many factors, that related to the number of the components, the time to send PCB board and receive the board, etc. And is decide for the actual products and needs.
Q.What is your merits of the machine to others production?
A. Initially, we have a strong R&D department for studying our productions, and our clients can enjoy free up-grade of the machine to get latest information about technology and equipment, besides, we have a 52000 square meters industrial park to serve the production, assembly, and commissioning of our machines.
