Product Details:
Payment & Shipping Terms:
|
| Weight: | 700KG | Usage: | Tube Printer |
|---|---|---|---|
| Voltage: | 220V 50/60Hz 100W | Condition: | New |
| Plate Type: | Screen Printer | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
| Automatic Grade: | Automatic | Dimensions(l*w*h): | 1240(L)X1450(W)X1650(H)mm |
| Warranty: | 1 Year |

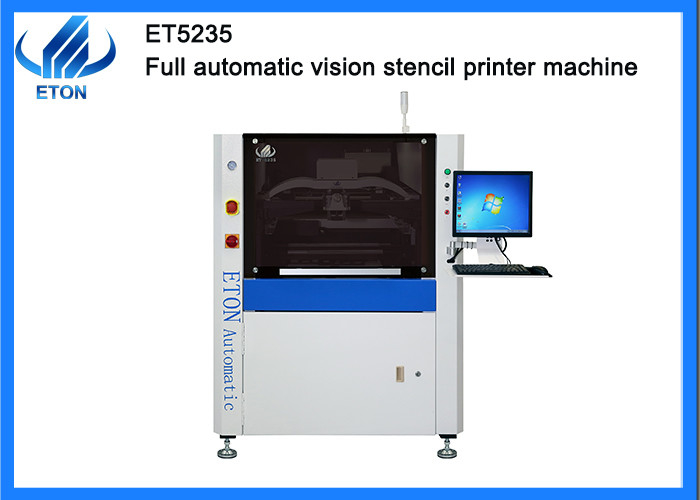

Product Description
Related machine
We can provide a whole SMT production line,led light production line:
1.Pick and place machine
2. Loader machine
3. Conveyor machine
4. Stencil printer machine
5. Reflow oven machine
6. Unloader machine
7. Solder paste mixer
8. Roll to roll led strip light assembly machine
Technical parameter
| Screen Frames max size | 737mm |
| Screen Frames min size | 470mm |
| Screen Frames thickness | 25~40mm |
| PCB size(L* W) |
Max size:520mm*350mm Min size:50mm*50mm |
| PCB Thickness | 0.6-6mm |
| PCB warpage | ＜1%(Max PCB diagonal) |
| Transport height | 900±20mm |
| Transport direction | Left-Right; Right-Left; Left-Left; Right-Right |
| Transport speed | Max 1200mm/s Programmable |
| Squeegee pressure | 0~10kg/cm |
| Squeegee angle | 55℃Standard |
| Squeegee type | Steel scraper(Standard),PV scraper(Option) |
| Stencil separation speed | 0.1~20mm/sec Programmable |
| Cleaning system | Dry,Wet,Vacuum (Programmable) |
| Table adjustment ranges | X:±5mm;Y:±5mm;θ:±2 |
| Printing accuracy | ±0.025mm |
| Cycle time | ≤9s (Exclude printing & cleaning) |
| Product changeover | <5Min |
| Air required | 2 |
| Power input | 4.5~6kg/cm |
| Control method | AC:220±10%,50/60HZ 1Φ3KW |
| Dimension | PC control |
| Weight | 1240(L)×1450(W)×1650(H)mm |
| PCB transfer overhead height | 10mm |
FAQ
1. Do you have oversea after sale service?
We can offer technical support abroad. If you have any technical problem, our engineers
will support you promptly.
2. How is the training?
After buying our machines, you can send your engineers to our factory, or we send our
engineer to your factory, and then we will train your people to operate these machines.
3. It’s hard to use the machine?
No, not at all. For our previous clients, at most 5 days is enough to learn to operate the
machines.
4. What’s the payment term? What about the trade term?
T/T is OK. You can choose FOB Shenzhen
