Product Details:
Payment & Shipping Terms:
|
| Warranty: | 1 Year | Name: | SMT Pick And Place Machine |
|---|---|---|---|
| Weight: | 2500KG | Power Supply: | 380AC 50HZ |
| Applicable Components: | LED Chip、capacitors、resistors、IC、shaped Components、etc. | Dimension: | 3150*2250*1650mm |
| Speed: | 90000CPH | Condition: | New |
Features
Product Application

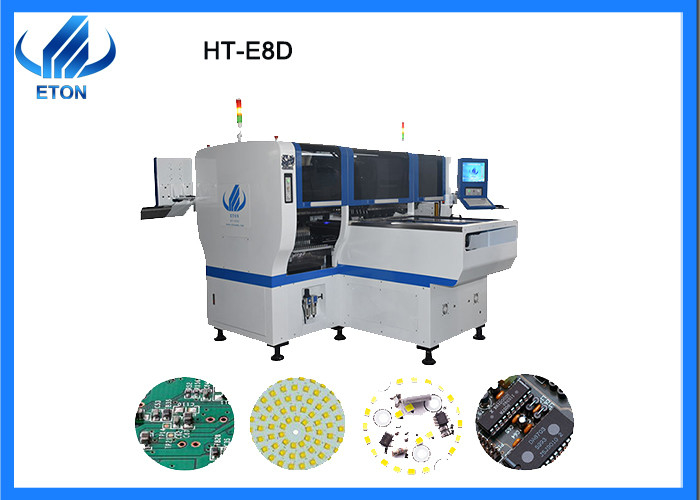

Full-automatic multi function pick and place machine for all kinds of components, IC RESISTORS CAPACITORS DIODE BRIDGE LENS and all shaped components. It can connect in series and placing the same PCB on line to improve the capacity. It has 8 mounting heads and can support 20pcs feeder station. Vision Flight, Non-stop refueling capabilities, Auto-optimization feature after coordinates generated.
Technical parameter
| Model | HT-E8D |
| Length | 3150mm |
| Width | 2250mm |
| Height | 1650mm |
| Total Weight | 2500kg |
| PCB size(L* W) | Max:1200*300mm Min；100*100mm |
| PCB Thickness | 05-5mm |
| PCB Clamping | Adjustable pressure pneumatic |
| Mounting mode | Group picking and separately placing,separately picking and separately placing |
| System | Windows7 |
| Software | R&D Independently |
| Display | Touch screen monitor |
| Input Device | Keyboard, mouse |
| No.of camera | 2setsDigital camera(Digital camera) |
| Components | LED chip,capacitors,resistors,IC,shaped components,etc. |
| No.of feeders station | 28PCS |
| No.of nozzles | 12PCS |
| Conveyor transmission | Max Length:1200mm |
| Electrical control | Independent research and development by ETON |
| X,Y,Z Axis drive way | High-end magnetic linear motor +Servo motor |
| Feeding way | Electric feeder with double motor |
SMT Line solution
The equipment required for the semi-automatic production line includes:
Semi-automatic printing machine: the solder paste is printed on the PCB pad through the stencil;
Pick and place machine: mount the led chips or other components on the designated position on the PCB board;
Reflow oven: melting the solder paste to make it adhere to the mounting components;
Conveyor: inspect the placement and soldering quality, and also play a role in transferring PCB boards and buffering on the SMT production line
FAQ
Q: Why choose us?
a: Best price & Best shipping & Best service
b: More than ten years of experience in research and development production and sales.
c:we have established overseas offices and local engineers in Egypt, Turkey, India,etc.
d: Patents: 9 invention patents, 12 software copyrights, 112 practical patents.
e: Free installation and training, software lifetime free upgrade,etc.
Q:Do you have offices and local engineers in overseas?
Yes, we have established offices and local engineers in Egypt, Turkey and India,etc
Q: This is the first time I use this kind of machine, is it easy to operate?
A: There is English manual or guide video that show you how to use machine. If you still have any question, please contact us by e-mail/ Skype/ phone/ wechat/ online service.
Q: What products you sell?
A: Our company deal in the following products:
SMT equipment and accessories: pick and place machine, stencil printer machine, glue dispenser, conveyor, feeders, SMT nozzles,etc.
Q: How about the quality of your products?
A: We have more than 10 years of experience in this industry, the quality of products is guaranteed, the products are popular at home and abroad, and have won the trust of many customers.
