Product Details:
Payment & Shipping Terms:
|
Warranty: | 1 Year | Name: | SMT Pick And Place Machine |
---|---|---|---|
Weight: | 1700kg | Power Supply: | 380AC 50HZ |
Dimension: | 2788*1686*1375mm | Speed: | 80000 |
Condition: | New | PCB Thickness: | 0.5~4.5mm |
Product Feature
Product Parameters

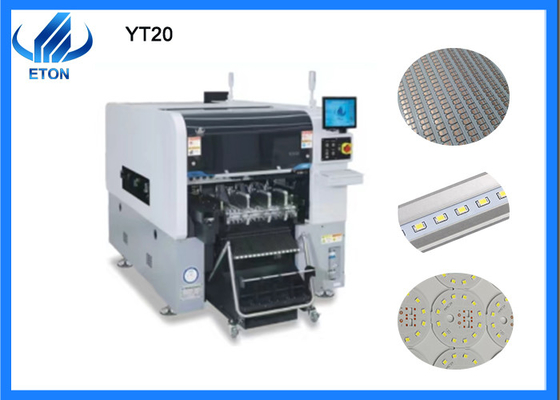

Model | YT20 |
Length | 2788mm |
Width | 1686mm |
Height | 1375mm |
Total Weight | 1700kg |
PCB size(L* W) |
Max size:500mm*450mm(single PCB) 500mm*300mm(double PCB) Min size:50mm*50mm |
PCB Thickness | 0.5-4.5mm |
PCB Clamping | Cylinder clamping, track width adjustable |
Mounting mode | Group picking and separately placing,separately picking and separately placing |
System | Windows 7 |
Software | R&D Independently |
Display | Touch screen monitor |
Input Device | Keyboard, mouse |
No.of camera | 4 sets Digital camera |
Components | Min 0201~40*40mm Tape reel packages and IC tray feeder etc. |
No.of feeders station | Double side docking cart slot 32PCS,tape reel packages:64PCS |
No.of nozzles | Double side:20pcs(single side:10pcs) |
Power | 380AC 50HZ |
Operating environment | 23℃±3℃ |
Conveyor transmission | Max Length:500mm |
Transmission speed | >500mm/sec |
Transmission direction | Single |
Transmission mode | Online drive |
Company profile
(1)Shenzhen ETON automation equipment CO.,Ltd. was founded in 2011 and Jiangxi Intelligent industrial Park was used in 2020. So far, ETON has more than 11 years experience.
(2)ETON also keep “no worries” after-sales service, and the products are supported to personal customization, specialist sale always track the production and transportation of equipment.
(3)ETON is the leading manufacturer of global photoelectric high speed pick and place machine and enjoys a good reputation around the world.
(4)The produces have exported more than 20 countries and regions, including Egypt, India,Turkey, Russia, Brazil, South Africa and so on.
(5)ETON has five level management policy:sincere business, focus on R&D, manufacturing intentions, considerate service, customer trust.
Service
High service efficiency, there is service office in India. Besides India, we also have local engineers in Egypt, Turkey. Can provide you with timely services.
Chinese engineers provide online services. If necessary, Chinese engineers will come to your factory for free install and training.
Quality First, Client-oriented, Continuous Improvement.
24 hours online for you to answer.
FAQ
1.Can I go and see if you have sold the equipment to India?
Yes, we have sold our machine in India, but for the fact we can't decide it for my customer, but I will try to contact my customer. Hope you can understand, because no one wants their competitors to visit their manufacturing site.
2.Can you accept CIFas the quoted price?
We only accept EXW as the quoted pricefor it is convenient and lower cost for both sides.
3.How many products can your machine make per day?
The capacity of our machine is according to the real products, and the number of components on your PCB board that is important factor to figure out the actual speed of our machine with your products.
4.Does your machines have quality certificates?
We are high-tech enterprise with CE, SIRA, CCC , ISO awarded as"Well-know brand" and many technology patents, and have rich experience(more than 11 years) in LED light production line program.
