Product Details:
Payment & Shipping Terms:
|
| Warranty: | 1 Year | Name: | SMT Pick And Place Machine |
|---|---|---|---|
| Power Supply: | 380AC 50HZ | Condition: | New |
| Weight: | 1700kg | Mounting Speed: | 180000CPH |
| Dimension: | 2700*2300*1550mm | Feeders: | 34 |
| Pcb Thickness: | 0.5~5mm |
Product Description

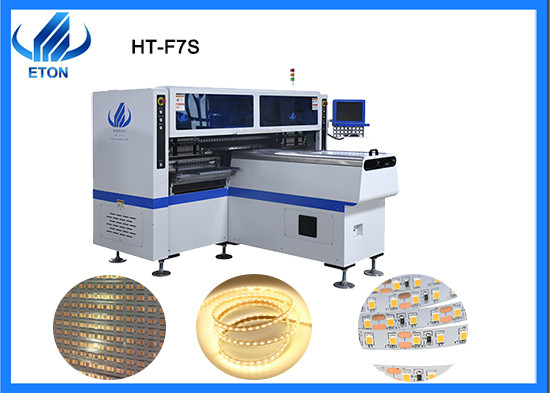

Technical parameter
| Length | 2700mm |
| Width | 2300mm |
| Height | 1550mm |
| Total Weight | 1700kg |
| PCB size(L* W) | 1200*330mm Min；100*100mm |
| PCB Thickness | 0.5-5mm |
| PCB Clamping | Adjustable pressure pneumatic |
| Mounting mode | Group to take and group to mount |
| System | Windows 7 |
| Software | R&D Independently |
| Display | Touch screen monitor |
| Input Device | Keyboard, mouse |
| No.of camera | 5 sets Digital camera(Digital camera) |
| Components | LED3014/3020/3528/5050,capacitors,resistors,bridge rectifiers etc |
| No.of feeders station | 68PCS |
| No.of nozzles | 34PCS |
| Power | 380AC 50HZ |
| Operating environment | 23℃±3℃ |
ETON company
Shenzhen ETON Automation Equipment Co.,Ltd. was founded in 2011. It is a manufacturing and process solution provider focusing on R&D, production, sales and service of SMT high-speed pick and place machines and SMT peripheral automation equipment. The company has SMT high-speed pick and place machine division, precision solder paste stencil printer division, high-speed precision dispensing equipment division, and SMT peripheral automation equipment division.

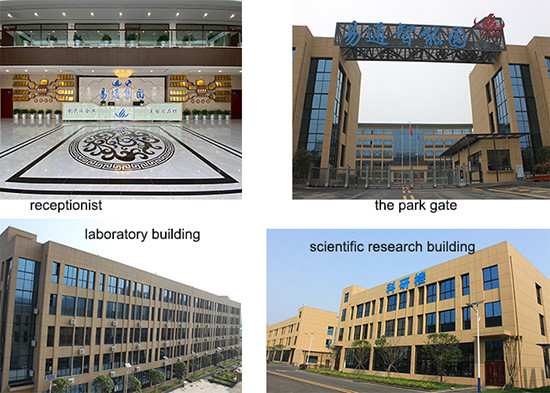

ETON Industrial Park
There is 50000 square meters modern intelligent Industrial parks , equipped with an advanced processing and manufacturing center
There are various types of machines , the fastest capacity reach 250000CPH, which is the fastest machine mounting speed in the world.
Certification
ETON obtains a number of intellectual property technologies, including 9 invention patents, 112 Practical patents, 12 software copyrights.ETON is rated as"Shenzhen high-tech enterprise" "Guangdong high-tech enterprise" "China high- tech enterprise""Shenzhen TOP Brand" "2015 LED Technology Innovation Award" "The 4th China LED First Innovation Award" "Industry Special Contribution Award" etc.
FAQ
1. Can I go and see if you have sold the equipment to India?
Yes, we have sold our machine in India, but for the fact we can't decide it for my customer, but I will try to contact my customer. Hope you can understand, because no one wants their competitors to visit their manufacturing site.
2. Can you accept CIFas the quoted price?
We only accept EXW as the quoted pricefor it is convenient and lower cost for both sides.
3. How many products can your machine make per day?
The capacity of our machine is according to the real products, and the number of components on your PCB board that is important factor to figure out the actual speed of our machine with your products.
4. Does your machines have quality certificates?
We are high-tech enterprise with CE, SIRA, CCC , ISO awarded as"Well-know brand" and many technology patents, and have rich experience(more than 11 years) in LED light production line program.
