Product Details:
Payment & Shipping Terms:
|
| Warranty: | 1 Year | Name: | SMT Pick And Place Machine |
|---|---|---|---|
| Power Supply: | 380AC 50HZ | Weight: | 3100kg |
| Mounting Speed: | 500000 | Dimension: | 3454*3035*1777mm |
| Pcb Thickness: | 0.1-0.5mm | Condition: | New |
Product Description
(1) Ultra - high - speed capacity. The placement head adopt the method of two times picking and once placing . The placement time greatly minimized with the improved placement way, excellent optimum capacity reach 500000CPH.
(2) The distance of feeder station can be flexibly adjusted to achieve group picking and group placing , so as to realize the function of two time picking and once placing .
(3) Flight recognition camera,no pause to detect the presence or absence of components,component adsorption state,prevent placement errors.
(4) Automatic production with identification data,correction and fill missing component automatically.
Technical parameter

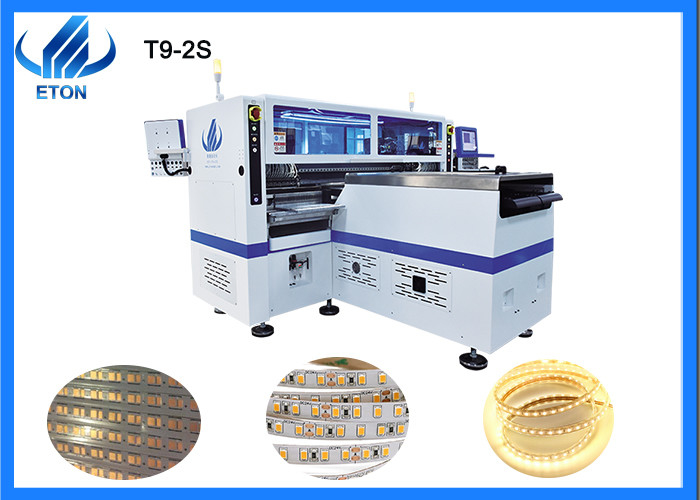

| Model | T9-2S |
| Outline Dimension | 3454*3035*1777mm |
| PCB size(L* W) | 250mm*any length |
| Mounting mode | Group to take and group to mount |
| No.of camera | 10set |
| Components | LED3014/3020/3528/5050,capacitors,resistors,bridge rectifiers etc. |
| No.of feeders station | Double side:136PCS(single side:68PCS) |
| No.of nozzles | Double side:136PCS(single side:68PCS) |
| Conveyor transmission | 1000mm Max Length:1000mm |
| Electrical control | Independent research and development by ETON |
| X,Y,Z Axis drive way | High-end magnetic linear motor +Servo motor |
| Feeding way | Electric feeder with double motor |
Company introduction
Shenzhen ETON Automation Equipment Co.,Ltd. was founded in 2011. It is a manufacturing and process solution provider focusing on R&D, production, sales and service of SMT high-speed pick and place machines and SMT peripheral automation equipment. The company has SMT high-speed pick and place machine division, precision solder paste stencil printer division, high-speed precision dispensing equipment division, and SMT peripheral automation equipment division.
ETON is the leading manufacturer of global optic electronic high speed pick and place machine,the products are exported to more than 20 countries and regions, including South Korea,India,Vietnam,Tunisia,Egypt,Turkey,Russia,Brazil etc.
ETON is not only in the leading position in the field of photoelectric high-speed placement machines, but also has made breakthrough progress in the field of SMT high-speed placement machines. It has successfully developed a variety of cost-effective SMT high-speed universal placement machines,which are widely used in lighting,LED display,electronics field,power drive, home appliances, new energy and other industries.
Related machine
We can provide a whole SMT production line,led light production line:
1.Pick and place machine
2. Loader machine
3. Conveyor machine
4. Stencil printer machine
5. Reflow oven machine
6. Unloader machine
7. Solder paste mixer
8. Roll to roll led strip light assembly machine
FAQ
Q: Why choose us?
a: Best price & Best shipping & Best service
b: More than ten years of experience in research and development production and sales.
c:we have established overseas offices and local engineers in Egypt, Turkey, India,etc.
d: Patents: 9 invention patents, 12 software copyrights, 112 practical patents.
e: Free installation and training, software lifetime free upgrade,etc.
Q:Do you have offices and local engineers in overseas?
Yes, we have established offices and local engineers in Egypt, Turkey and India,etc
Q: This is the first time I use this kind of machine, is it easy to operate?
A: There is English manual or guide video that show you how to use machine. If you still have any question, please contact us by e-mail/ Skype/ phone/ wechat/ online service.
Q: What products you sell?
A: Our company deal in the following products:
SMT equipment and accessories: pick and place machine, stencil printer machine, glue dispenser, conveyor, feeders, SMT nozzles,etc.
Q: How about the quality of your products?
A: We have more than 10 years of experience in this industry, the quality of products is guaranteed, the products are popular at home and abroad, and have won the trust of many customers.
