Windows 7 SMT Mounting Machine 20 Heads High Precision Placement Head

Windows 7 SMT Mounting Machine 20 Heads High Precision Placement Head
Windows 7 SMT Mounting Machine 20 Heads High Precision Placement Head Windows 7 SMT Mounting Machine 20 Heads High Precision Placement Head Windows 7 SMT Mounting Machine 20 Heads High Precision Placement Head Windows 7 SMT Mounting Machine 20 Heads High Precision Placement Head

Large Image :  Windows 7 SMT Mounting Machine 20 Heads High Precision Placement Head

Product Details:
Place of Origin: China
Brand Name: ETON
Certification: CCC, CE, SIRA
Model Number: YT20
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: vacuum package, wooden case
Delivery Time: 30 days
Payment Terms: T/T
Supply Ability: 50 sets/month
Detailed Product Description
Warranty: 1 Year Name: SMT Pick And Place Machine
Power Supply: 380AC 50HZ Condition: New
Weight: 1700kg Mounting Speed: 80000cph
Feeders: 20 Pcb Thickness: 0.5-4.5 Mm
High Light:

Windows7 SMT Mounting Machine

,

Touch screen SMT Mounter

,

20 Head SMT Mounting Machine

Product Description

Introduction

Brand:ETON

Model: ETON YT20

Specification:SMT PICK AND PLACE MACHINE

Condition:original

Quality:top quality

Stock:large

Payment:T/T before shipment

Shipment:on-time shipment

Warranty: 1 year

Delivery:fedex,ups,dhl,as required

Package:wooden case





Feature

  1. Brand new self - developed high - precision placement head .
  2. Combine high accuracy Mark recognition camera with fixed flight vision camera, ensure placement accuracy .
  3. The placement head adopt independent vacuum detection , improve placement performance .
  4. Off - line programming , save time of changeover cycle .
  5. Software Al intelligent learning function and automatic optimization function .
  6. Flexible PCB handling capabilities , double rail , both gantry can mount the same large PCB at the same time , realizing flexible production .



Product Parameters

Model YT20
Length 2788mm
Width 1686mm
Height 1375mm
Total Weight 1700kg
PCB size(L* W)

Max size:500mm*450mm(single PCB) 500mm*300mm(double PCB)

Min size:50mm*50mm

PCB Thickness 0.5-4.5mm
PCB Clamping Cylinder clamping, track width adjustable
Mounting mode Group picking and separately placing,separately picking and separately placing
System Windows 7
Software R&D Independently
Display Touch screen monitor
Input Device Keyboard, mouse
No.of camera 4 sets Digital camera
Components Min 0201~40*40mm Tape reel packages and IC tray feeder etc.
No.of feeders station Double side docking cart slot 32PCS,tape reel packages:64PCS
No.of nozzles Double side:20pcs(single side:10pcs)



Company profile
(1)Shenzhen ETON automation equipment CO.,Ltd. was founded in 2011 and Jiangxi Intelligent industrial Park was used in 2020. So far, ETON has more than 11 years experience.

(2)ETON also keep “no worries” after-sales service, and the products are supported to personal customization, specialist sale always track the production and transportation of equipment.
(3)ETON is the leading manufacturer of global photoelectric high speed pick and place machine and enjoys a good reputation around the world.
(4)The produces have exported more than 20 countries and regions, including Egypt, India,Turkey, Russia, Brazil, South Africa and so on.
(5)ETON has five level management policy:sincere business, focus on R&D, manufacturing intentions, considerate service, customer trust.

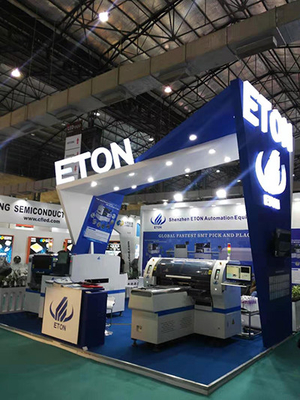

Exhibition
Foreig exhibition :
India Mumbai Exhibition , India Delhi Exhibition , Egypt Exhibition , Turkey Exhibition , Pakistan Exhibition , etc .
Domestic exhibition :
Guangzhou Guangya Exhibition , Shanghai Munich Exhibition , Chongqing LED Light Exhibition , etc .

Windows 7 SMT Mounting Machine 20 Heads High Precision Placement Head 0



After sales service
ETON as the biggest high speed pick and place machine in China, we are not only famous with high speed, but also famous with the good service . ETON set up office in different cities, like Shenzhen, Shanghai, Zhongshan, India, Egypt, etc.

If you buy our machine, we provide free install and training for you, will sent engineer to your factory to install and training.

One year warranty, during warranty, any parts need to be repaired and replaced will be free.

Free upgrade software, software is Reach and develop by ETON, so we support whole lifetime free upgrade updates.

Visit clients regularly. We attend different exhibition in different cities every year, at the same time, we will visit local clients and support our service and collect and feedback customer suggestions in time.
