Multi Functional SMT Mounter 45000 CPH 12 Heads Single Module Magnetic Linear Motor

Large Image : Multi Functional SMT Mounter 45000 CPH 12 Heads Single Module Magnetic Linear Motor

Product Details:

Place of Origin:	China
Brand Name:	ETON
Certification:	CCC, CE, SIRA
Model Number:	HT-E8S-1200
Document:	Product Brochure PDF

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Packaging Details:	vacuum package, wooden case
Delivery Time:	30 days
Payment Terms:	T/T
Supply Ability:	50 sets/month

Contact Now

Detailed Product Description

Warranty:	1 Year	Name:	SMT Pick And Place Machine
Application:	SMT Production Line	Power Supply:	380AC 50HZ
Condition:	New	Weight:	1700kg
Mounting Speed:	45000cph	Dimension:	255016501550mm
Highlight:	Multi Functional SMT Mounter , Single Module SMT Mounter , 45000 CPH SMT shooter

Product Production

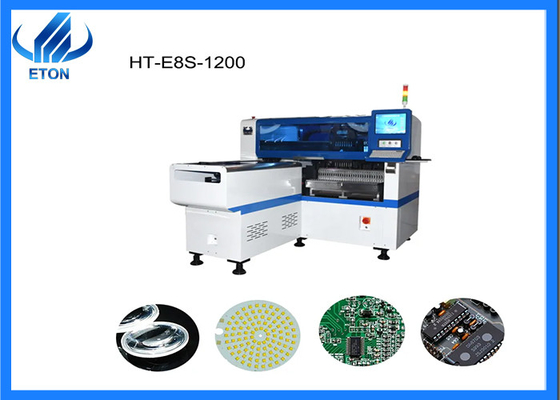

E8S is single module magnetic linear motor multifunctional pick and place machine. This machine is widely used at home and abroad and is well received by customers. It is a multi-function machine, used to mount a variety of products, such as a variety of lamps, drivers, displays, lenses, circuit boards and so on. Accurate recognition: flight recognition visual alignment, MARK correction. The size of the PCB is 1200*500, which is suitable for mounting various bulbs and lamps.

Exclusive patented technology

Electronic feeder feeding system
Vision alignment flight identification,Mark correction.
Non-stop material re-loading function.
Auto-optimization after coordinates generated,etc.

Technical parameter

Model	HT-E8S-1200
Dimension	255016501550mm
PCB size(L* W)	Max:1200500mm Min；100100mm
Mounting mode	Group picking and separately placing,separately picking and separately placing
No.of camera	2setsDigital camera(Digital camera)
Components	LED chip,capacitors,resistors,IC,shaped components,etc.
No.of feeders station	28PCS
No.of nozzles	12PCS
Conveyor transmission	Max Length:1200mm
Electrical control	Independent research and development by ETON
X,Y,Z Axis drive way	High-end magnetic linear motor +Servo motor
Feeding way	Electric feeder with double motor

About us
1.ETON has a more than 10 years history in the SMT machine industry.
2.ETON is the No. 1 brand of pick and place machines in China .
3.The fastest speed reaches 50000 CPH and the precision reaches 0201mm.
4.Provide free software update lifetime
5.we can provide a whole SMT production line
6.Has an industrial park of 52000 square meters that can be controlled the quality from the source

Market
As for the 11 years trade with more than 30 countries with our SMT high speed pick and place machine, we have come into business with many partners:

Package and delivery:
1.Standard export vacuum waterproof package
2.Strong wooden package for ensure safely delivery of heavy and large equipment
3.Delivery: By air, sea and railway.

Sales Service
We can provide SMT whole production line solution.
Local engineer in India,Egypt, Turkey,which can provide you with the greatest convenience. such as quick free installation and Training.
One year for warranty.
Two regular visits custmer one year.
Free Software Upgrade: Offer free software upgrade whole lifetime.
Company show
ETON over 10 years experience in SMT machines, have 52000 square meters industry park, professional R&D team and sales team; It is worth mentioning that stronger manufacturing capacity. Cause we have enough mechanical equipment, Experienced staff and engineer, get great support. Ensure the machine is high quality.
