Product Details:
Payment & Shipping Terms:
|
Warranty: | 1 Year | Application: | SMT Production Line |
---|---|---|---|
Power Supply: | 380AC 50HZ | Condition: | New |
Weight: | 2500KG | Mounting Speed: | 90000cph |
Dimension: | 3150*2250*1650mm | Feeders: | 24 |
High Light: | 4 Camera SMT Mounter,double module SMT Mounter,Double Module SMT Production Line |
Features
Technical parameter

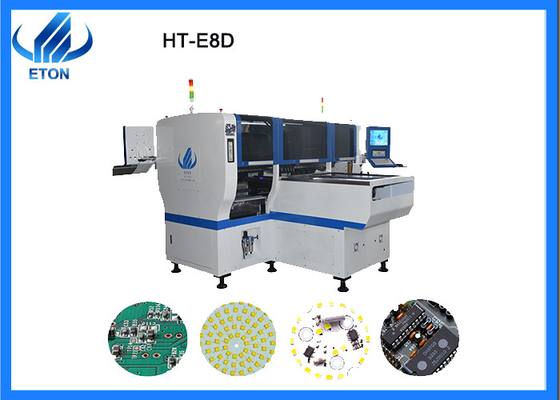

Model | HT-E8D |
Length | 3150mm |
Width | 2250mm |
Height | 1650mm |
Total Weight | 2500kg |
PCB size(L* W) | Max:1200*300mm Min;100*100mm |
PCB Thickness | 05-5mm |
PCB Clamping | Adjustable pressure pneumatic |
Mounting mode | Group picking and separately placing,separately picking and separately placing |
System | Windows7 |
Software | R&D Independently |
Display | Touch screen monitor |
Input Device | Keyboard, mouse |
No.of camera | 2setsDigital camera(Digital camera) |
Components | LED chip,capacitors,resistors,IC,shaped components,etc. |
No.of feeders station | 28PCS |
No.of nozzles | 12PCS |
Conveyor transmission | Max Length:1200mm |
Our advantage
We can provide SMT line solution for you!
Pick and place machine/reflow oven/stencil printer/pcb conveyor/SPI/AOI.etc
1.Light Factory for :led bulbs,DOB,lens,panel light,downlight,streetlight,tube,0.5m,1m strip light,etc.
2.Provide Overseas engineers for Free installation and free training.
3.TOP brand of China SMT machine manufacturer,500 employees for ETON
SMT placement machine failure analysis ideas
1 Detailed analysis of the working order of the smt placement machine and the logical relationship between them.
2. Understand the location, link and extent of the fault, and whether there is any abnormal sound.
3 Understand the operation process before the failure occurs.
4 Whether it occurs on a specific placement head and nozzle.
5 occurs on a specific device.
6 whether it happens on a specific batch.
7 Whether it happened at a particular moment.
FQA
Q1:Do you provide software updates?
For customers who buy our machine, we can offer free upgraded software for you.
Q2:Does our machine need air supply?
Yes, E8D needs air supply.
Q3:This is the first time I use this kind of machine, is it easy to operate?
We have English user manual and guide video to teach you how to use the machine. If you still have question, pls contact us by email/WhatsApp/phone etc for online service.
Q4:How about the warranty?
We have 1 years warranty for E8D with lifetime after-sale support.
Q5:How can I buy machine from you?
(1)Consult us on line or by e-mail;
(2)Negotiate and confirm the final price, shipping, payment method and other terms;
(3)Send you the proforma invoice and confirm your order;
(4)Make the payment according to the method put on proforma invoice;
