Product Details:
Payment & Shipping Terms:
|
| Weight: | 700KG | Condition: | New |
|---|---|---|---|
| Plate Type: | Screen Printer | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
| Automatic Grade: | Automatic | Warranty: | 1 Year |

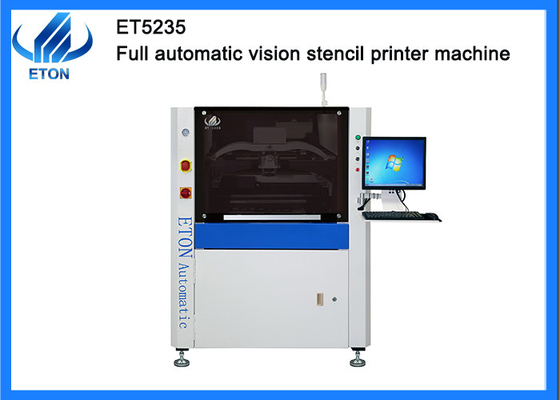

| Pcb Thickness: | 0.6~6mm | Name: | Automatic SMT Stencil Printer |
Machine feature
PCB Transport and Clamping system:the PCB loading direction can be selected and combined freely,unique crafted internal gear conveyor belt to prevent jamming, adopt flexible side clamps and segmented supports to effectively clamp the PCB to ensure a fully balanced contact between the PCB and the steel mesh
Scraper system: cast aluminum scarper beam to ensure smoother running of scarper, programmable suspension self-adjusting stepper motor drives print head,embedded scale, never fall of.
Operation interface: easy to learn and easy to use friendly operation interface, make program files with teaching and navigation functions, with prompts for each step,one key switch between Chinese and English,with operation log, fault record analysis and diagnosis and other functions
Image and optical system:X,Y axis adopts high-precision grinding ball screw, driven by servo motors at both side.
Technical parameter
| Screen Frames max size | 737mm |
| Screen Frames min size | 470mm |
| Screen Frames thickness | 25~40mm |
| PCB size(L* W) |
Max size:520mm*350mm Min size:50mm*50mm |
| PCB Thickness | 0.6-6mm |
| PCB warpage | ＜1%(Max PCB diagonal) |
| Transport height | 900±20mm |
| Transport direction | Left-Right; Right-Left; Left-Left; Right-Right |
| Transport speed | Max 1200mm/s Programmable |
| Squeegee pressure | 0~10kg/cm |
| Squeegee angle | 55℃Standard |
| Squeegee type | Steel scraper(Standard),PV scraper(Option) |
| Stencil separation speed | 0.1~20mm/sec Programmable |
| Cleaning system | Dry,Wet,Vacuum (Programmable) |
| Table adjustment ranges | X:±5mm;Y:±5mm;θ:±2 |
| Printing accuracy | ±0.025mm |
| Cycle time | ≤9s (Exclude printing & cleaning) |
| Product changeover | <5Min |
| Air required | 2 |
| Power input | 4.5~6kg/cm |
| Control method | AC:220±10%,50/60HZ 1Φ3KW |
| Dimension | PC control |
| Weight | 1240(L)×1450(W)×1650(H)mm |
| PCB transfer overhead height | 10mm |
Company show

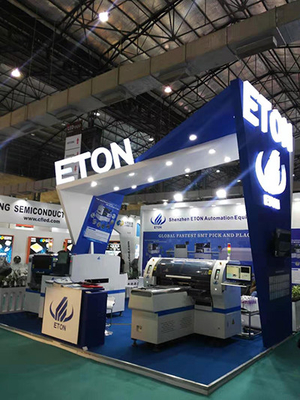

Exhibition
Every year, we will participate in various exhibitions at home and abroad. You will see the back of Eton in various large-scale exhibitions. However, in recent years, due to the epidemic, the exhibition activities have been cancelled. I hope to meet you at the exhibition after the epidemic is over.
Package
We have to pack in vacuum wooden cases to ensure the safety of the goods in the transportation process. Our packaging process is in the charge of professionals, and foreign trade salesmen track the delivery throughout the process
FAQ
Q:Why choose us?
A: We provide professional in SMT line for 11 years,with strong production and strong capacity and R&D team,Has provided a lot of clients with modern SMT production line solutions.
Q: What about the shipping methods?
A: A variety of transportation methods for you to choose. By sea, air and road.
Q: Do you have service office in India?
A: Yes, we have service office in Deli and Mumbai,and we have three India local engineers can support quickly.
Q: What is the mounting modeof your SMT machine?
A: Our multifunctional pick and place machine can group picking and separately placing or separately picking and separately placing, high-speed pick and place machine can group picking and group placing.
