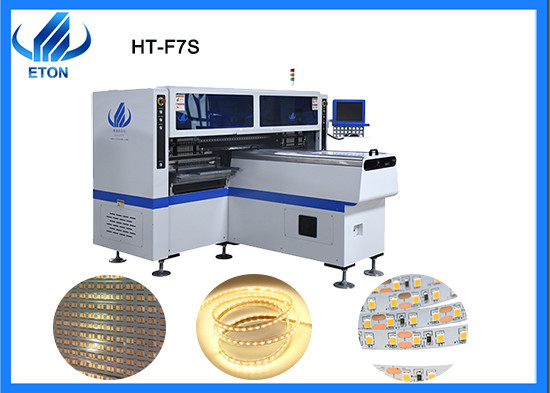

CCC rigid PCB and 0.5m, 1m, LED flexible strip dual arm high speed SMT Mounting Machine

CCC rigid PCB and 0.5m, 1m, LED flexible strip dual arm high speed SMT Mounting Machine
CCC rigid PCB and 0.5m, 1m, LED flexible strip dual arm high speed SMT Mounting Machine CCC rigid PCB and 0.5m, 1m, LED flexible strip dual arm high speed SMT Mounting Machine CCC rigid PCB and 0.5m, 1m, LED flexible strip dual arm high speed SMT Mounting Machine CCC rigid PCB and 0.5m, 1m, LED flexible strip dual arm high speed SMT Mounting Machine

Large Image :  CCC rigid PCB and 0.5m, 1m, LED flexible strip dual arm high speed SMT Mounting Machine

Product Details:
Place of Origin: China
Brand Name: ETON
Certification: CCC, CE, SIRA
Model Number: HT-F7S
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: vacuum package, wooden case
Delivery Time: 30 days
Payment Terms: T/T
Supply Ability: 50 sets/month
Contact Now
Detailed Product Description
Warranty: 1 Year Name: SMT Pick And Place Machine
Power Supply: 380AC 50HZ Condition: New
Weight: 1700kg Mounting Speed: 180000CPH
Dimension: 2700*2300*1550mm Feeders: 34
Pcb Thickness: 0.5~5mm

Features

  1. Apply to the 0.6M,0.9M,1.2M rigid PCB and 0.5M,1M LED flexible strip . Producing with 2~4 types of materials with high capacity , available for board with any proportion of LED chip and resistor .
  2. Two mounting modules ,18 nozzles for each mounting part , part A or part B can be mounted separately or synchronously .
  3. Calibration automatically , high precision , available for RGB .
  4. Exclusive patent technology: Group to take and group to mount.



Technical parameter

Length 2700mm
Width 2300mm
Height 1550mm
Total Weight 1700kg
PCB size(L* W) 1200*330mm Min；100*100mm
PCB Thickness 0.5-5mm
PCB Clamping Adjustable pressure pneumatic
Mounting mode Group to take and group to mount
System Windows 7
Software R&D Independently
Display Touch screen monitor
Input Device Keyboard, mouse
No.of camera 5 sets Digital camera(Digital camera)
Components LED3014/3020/3528/5050,capacitors,resistors,bridge rectifiers etc
No.of feeders station 68PCS
No.of nozzles 34PCS
Power 380AC 50HZ

Exhibition
Participate in various exhibitions at home and abroad every year (except during the epidemic period)
Domestic exhibitions: Guangzhou Guangya Exhibition, Shanghai Munich Exhibition, Chongqing LED Light Exhibition, etc.
Foreign exhibitions: India Mumbai Exhibition, India Delhi Exhibition, Egypt Exhibition, Turkey Exhibition, Pakistan Exhibition, Thailand Exhibition, etc.
CCC rigid PCB and 0.5m, 1m, LED flexible strip dual arm high speed SMT Mounting Machine 0

Our advantage
ETON is the pioneer of SMT machine field in China which have more than 11 years experiences. And owned CCC, SIRA, CE certificates with 9 invention patents, 112 practical patents, 12 software copyrights of intellectual property technologies.
Oversea market:The products exported to more than 30 countries and regions, including South Korea, India, Vietnam, Tunisia, Egypt,Turkey, Russia, Brazil etc.



After sales service

  • “No worries’’ after sale service concept: the Pearl River Delta region to arrive within 4 hours, day to solve; Guangdong Province 24 hours.
  • Maintenance period:1 year.
  • Visit customers regularly and gather information.
  • Provide latest information about technology and equipment.





Frequently Asked Questions

(1) What are the company's strengths?

The company is a dedicated SMT high - speed SMT machine research and development, production, sales and service manufacturer. ETON is a global leading brand of photoelectric high speed SMT machine and a pioneer enterprise of SMT machine in China.



(2) What if you have a usage problem after purchasing your company's product?

Don't worry about this, we will have trouble installing and using the training service.



(3) What should I do if I have a machine clap problem after use?

We uphold the "worry-free" after-sales service concept, we also have engineers abroad, can quickly come to repair for you.
