Product Details:
Payment & Shipping Terms:
|
| Warranty: | 1 Year | Name: | SMT Pick And Place Machine |
|---|---|---|---|
| Power Supply: | 380AC 50HZ | Condition: | New |
| Weight: | 3100kg | Mounting Speed: | 500000 |
| Dimension: | 3454*3035*1777mm | Feeders: | 136 |
| Pcb Thickness: | 0.1-0.5mm |
Technical parameter

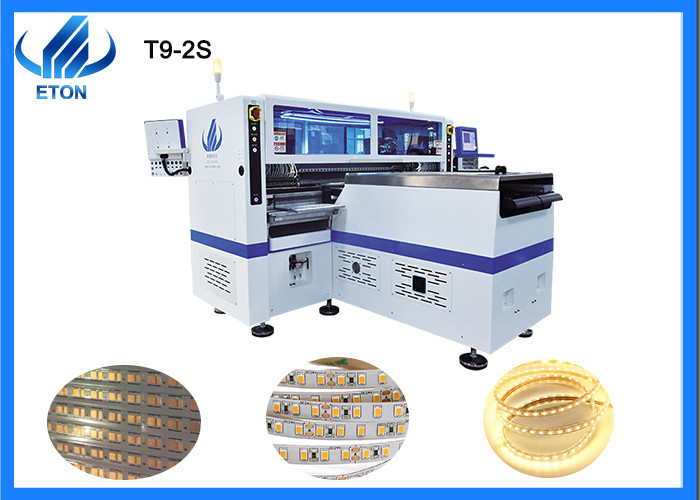

| Model | T9-2S |
| Outline Dimension | 3454*3035*1777mm |
| PCB size(L* W) | 250mm*any length |
| Mounting mode | Group to take and group to mount |
| No.of camera | 10set |
| Components | LED3014/3020/3528/5050,capacitors,resistors,bridge rectifiers etc. |
| No.of feeders station | Double side:136PCS(single side:68PCS) |
| No.of nozzles | Double side:136PCS(single side:68PCS) |
| Conveyor transmission | 1000mm Max Length:1000mm |
| Electrical control | Independent research and development by ETON |
| X,Y,Z Axis drive way | High-end magnetic linear motor +Servo motor |
| Feeding way | Electric feeder with double motor |
Features
(1) ETON tech adjustable placement head.
(2) Unique design component leaking detection and individual component refill function .
(3) Ultra - high - speed capacity. The placement head adopt the method of two times picking and once placing . The placement time greatly minimized with the improved placement way, excellent optimum capacity reach 500000CPH.
(4) The distance of feeder station can be flexibly adjusted to achieve group picking and group placing , so as to realize the function of two time picking and once placing .
(5) Flight recognition camera,no pause to detect the presence or absence of components,component adsorption state,prevent placement errors.
(6) Automatic production with identification data,correction and fill missing component automatically.
Company profile
(1)Shenzhen ETON automation equipment CO.,Ltd. was founded in 2011 and Jiangxi Intelligent industrial Park was used in 2020. So far, ETON has more than 11 years experience.
(2)ETON is the leading manufacturer of global photoelectric high speed pick and place machine and enjoys a good reputation around the world.
(3)The produces have exported more than 20 countries and regions, including Egypt, India,Turkey, Russia, Brazil, South Africa and so on.
(4)ETON has five level management policy:sincere business, focus on R&D, manufacturing intentions, considerate service, customer trust.
(5)ETON also keep “no worries” after-sales service, and the products are supported to personal customization, specialist sale always track the production and transportation of equipment.
Our advantage
We can provide SMT line solution for you!
Pick and place machine/reflow oven/stencil printer/pcb conveyor/SPI/AOI.etc
1.Light Factory for :led bulbs,DOB,lens,panel light,downlight,streetlight,tube,0.5m,1m strip light,etc.
2.Provide Overseas engineers for Free installation and free training.
3.TOP brand of China SMT machine manufacturer,500 employees for ETON
FAQ
Q. Does your machines have quality certificates?
A. We are high-tech enterprise with CE, SIRA, CCC , ISO awarded as "Well-know brand" and many technology patents, and have rich experience (more than 11 years) in LED light production line program.
Q. What is your actual speed of your products?
A. For the actual speed of the machine which is constrained by many factors,
that related to the number of the components, the time to send PCB board
and receive the board that will have influence on the speed when in production, and is decide for the actual products and needs.
Q. Can you accept CIF as the quoted price?
A. We only accept EXW as the quoted price for it is convenient and lower cost for both sides.
