Product Details:
Payment & Shipping Terms:
|
Warranty: | 1 Year | Name: | SMT Pick And Place Machine |
---|---|---|---|
Weight: | 2500KG | Power Supply: | 380AC 50HZ |
Dimension: | 3150*2250*1650mm | Speed: | 90000CPH |
Feeder: | 48PCS | Condition: | Brand-new |
Feature
SMT Line solution
The equipment required for the semi-automatic production line includes:
Semi-automatic printing machine: the solder paste is printed on the PCB pad through the stencil;
Pick and place machine: mount the led chips or other components on the designated position on the PCB board;
Reflow oven: melting the solder paste to make it adhere to the mounting components;
Conveyor: inspect the placement and soldering quality, and also play a role in transferring PCB boards and buffering on the SMT production line.
Technical parameter

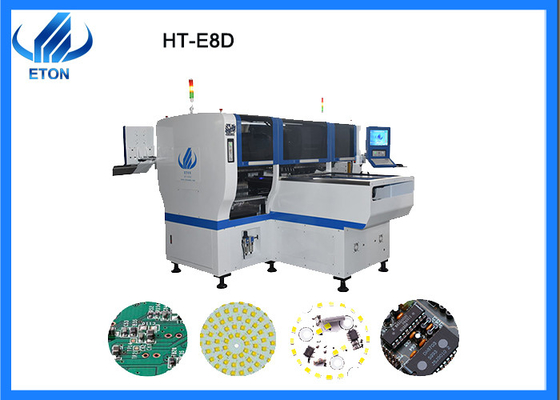

Model | HT-E8D |
Length | 3150mm |
Width | 2250mm |
Height | 1650mm |
Total Weight | 2500kg |
PCB size(L* W) | Max:1200*300mm Min;100*100mm |
PCB Thickness | 05-5mm |
PCB Clamping | Adjustable pressure pneumatic |
Mounting mode | Group picking and separately placing,separately picking and separately placing |
System | Windows7 |
Software | R&D Independently |
Display | Touch screen monitor |
Input Device | Keyboard, mouse |
No.of camera | 2setsDigital camera(Digital camera) |
Components | LED chip,capacitors,resistors,IC,shaped components,etc. |
No.of feeders station | 28PCS |
No.of nozzles | 12PCS |
Conveyor transmission | Max Length:1200mm |
Electrical control | Independent research and development by ETON |
Trade show and sales service
We will provide the sales service though e-mail and exhibitions to communicate face to face , let you feel the real competitive products.
Maintenance period:1 year.
Visit customers regularly and gather information.
Provide latest information about technology and equipment.
Company Profile
Shenzhen Eton Automachine Equipment co., LTD. is a professional supplier of pick and place machine, is a high-tech enterprise which specializing in R&D and manufacturing of high-end SMT pick and place machine.Our company independent research and development,design,manufacture a set of the world's fastest,most stable,most complete high-speed LED automatic energy mounter,while also solved the offset,cast material problems of the production of 1.2m,1.5m light panels and the headlights pearl and we received a number of patents issued by the state certificate and support. We have served many electronicsfactories(LED, PCB production line etc) and enjoyed good reputation. Nowadays, we have serveral 2015 newest items launched and being hot selling, for performance and competetive price.
Payment
Standard payment terms: 100% T/T before shipping
Online trade assurance order, all is up to you.
More payment terms could be provided (T/T, PAYPAL, western UNION)
