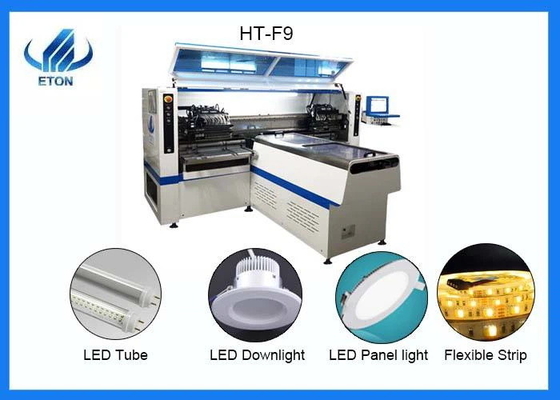

68 Heads Producing 4 Types Materials At The Same Time Capacity Reach 250000 CPH LED Mounting Machine

68 Heads Producing 4 Types Materials At The Same Time Capacity Reach 250000 CPH LED Mounting Machine
68 Heads Producing 4 Types Materials At The Same Time Capacity Reach 250000 CPH LED Mounting Machine 68 Heads Producing 4 Types Materials At The Same Time Capacity Reach 250000 CPH LED Mounting Machine 68 Heads Producing 4 Types Materials At The Same Time Capacity Reach 250000 CPH LED Mounting Machine 68 Heads Producing 4 Types Materials At The Same Time Capacity Reach 250000 CPH LED Mounting Machine

Large Image :  68 Heads Producing 4 Types Materials At The Same Time Capacity Reach 250000 CPH LED Mounting Machine

Product Details:
Place of Origin: China
Brand Name: ETON
Certification: CCC, CE, SIRA
Model Number: HT-F9
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: vacuum package, wooden case
Delivery Time: 30 days
Payment Terms: T/T
Supply Ability: 50 sets/month
Detailed Product Description
Warranty: 1 Year Name: SMT Pick And Place Machine
Weight: 1700kg Power Supply: 380AC 50HZ
Dimension: 2700*2300*1550mm Speed: 250000CHP
Feeder: 68pcs Product Name: LED Pick And Place Machine

Products Description:
1. Dual arm magnetic linear motor LED high-speed pick and place machine
2.PCB Length Width: max 1200*330mm min 100*100mm
3. No. of feeders station: 68PCS
4.No.of nozzles:68PCS
5. Mounting components: LED 3014/ 3020/ 3528/ 5050 and capacitor, resistor, bridge rectifiers,etc.





Products features:
1. Dual arm magnetic linear LED high-speed pick and place machine
2. Apply to the 0.6m,0.9m,1.2m rigid PCB and 0.5m,1m LED flexible strip.
3.Producing with 4 types materials at the same time with high capacity, available for board with any proportion of LED chip and resistor.
4. Dual arm four module, 17 nozzles for each mounting part, part A/B/C/D can be mounted separately synchronously.
5. Calibration patent technology: group to take and group to mount.







Technical parameter

Model HT-F9
Length 2700mm
Width 2300mm
Height 1550mm
Total Weight 1700kg
PCB size(L* W) Max:1200*300mm Min;100*100mm
PCB Thickness 05-5mm
PCB Clamping Adjustable pressure pneumatic
Mounting mode Group to take and group to mount
System Windows7
Software R&D Independently
Display Touch screen monitor
Input Device Keyboard, mouse
No.of camera 5sets(Digital camera)
Components LED3014/3020/3528/5050,capacitors,resistors,bridge rectifiers etc.
No.of feeders station 68PCS
No.of nozzles 68PCS
Conveyor transmission Max Length:1200mm
Electrical control Independent research and development by ETON
X,Y,Z Axis drive way High-end magnetic linear motor +Servo motor
Feeding way Electric feeder with double motor





LED SMT line
SMT line process: Solder paste printer - Singer conveyor - pick and place machine( HT-F9) - Singer Conveyor - Reflow oven machine.
The above machine and solution, ETON have solution for it. According to your actual situation.
Experienced for more than 10 years, Top brand of smt machine. Quality and service guaranteed!
