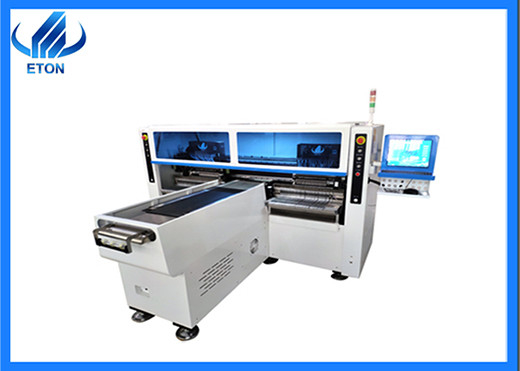

Warranty: | 1 Year | Name: | SMT Pick And Place Machine |
---|---|---|---|
Weight: | 1700kg | Power Supply: | 380AC 50HZ |
Dimension: | 3100*2300*1550mm | Speed: | 250000CHP |
Feeder: | 68pcs | Condition: | Brand-new |
Introduction
Feature
(1) Producing with 4 types materials at the same time with high capacity , available for 5M,5OM or any length of Flexible strip and Roll to Roll .
(2) Dual arm four module ,17 nozzles for each mounting part , part A or part B can be mounted separately or synchronously .
(3) Calibration automatically , high precision , available for RGB .
(4) Group to pick and group to mount.
Product Parameters
Model | HT-T9 |
Length | 3100mm |
Width | 2300mm |
Height | 1550mm |
Total Weight | 1700kg |
PCB size(L* W) | 250mm*any length |
PCB Thickness | 0.5-1.5mm |
PCB Clamping | Vacuum adsorption,cylinder clamping, track width adjustable |
Mounting mode | Group to take and group to mount |
System | Windows7 |
Software | R&D Independently |
Display | Touch screen monitor |
Input Device | Keyboard, mouse |
No.of camera | 5setsDigital camera(Digital camera) |
Components | LED3014/3020/3528/5050,capacitors,resistors,bridge rectifiers etc |
No.of feeders station | 68PCS |
No.of nozzles | 68PCS |
Power | 380AC 50HZ |
Operating environment | 23℃±3℃ |
Conveyor transmission | Max Length:1000mm |
Exhibition
Foreig exhibition :
India Mumbai Exhibition , India Delhi Exhibition , Egypt Exhibition , Turkey Exhibition , Pakistan Exhibition , etc .
Domestic exhibition :
Guangzhou Guangya Exhibition , Shanghai Munich Exhibition , Chongqing LED Light Exhibition , etc .
Package and delivery:
1.Standard export vacuum waterproof package
2.Strong wooden package for ensure safely delivery of heavy and large equipment
3.Delivery: By air, sea and railway.
After sales service
ETON as the biggest high speed pick and place machine in China, we are not only famous with high speed, but also famous with the good service . ETON set up office in different cities, like Shenzhen, Shanghai, Zhongshan, India, Egypt, etc.
If you buy our machine, we provide free install and training for you, will sent engineer to your factory to install and training.
One year warranty, during warranty, any parts need to be repaired and replaced will be free.
Free upgrade software, software is Reach and develop by ETON, so we support whole lifetime free upgrade updates.
Visit clients regularly. We attend different exhibition in different cities every year, at the same time, we will visit local clients and support our service and collect and feedback customer suggestions in time.
