Product Details:
Payment & Shipping Terms:
|
| Application: | SMD Production Line | Power Supply: | 380AC 50HZ |
|---|---|---|---|
| Condition: | New | Product Name: | ET-C1400 |
| Warranty: | 1 Year | Name: | SMT Conveyor |
| Width Adjustment Range: | 50～350 Mm | Max PCB Size: | 1400*350 Mm |

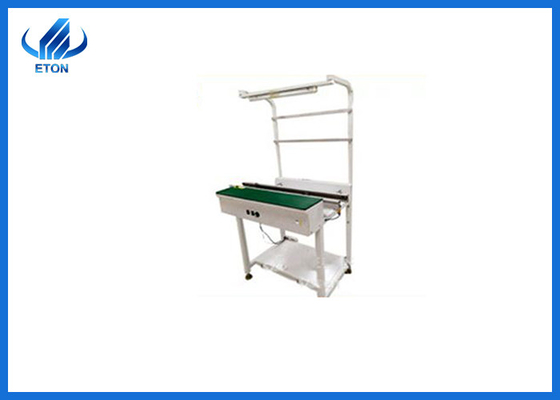

Connecting between SMT production lines SMT equipment conveyor
Description
The conveyor is used for connection between SMT production lines, and can also be used for PCB buffering, inspection, testing or manual insertion of electronic components.
Conveyor generally includes: a rack, two conveyor belts that rotate in parallel on the rack, the circuit board is placed on the two conveyor belts for transportation, and the existing conveyor belts are generally fixed on the rack, so that the two The width of the circuit boards conveyed on the conveyor belt is limited, so that it is not convenient to convey circuit boards of different sizes, so that the applicability of conveyor is low.
Specifications:

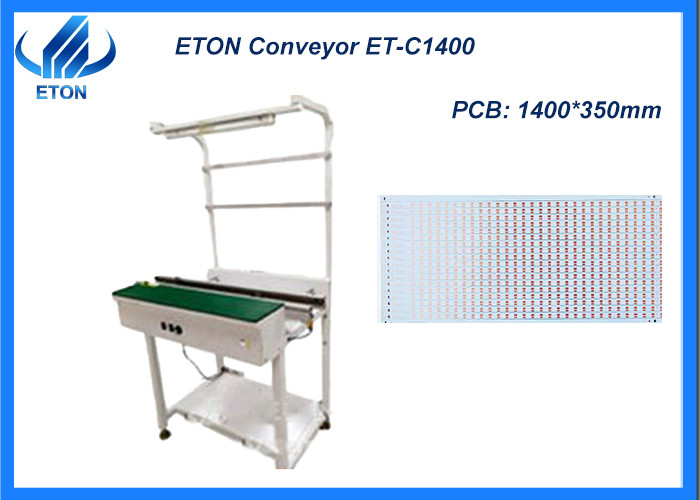

| Model | ET-C1400 |
| Steel frame structure, rail length | L=1400 mm |
| Width adjustment range | 50～350 mm |
| Max PCB size | 1400*350 mm |
| Transmission height | 920±20 mm |
| Transmission | 5MM flat belt conveyor |
| Speed | Adjustable from 0.5 to 9 m/min |
| Motor | One set of 40 W stepper motor |
| Control | Industrial control panel |
| Transmission Direction | Single(left → right or right → left) |
| One section of control, two Sensors | |
Packages
Service
Free Installation: provide free installation machine to ensure smooth production
Free Warranty:1 year warranty factory service, free replacement of space parts
Free Training: Professional training of operating and maintenance
Free Technical Support: 7*24 technical online support
Free Software Upgrade: Offer free software upgrade whole lifetime
Our advantage
ETON is the pioneer of SMT machine field in China which have more than 11 years experiences. And owned CCC, SIRA, CE certificates with 9 invention patents, 112 practical patents, 12 software copyrights of intellectual property technologies.
Oversea market:The products exported to more than 30 countries and regions, including South Korea, India, Vietnam, Tunisia, Egypt,Turkey, Russia, Brazil etc.
Shipping and Delivery
Shipping Way:
※ By air, for sample and small package
※ By sea, for large package and quantity;
※ Other ways as customer requested.
Delivery Time:
※ Within 30 Days.
FAQ
Q. If I need a perfect line of the machine can you supply?
A. Yes, for the requirements of a whole line for production, we have professional equipment to make up for a perfect production line for your products, on account of we have a 50000 square meters of industrial park and excellent R&D staff, which can produce 50 sets of machine per month.
Q. Can you accept D/P or D/A as the payment term?
A. For our regular payment terms, we usually use T/T.
