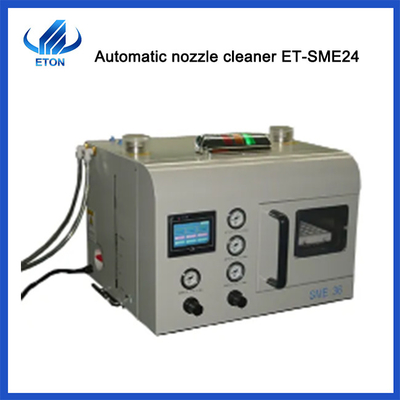

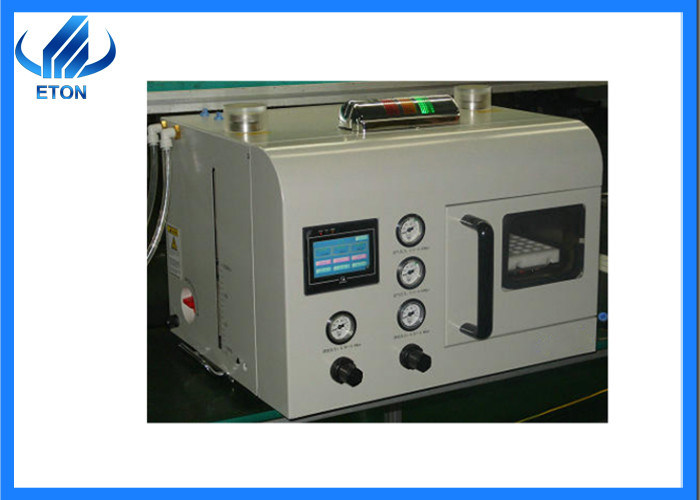

Simple operation High quality touch screen human-machine interface nozzle cleaner

 Simple  operation High quality touch screen human-machine interface nozzle cleaner

Features:

• No cleaning solution required
• Low noise
• High efficiency and energy saving
• 24 suction nozzles cleaned at a time

Principle and configuration features of cleaning machine:

• The suction nozzle cleaning machine adopts a unique mechanical design. It uses fluid mechanics to break the water and produce a very small high-pressure water mist.

• It forms a powerful kinetic energy jet on the suction nozzle at the sonic speed (v = 360m / s), forms a continuous energy field above the suction nozzle to be cleaned, and thoroughly smashes the dirt on the surface and inside (since the suction nozzle is placed independently, it will not damage the suction nozzle during the cleaning process). After cleaning, it will not damage the suction nozzle During the process, the cleaning solution (deionized water or distilled water) is automatically discharged directly.

• High quality touch screen human-machine interface, PLC control;

• The pneumatic part uses imported SMC pneumatic components from Japan, which ensures stable and efficient working efficiency;

• The key parts of the whole machine are all made of 304 stainless steel imported from Japan, and the special parts are made of 316 stainless steel imported from Japan, so as to ensure that the whole machine will not rust due to the use of water, thus affecting the service life of the equipment and other safety hazards.

Functional features:

• Put 24 suction nozzles in one time, please wash a large amount;
• Thoroughly solve the dirt and impurities which are difficult to be cleaned by ultrasonic;
• It will not be unclean due to the smaller and smaller diameter of suction nozzle;
• Cleaning more thoroughly and directly extend the life of suction nozzle;
• No damage to the surface coating and reflection plate of suction nozzle;
• Clean with deionized water or distilled water;
• Automatic continuous cleaning, automatic drying;
• Simple and convenient operation;
• Intelligent water storage inspection function added
• Suitable for all kinds of mounter.

Economic benefits:

Reduce the purchase cost of suction nozzle; after using sme-24 cleaning machine, it can solve the problem of too dirty suction nozzle and scrap, so as to extend the service life.
Reduce unnecessary labor; because the machine adopts automatic cleaning, no special person is responsible for it, and the whole process is automatically completed by the machine.

It can effectively reduce the defective rate of products and improve the productivity of SMT. In the production process, a large part of it is caused by the uneven dirt on the surface of the suction nozzle and the dirt in the inner cavity, resulting in the throwing or mounting displacement, resulting in poor subsequent welding. After using the cleaning machine, the suction nozzle can always be protected in a new state, greatly improving the production efficiency.


Technical parameter:

Certificates

As an experienced manufacturer in SMT machine, we obtained a number of intellectual property technologies, including 9 invention patents, 112 practical patents, 12 software copyrights, with our won R&D department for production and inspection. And also earned the oversea certificates as CE, CCC, SIRA,

etc.

Shipping and Delivery

Shipping Way:

※ By air, for sample and small package

※ By sea, for large package and quantity;

※ Other ways as customer requested.

Delivery Time:

※ Within 30 Days.

Related machine

ETON is a leading SMT high speed pick and place machine manufacturer in China, and we also provide whole line solution with peripheral devices as stencil printer, conveyor, glue dispenser, transitional and reflow oven etc.

FAQ

Q. Can you accept CIF as the quoted price?

A. We only accept EXW as the quoted price for it is convenient and lower cost for both sides.

Q. How many hours does the machine can operate per day?

A.Machine can work whole day. But for longer using life, we suggest you to have 1 hour or 2 hours off per day.

Q.What kind of machine you have?

A. We are the high speed SMT pick and place machine manufacturer, and also we build our brand to more efficient and convenient machine for our customers. We have multifunctional type, honor series, value series with high precision and high productivity.

Q. Is the machine easy to operate?

A. Yes, our machine is very intelligent and easy to operate, like the intelligent phone, also the software is made by our company, so we know how to make it more intelligent and operate friendly.
