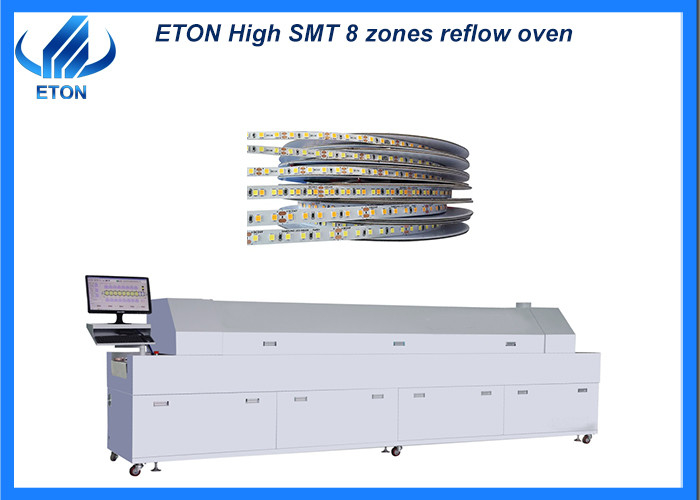

8 Zones SMT Reflow Oven Full Hot Air Modular Heating Structure

Full hot air Modular heating structure 8 zones SMT heating equipment

Description

Reflow soldering technology is not new in the field of electronic manufacturing. The components on various boards used in our computers are soldered to the circuit board through this process. There is a heating circuit inside this device, which uses air or nitrogen After heating to a high enough temperature, it is blown to the circuit board on which the components have been pasted, so that the solder on both sides of the components melts and bonds with the main board. The advantage of this process is that the temperature is easy to control, oxidation can be avoided during the welding process, and the manufacturing cost is easier to control.

Features

• It adopts imported high-speed air-carrying motor direct drive for thermal cycle, low noise, low vibration and high thermal cycle efficiency.
• It adopts Panasonic PLC industrial control products to control the upper and lower computer, which has first-class stability.
• It has a delay switch protection function to prevent the transmission components from deforming due to uneven cooling.
• It has a power-off protection function to ensure the normal output of the PCB without damage after power-off.
• With over-temperature sound and light alarm and emergency braking system.
• All zones are heated separately up and down, independent hot air circulation, independent temperature control, and the temperature control accuracy is ±1℃.
• Modular heating structure can effectively prevent the influence of airflow in the temperature range, ensure that the components are evenly heated, and the lateral temperature deviation is <±2℃.
• The upper furnace body is opened by pneumatic jacking, which is safe ,reliable and convenient for furnace cleaning.
• The heat source of the special durable nickel heating wire, abundant power, rapid heating, less than 20 minutes from room temperature to constant temperature.
• Simplified and traditional Chinese MMI operation interface and artificial intelligence software control greatly facilitate the user's use.
• It has a complete online temperature test curve and analysis, storage, recall and printing functions.
• Dedicated temperature acquisition module, high accuracy and fast speed, with cold junction compensation function.
• Temperature collection adopts RS-485 interface, which is convenient for remote device temperature monitoring.
• With timing automatic shutdown function.
• Host computer control, computer can be cut off, independent control, computer operation, convenient man-machine dialogue, clear interface, intuitive image, can switch between Chinese and English at any time, and various parameter settings realize accurate and fast numerical input.
• Using PLC control, the temperature control is stable and accurate, and the temperature of each zone is individually controlled.
• The motor is imported, high-quality,and high-temperature-resistant, with good structure and good heat dissipation, to ensure its service life and reliability. The direct connection mode connects the wind wheel with a speed of up to 2800rpm to provide sufficient hot air flow.
