Product Details:
Payment & Shipping Terms:
|
| Model: | HT-E8S | Package: | Vacuum Wooden Packing |
|---|---|---|---|
| Feeder Station: | 28 PCS | Heads: | 12 PCS |
| Feeding Way: | Electric Feeder With Double Motor | Mounting Mode: | Group Picking And Separately Placing, Separately Picking And Separately Placing |
| Mounting Precision: | ±0.04 Mm | System: | Windows 7 |
| High Light: | Linear Motor SMD Chip Mounter,Magnetic Motor SMD Chip Mounter,45000 CPH SMT Mounter |
||

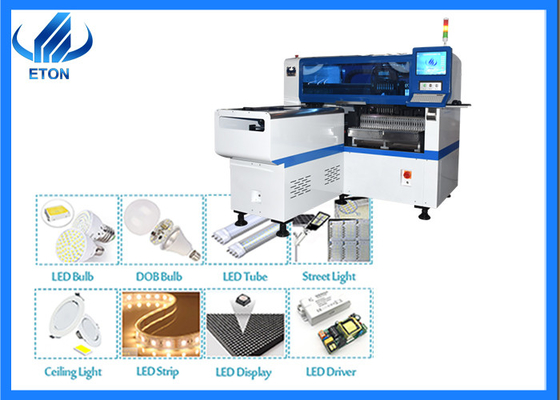

Electric board magnetic linear motor SMT mounter
Technical parameter
HT-E8S-1200 is a smt machine specially designed for lens production with an optimal capacity of 45000CPH.
| Components | LED chip,capacitors,resistors,IC,RGB,shaped components etc. |
| Total Weight | 1700kg |
| Mounting Height | <15mm |
| PCB Thickness | 0.5-5mm |
| Display | Touch screen |
| Mounting Mode | Group picking and separate placing,separate picking and separate placing |
| Software | R&D independently |
| Position Camera | Vision for the flight identification + MARK correction |
| Input Device | Keyboard,Mouse |
| No. of Camera | 2 sets of imported camera |
| PCB Length Width | Max:1200*350mm Min:100*100mm |
| Mounting repeat Precision | ±0.04mm chip |
| Length*Width*Height | 2550mm*1650mm *1550mm |
| Mounting Speed | 45000 CPH(optimum) |
| PCB Clamping | Adjustable pressure pneumatic |
Features
High Capacity:12 Heads, Optimum speed 45000 CPH
High Stability: with high end magnetic linear motor and servomotor, Production Stability.
High Precision: 2 sets ofimported camera, with flight visioncamera, mark correction

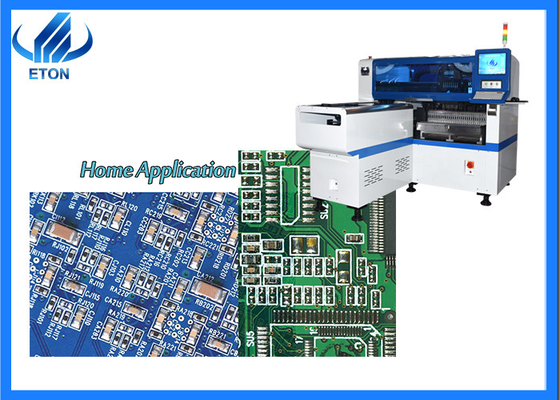

Wide Application: widely apply to all kinds of led lights andelectric board
Automatic feeding: if there is leakage or throwing, it canautomatically feed to save labor.
Software: Software R&D, Updated free for life, English &Chinese language version.
SMT production line solution
SMT is surface mounting technology, generally smt lines includes semi automatic production line and full automatic production line.
Company advantages
SMT equipment: Pick and place machine/reflow oven/stencil printer/pcb conveyor/SPI/AOI.etc
Light Factory for :led bulbs,DOB,lens,panel light,downlight,streetlight,tube,0.5m,1m strip light,etc.
Provide Overseas engineers for Free installation and free training.
TOP brand of China SMT machine manufacturer,500 employees for ETON
Oversea market:The products exported to more than 30 countries and regions, including South Korea, India, Vietnam, Tunisia, Egypt,Turkey, Russia, Brazil etc.
We can provide SMT line solution and better serivce for you!
FAQ
How about the operating software?
Our software is R&D independently by ourselves.
Do you provide personal customization?
Yes, of course. contact the sales specialist to customize the equipment for you.
If I don't know how to operate the machine what should I do?
Don't worry about it. We will provide the detailed operation instructions, and part of area will provide oversea engineer teaches the operation door-to-door.
What are the main appliance about the pick and place machine?
We have many different machine, and different machines apply to different appliance. The main products include bulb, tube, flexible strip, panel light, down light,street light,ceiling light, wall washer light etc.
What about the mode of transport?
Both sea, air and road are OK.
