| Dimension: | 2550*1650*1550mm | System: | Windows7 |
|---|---|---|---|
| Application: | PCB, Power Driver.electric Board.lens.linear Bulb.household Appliance Etc. | Power Consumption: | 4KW |
| Speed: | 40000CPH | Feeders: | 36 PCS |
| Nozzles: | 12PCS | Warranty: | 1 Year |
| Software: | R&D Independently | Total Weight: | 1250kg |
| High Light: | 12 Heads SMT Mounter Machine,LED Light SMT Mounter Machine,4KW LED Lights Assembly Machine |
||
12 heads high speed highprecision multifunctional pick and place mahcine
E8S pick and place machine spare part
12 heads,and 32 feeder station single module magnetic linear motor multifunctional pick and place machine
Vision for the flight identification Camera,improve E8S placement machine mounting precision
Apply Components:led chips,capacitors,resisitors,lens,IC,shaped components,etc
PCB clamping way by adjustable pressure pneumatic,with high stable
Features of E8S pick and place machine
Max PCB size:1200*500mm(Due to the large size range of PCB board, it can be applied to most products. If you are not sure whether you can mount and produce, please contact us )
Software:R&D BY ETON.(Software independent research and development, life free update. If your product is special, we can customize the machine and software for you)
Non-stop material re-loading function(Can save time, production smoothly)
| HT-E8S | ||
| PCB | PCB length width | Max:1200*300mm min:100*100mm |
| PCB thickness | 0.5~5mm | |
| O.S. | system | Windows 7 |
| software | R&D independently | |
|
Vision system |
No.of camera |
2sets of imported camera Vision for the alignment identification,mark correction |
| Mounting precision | 0.02mm(repeat precision) | |
| Mounting height | <36mm | |
| Mounting speed | 40000CPH | |
| Components space | 0.2mm | |
| No.of feeders station | 30PCS | |
| No.of nozzles | 8PCS | |
| Power | 380AC 50HZ | |
| Power consumption | 4KW | |
| Electrical control | Independent research and development by ETON | |
| Motion control card module 1set | Independent research and development by ETON | |
| X,Y,X axis drive way | Servo motor control for X,Y,Z axis | |
| Feeding way | Electric feeder with double motor | |

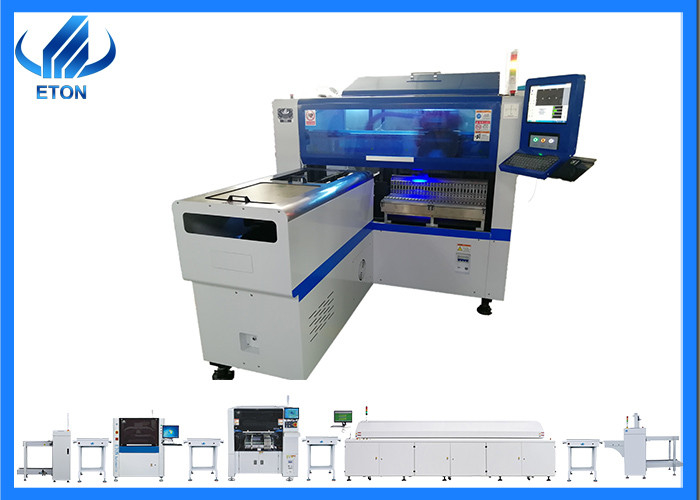

Pictures of machine
After sale service
1.Pre-sale
Provide equipment and SMT production lines that meet customers' needs according to customer needs;
Provide relevant suggestions to customers;
2.On sale
Real-time follow-up of the production situation of the customer's machine and inform the customer of the production progress
3.After sale
1.Arrange engineers to come to the factory to install, debug and teach free of charge;
2.One-year maintenance period. During the maintenance period, any parts that need to be replaced or repaired are free of charge;
3.Every year there is an opportunity for free machine maintenance
4.Visit customers regularly to understand the usage of the machine and collect customer feedback.
FAQ
1.How many cameras does the machine have?
There are two sets of imported cameras.Using exclusive patent technology:vision for the flight identification,Mark correction.
2.What is the direction of transmission of machines?
The transmission direction of this machine is both direction.
3.What kind of driving mode does the XYZ axis adopt?
X axis is magnetic liner motor,Y axis and Z axis is servo motor,very good performance and high accuracy.
4.What is the mounting mode?
Group to picking and separate to placing,Separate to picking and separate to placing.
5.Is your software interface in English?
English interface and Chinese interface are both available.
