| Brand: | ETON | Warranty: | 1 Year |
|---|---|---|---|
| Applicable Components: | 0402 | Name: | SMT Pick And Place Machine |
| Power Supply: | 380AC 50Hz | Condition: | New |
| Weight: | 1700kg | Type: | Automatic |
| Feeders: | 28 | Pcb Thickness: | 0.5-5 Mm |

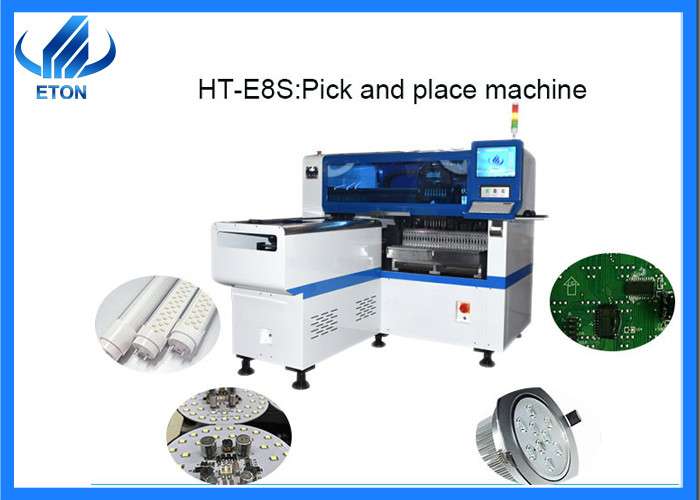

Multifunctional LED mounter 4kw with 45K pick and place machine
Machines features
High Accuracy Magnetic Linear Motor + Panasonic Servo Motor
12 heads 28 feeder stations
Minimum mounting components 0402
The Height of Head can be Set Automatically,
Maximum Height 36MM
Auto-optimization after coordinate generated
Vision for the Flight Identification, Mark Correction
Capacity can Reach 45000 CPH
Product details

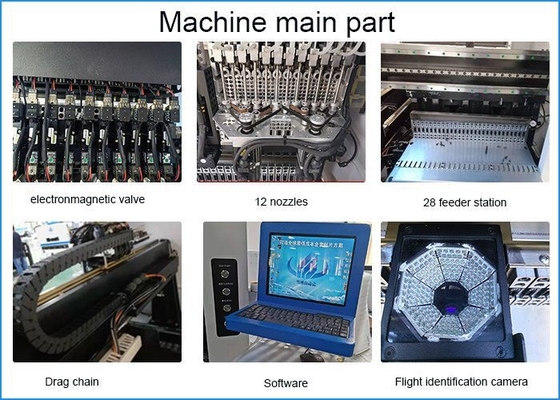

1. Precision mounting head system
The mounting method of 12 nozzle heads, group picking and separate placing / separate picking and separate placing can meet the mounting requirements of different components.
Each nozzle head is independently controlled by an independent servo motor to reduce feeding and ensure mounting accuracy at a higher speed than the stepper motor.
2. High precision imported screw
The X and Y axis adopts high-end magnetic linear motor to control the screw, and the Z axis adopts panasonic servo motor to control and drive, with ultra-high acceleration performance and stable movement speed to ensure the accuracy and stability of each step of mounting.
Specification

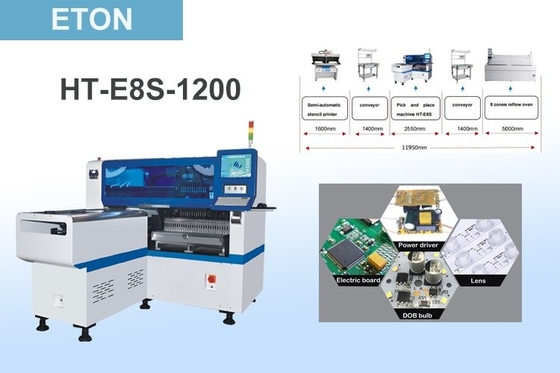

| Model | HT-E8S-1200 |
| Dimension (L*W*H) | 2550*1650*1550mm |
| G/W | 1700 KG |
| PCB Length width | Max:1200*500mm Min:100*100mm |
| Power | AC 380V 50Hz |
| Power consumption | 4KW |
| PCB thickness | 0.5~5mm |
| PCB clamping | Adjustable pressure pneumatic |
| Mounting mode | Group to take separate placing , Separate picking and separate placing |
| Camera | 2sets/ Vision alignment,mark correction |
| Mounting precision | ±0.04 mm(repeat precision) |
| Mounting element height | ≤15mm |
| Mounting speed | 45000 CPH |
| Feeders Station | 28 PCS |
| Nozzles | 12PCS |
| Applicable camera | Chip 0402,LED, |
Application
In order to meet the rapid development of the lighting industry market demand, research and development a multi-functional
placement machine HT-E8S.
HT-E8S is a new model pick and place machine of Eton company. This machine designed for many kinds of PCB boards. Using newest high magnetic linear motor, so the speed and accuracy is better than normal multi-functional machines..
