Product Details:
Payment & Shipping Terms:
|
Brand: | ETON | Warranty: | 1 Year |
---|---|---|---|
Applicable Components: | 0402 | Name: | SMT Pick And Place Machine |
Power Supply: | 380AC 50Hz | Condition: | New |
Weight: | 1700kg | Type: | Automatic |
Feeders: | 28 | Pcb Thickness: | 0.5-5 Mm |

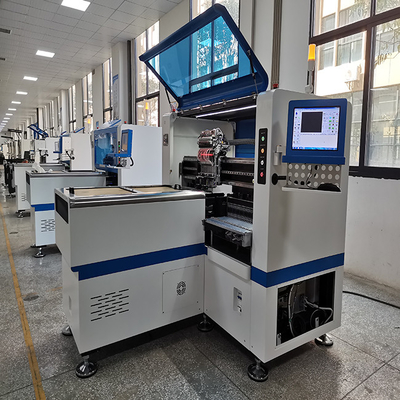

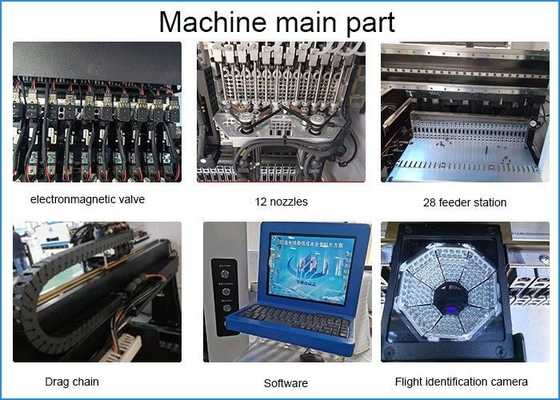

Machines features
High Accuracy Magnetic Linear Motor + Panasonic Servo Motor

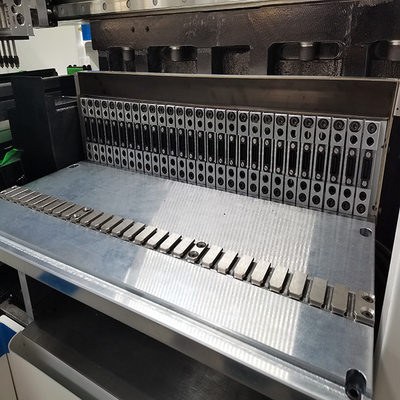

12 heads 28 feeder stations
Minimum mounting components 0402
The Height of Head can be Set Automatically,
Maximum Height 15MM
Auto-optimization after coordinate generated
Vision for the Flight Identification, Mark Correction
Capacity can Reach 45000 CPH
Production parameter:
Dimension | 2550*1650*1550mm |
Weight | 1700KG |
PCB size | Max.1200*500 Min.100*100mm |
PCB thickness | 0.5-5mm |
PCB clamping | Adjustable pressure pneumatic |
Mounting speed | 45000CPH |
Products features

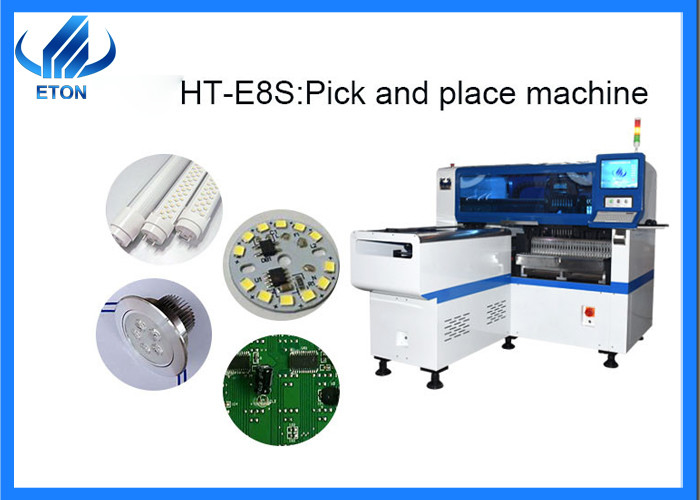

Single module magnetic linear motor multifunctional pick and place machine
Mounting components: LED chip, capacitor, resistor, lens, IC, shaped components,etc.
Component: min. Size 0402 max. Height 15mm
Application: Power drive, electric board, lens, DOB bulb, linear blub, household appliance etc.
Company Profile
Shenzhen ETON Automation Equipment Co. LTD. is a leading manufacturer of automatic high-speed pick and place machine focusing on “High efficiency Low consumption” in the world, meanwhile ETON is also the largest high-tech manufacturer in China with strong capability of design, R&D manufacturing, sales and service, and rated as “Shenzhen high-tech enterprise” “China high-tech enterprise” “Shenzhen top brand” “2019 LED Technology innovation Award” “The 4th China LED First Innovation Award” “Industry Special Contribution Award” “Double soft enterprise” etc.
Our market and clients
ETON is a leading pick and place machine manufacturer in China, and ETON machine have been exported more than 20 countries , such as India, Turkey, Egypt, Thailand, Vietnam, Etc. More than 70% big led lighting company are our clients,such as POLYCAB, ZTS, SKYQUAD, CEPL enterprise etc.
After-sale Service
Pre-Consultation: provides professional SMT solutions for the full line.
Factory Warranty: One-year warranty factory service.
Installation: On-site installation and commissioning, to ensure smooth production.
Technical Training: provides professional training from Level 1 to Level 3.
Technical Support: provides 7 * 24 technical support.
Software Upgrade: offers lifetime free software upgrades for all products Provide latest information about technology and equipment.
Packaging and Shipping
Our mode of transportation including water, land and air transportation.You can choose the most suitable way according to your requirements.
Our packing is made of wooden box with vacuum package, and we promise to deliver the goods within four weeks after payment.
Attention
1. Before using the Pick and Place machine, you must understand the basic parameters of the placement machine;
2. Before running the Pick and Place machine, the operator should do a comprehensive inspection of the machine.
3. According to the boot operation sequence to implement the Pick and Place machine, there must have a detailed machine operation instructions;
4. It is necessary to conduct regular troubleshooting and maintenance work on the Pick and Place machine in a timely manner.
Remarks:
1.Payment terms: Deposit 30% in advance,the balance 70% should be paid before shipment by T/T.
2.Delivery time: 30 days after deposit.
