Product Details:
Payment & Shipping Terms:
|
| Brand: | ETON | Warranty: | 1 Year |
|---|---|---|---|
| Applicable Components: | 0402 | Name: | SMT Pick And Place Machine |
| Power Supply: | 380AC 50Hz | Condition: | New |
| Weight: | 1700kg | Type: | Automatic |
| Feeders: | 28 | Pcb Thickness: | 0.5-5 Mm |
Smd Component Soldering Machine 12 Heads 45K pick and place machine
Parameter of pick and place machine

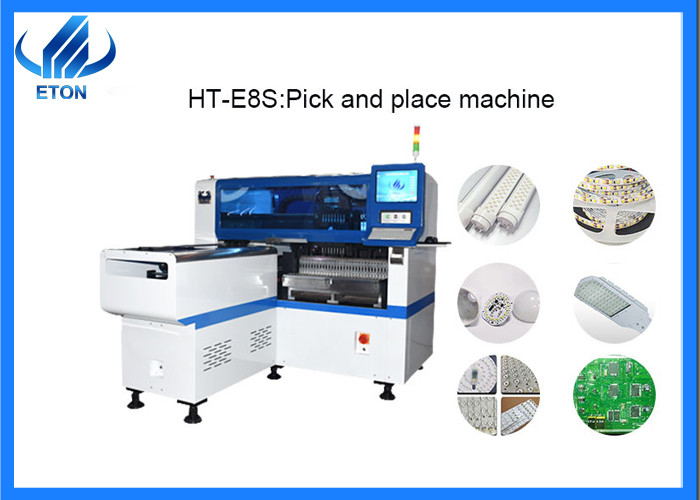

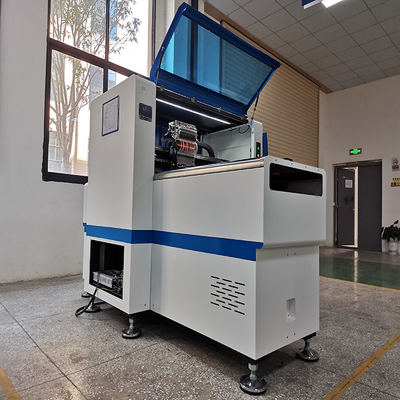

Pick and place machine as the main technology in the SMT line, also the most important machine in the whole line. ETON as the pick and place machine manufacturer, We reach and develop machine by ourselves . Here is one module of ETON pick and place machine----HT-E8S-1200.
HT-E8S-1200 is very multifunctional machine, it apply to led bulb, tube light, panel light, display, strip light, and electrical board, etc. Here are the main parameter of this module:
| Pick and place machine module | HT-E8S-1200 |
| Machine mounting speed | 45000 CPH(CHIP PER HOUR) |
| Machine Dimension | 2550*1650*1550 MM |
| PCB Length Width | Max:1200*500 mm Min:100*100 mm |
| Mounting Mode | Group picking and separate placing, separate picking and separate placing |
| Power | 380 AC 50HZ |
| Power Consumption | 4 KW |
| X,Y,Z Axis Drive way | High-end magnetic linear motor+ servo motor |
