Product Details:
Payment & Shipping Terms:
|
| Name: | Automatic Glue Dispenser Machine | Brand: | ETON |
|---|---|---|---|
| Dimension: | 1800*1050*1550mm | Weight: | 800kg |
| Max Pcb Size: | 1200*500mm | Optimal Speed: | 90000CPH |

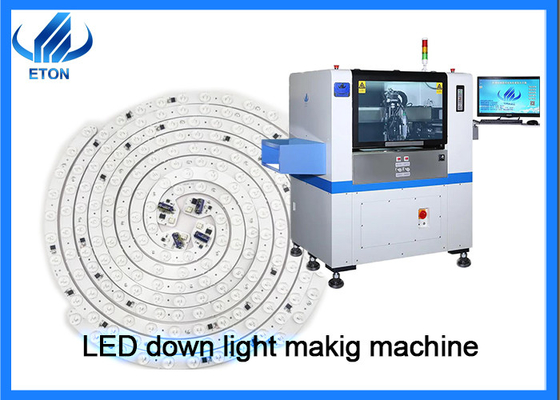

90000CPH lens automatic diepenser machine for down light
Features
1. CCD positioning system, visual positioning compensation automatically, correct the deviation of PCB.
2. Contactless high speed injection dispensing head, dispensing glue continously with high efficiency.
3. Intelligent dispensing head ensure good performance , high efficiency and lower glue wasting .
4. Full time monitoring of glue volume, autoprompting low glue volume .
5. Control the dispensing value in milliseconds, ensure the conformity of glue volume.
6. Automatic program standby, start up production rapidly, intelligent manufacturing .
7. Apply to various kinds (round, linear, lattice etc.) of products.
8. Universal signal connecting, connect equipment online easily.
Technical parameter
| Model | HT-D12-1200 |
| Dimension | |
| Length | 1800mm |
| Width | 1050mm |
| Height | 1550mm |
| Total Weight | 800kg |
| PCB | |
| Max PCB size | 1200*500mm |
| PCB Clamping | Adjustable pressure pneumatic |
| Dispensing mode | Pneumatic injection value |
| O.S. | |
| System | Windows7 |
| Software | R&D independently |
| Display | LED monitor |
| Input Device | Keyboard, Mouse |
| Vision System | |
| No. of Camera | 1 set industrial camera |
| Dispensing accuracy | 0.1mm |
| Heating temperature | 200℃ |
| Dispensing height | <15mm |
| Dispensing speed | 90000CPH(The optimum speed) |
| Power | 220AC 50HZ |
| Power Consumption | 1.5kw |
| Operating Environment | 23℃±2℃ |
| Drive way | Magnetic linear motor drive |
| Max running Speed | 1200mm/sec |
| Transmission Direction | Single(left→ right or right→ left) |
| Transmission Way | Online drive |
| Gas consumption | 0.4-0.6mpa(4-6 kgf/cm2)150N/min |
| Electrical control | Independent research and development by ETON |
| Motion control card module 1 set | Independent research and development by ETON |
The applications and components
Applications: all kinds of led lights LED bulbs, DOB, lens, led tube, led strip, down light, table light, spot light, ceiling light, panel light, electric board, power driver etc.
Components: led chips, resistor, capacitor, bridge rectifiers, IC, lens, shaped components etc.
Company advantages
1. SMT equipment: Pick and place machine/reflow oven/stencil printer/pcb conveyor/SPI/AOI.etc
2. Light Factory for :led bulbs,DOB,lens,panel light,downlight,streetlight,tube,0.5m,1m strip light,etc.
3. Provide Overseas engineers for Free installation and free training.
4. TOP brand of China SMT machine manufacturer,500 employees for ETON
5. Oversea market:The products exported to more than 30 countries and regions, including South Korea, India, Vietnam, Tunisia, Egypt,Turkey, Russia, Brazil etc.
We can provide SMT line solution and better serivce for you!
Certificates
ETON s not only in the leading position in the field of photoelectric high speed placement machines, but also has made breakthrough progress in the field of smt high speed placement machine, it has successfully developed a variety of cost effective smt high speed universal placement machines.
ETON has obtained a number of intellectual property technologies,total 133 patents, including 9 invention patents, 112 practical patents, 12 software copyrights, also earned the oversea certificates as CE, CCC, SIRA,etc.
