Product Details:
Payment & Shipping Terms:
|
| Brand: | ETON | Model: | HT-E8S-600 |
|---|---|---|---|
| Length: | 1550 Mm | Width: | 1650 Mm |
| Height: | 1550 Mm | Total Weight: | 1500 Kg |
| Show Room: | India Turkey Pakistan | Apply: | LED Light Power Driver Display |

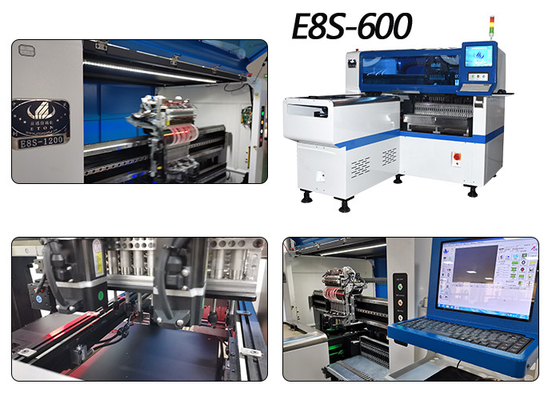

LED bulb DOB bulb panel street tube Display power driver mounting making machine LED SMD PCB mounter
Describe

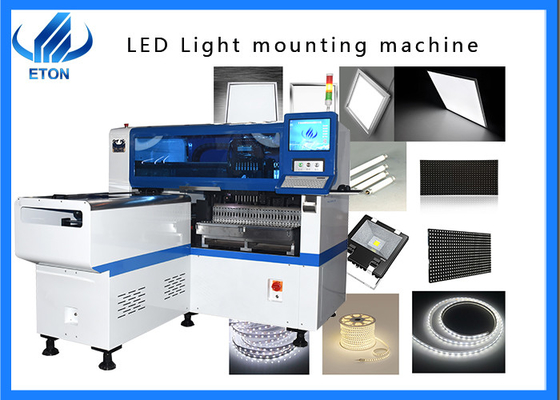

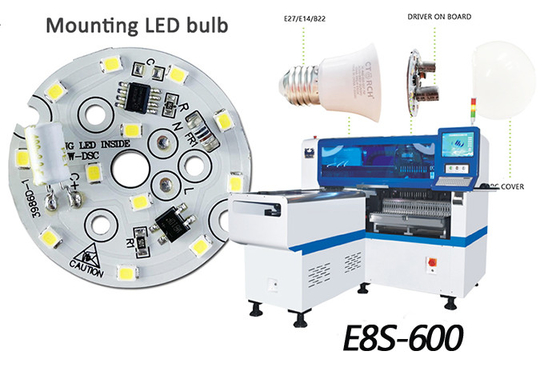

LED lamp manufacturing machine, which can manufacture LED lamps in the middle, such as LED bulb, DOB bulb, panel lamp, downlight, spotlight, soft light belt, lamp tube can not only sit the lamp, but also produce display screen and driver.
1.12 heads, each controlled by an independent servo motor
2. It can produce various LED lights and displays, circuit boards
3. The size of the largest PCB is 600 * 500mm
4. Exclusive patent technology: group take and paste, separate take and paste
5. Independently researched and developed software, supporting lifelong free updates
Techinical Parameter
| Model | HT-E8S-600 |
| Dimension | |
| Length | 1550 mm |
| Width | 1650 mm |
| Height | 1550 mm |
| Total Weight | 1500 kg |
| PCB | |
| PCB Length Width | Max:600*500mm Min:100*100mm |
| PCB Thickness | 0.5-5mm |
| PCB Clamping | Adjustable pressure pneumatic |
| Mounting Mode | Group picking and separate placingseparate picking and separate placing |
| O.S. | |
| System | Windows7 |
| Software | R&D independently |
| Display | Touch screen monitor |
| Input Device | Keyboard, Mouse |
| Vision System | |
| No. of Camera | 2 sets of imported camera |
| Vision for the flight identification, MARK correction | |
| Mounting Precision | ±0.04mm |
| Mounting Height | <15mm (Automatic Changing) |
| Mounting Speed | 45000 CPH |

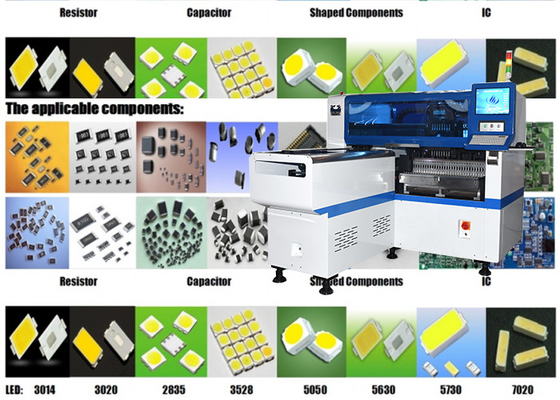

| Components | LED , capacitors, resistors, IC,shaped components, etc. |
| Components Space | 0.2mm |
| No. of Feeders Station | 28 PCS |
| No. of nozzles | 12 PCS |
| Power | 380AC 50HZ |
| Power Consumption | 4 KW |
| Operating Environment | 23℃±3℃ |
| Conveyor transmission | Max length :600 mm |
| Transmission Speed | ＞1000mm/sec |
| Transmission Direction | Both direction (option) |
| Transmission Mode | Auto online drive |
| Air supply | 0.4-0.6mpa (4-6kgf/cm2)150N/min |
| Electrical control | Independent research and development by ETON |
| X,Y,Z Axis Drive way | High-end magnetic linear motor + Servo motor |
| Feeding way | Electric feeder with double motor |
Service
Maintenance period 1 year
One year warranty, during warranty, any parts that need to be repaired and replaced will be free
Software and hardware lifetime maintenance
.Free upgrade software, the software is Reach and developed by ETON, so we support whole lifetime free upgrade updates
Visit customers regularly and gather information
Visit clients regularly. We attend the different exhibitions in different cities every year, at the same time, we will visit local clients and support our service and collect feedback on customer suggestions in time
Provide the latest information about technology and equipment
We give professional technology suggestions to our clients. And share the updated news with our clients
On-site service
We have some official site in India as Mumbai and New Delhi, also have site in Egypt. Turkey that can provide service timely with our engineers.
According to your needs. dedicated senior engineer will come to your factory for free install and training you how to operate the machine.
FAQ
Q: Are you a trade company or a manufacturer?
We are an professional manufacturer specialized in Screen Printer,SMT Machine, Pick and Place Machine, Reflow Oven, SMT Production line and other SMT Products.
Q: What is your delivery date?
The delivery date is about 20 days upon the full payment.
Q: What is your payment terms?
A:100% payment before delivery or 50% deposit in advance and the rest before shipment.
