| Model: | HT-T9-2S | Name: | Pick And Place Machine |
|---|---|---|---|
| Products Range: | 5m, 10m, 25m, 50m, 100m Roll To Roll Long Led Strip | Feeder Station: | 136PCS |
| Heads: | 136PCS | Feeding Way: | Intelligent Double Head Feeder |
| Mounting Mode: | Group Picking And Group Placing |

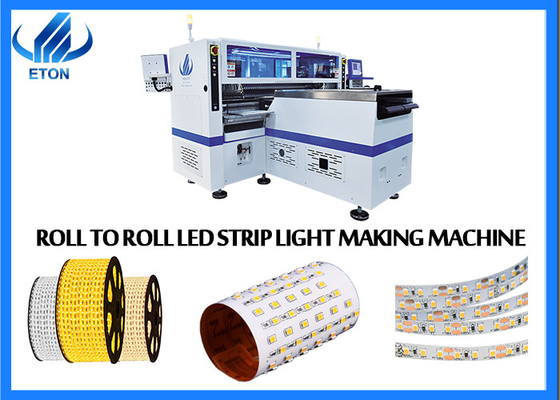

SMT pick and place mounting machine for 100M roll to roll long LED strip with 500000 CPH
Features:
1:Producing with producing 4 types of materials at the same time with high capacity, available for 1M,5M, 50M or any length of flexible strip and roll to roll.
2:Dual arm four module, 17 nozzles for each mounting part, part A or part B can be mounted separately or synchronously.
3:Calibration automatically, high precision, available for RGB
4: Exclusive patent technology: Group to pick and group to mount
Machine tachnical parameter
| Model | T9-2S |
| Dimension | 3454x3035x1777mm |
| Total weight | 3100kg |
| /PCB | |
| PCB length width | 250(±10)mm*Any length |
| PCB thickness | 0.1-0.5mm |
| PCB clamping | Vacuum adsorption, cylinder clamping, track width adjustable |
| Mounting mode | Group picking and group placing |
| O.S. | |
| System | Windows 7 |
| Software | R&D independently |
| Display | LED display |
| MES system | Customized(Option) |
| Vision system | |
| No.of camera | 10 sets (Digital camera) |
| Vision alignment+Mark correction | |
| Mounting precision | ±0.05mm/±0.05mm(Repeat precision) |
| Mounting height | ≤5mm |
| Mounting speed (Optimum) | Double side 500000CPH,Single side 250000CPH |
| Components range | LED3014/3020/2858/505 and resistor,capacitors,bridge rectifiers |
| Components space | 0.5mm |
| Power | 380AC 50HZ |
| Power consumption | 9.6KW |
| Operating environment | 23℃±3℃ |
| Conveyor transmission | MAX Length:1000mm |
| Transmission speed | ＞500mm/sec |
| Transmission direction | Singles(left→right or right→left) |
| Transmission mode | Online drive |
| Position mode | Optical |
| Gas consumption | 0.4-0.6mpa(4-6kgf/cm²)150N/min |
| Electrical control | Independent research and development by ETON |
| Motion control card module 1 set | Independent research and development by ETON |
| X,Y,Z Axis drive way | High-end magnetic linear motor +Servo motor |
| Feeding System | |
| No. of Feeders station | 136PCS(single station 68PCS) |
| No.of Nozzles | 136PCS(Single side 68PCS) |
| Feeding way | Electric feeder adopts single motor |
The smt production line

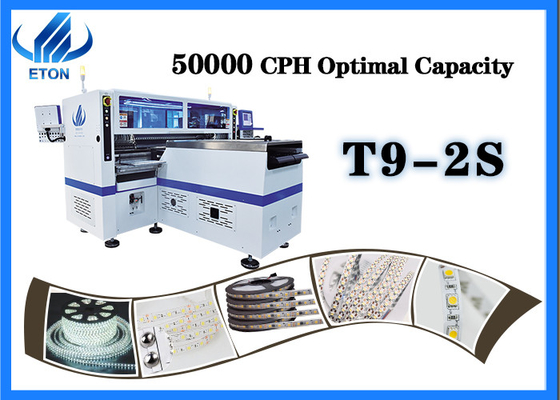

T9-2S is ultra high speed and professional pick and place machine for no wire roll to roll led strip light, especially, it can produce any length of led strip at once, such as 10m, 25m, 50m, 100m, etc.
Company advantages
Since set up in 2011, ETON has more than 12 years experience. In 2020, intelligent industrial park in Jiangxi Province has set up. Also has more than 500 employees and 50 R&D team.
In 2022, ETON has developed highest mounting speed machine, the Optimal capacity can reach 500000CPH. And newest series-Honor series, the min component can mount 0201.
ETON has SMT high speed pick and place machine division, precision solder paste stencil printer division, high speed precision dispensing equipment division, and smt peripheral automation equipment division.
Certificates
ETON s not only in the leading position in the field of photoelectric high speed placement machines, but also has made breakthrough progress in the field of smt high speed placement machine, it has successfully developed a variety of cost effective smt high speed universal placement machines.
ETON has obtained a number of intellectual property technologies,total 133 patents, including 9 invention patents, 112 practical patents, 12 software copyrights, also earned the oversea certificates as CE, CCC, SIRA,etc.
