| Name: | Pick And Place Machine | Model: | HT-101S |
|---|---|---|---|
| No. Of Heads: | 10 Pcs | No. Of Feeder Station: | 32 Pcs |
| No. Of Camera: | 2 Sets | Feeding Way: | Electric Feeder With Double Motor |
| Mounting Mode: | Group Picking And Separately Placing, Separately Picking And Separately Placing | ||
| High Light: | Auto optimization SMT Mounter,High Precision Automatic Chip Mounter,Power Driver Automatic Chip Mounter |
||

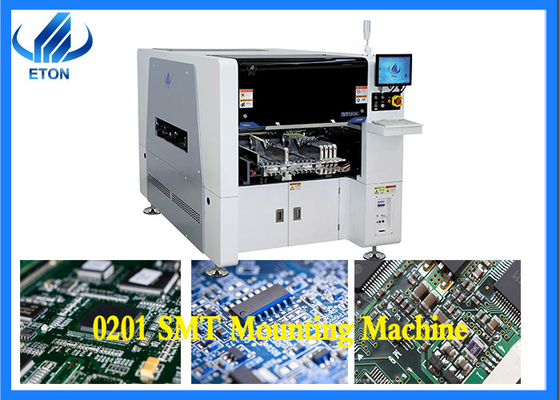

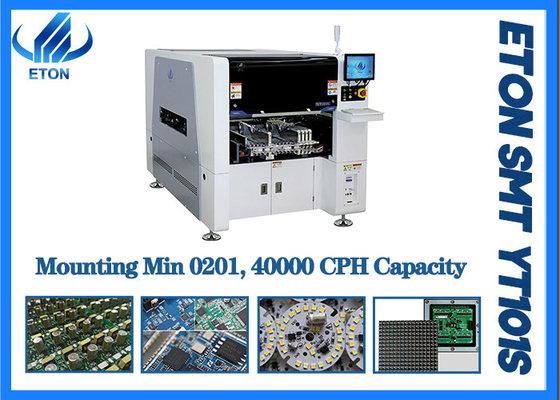

High precision full automatic smt mounter for min 0201 electric board and power driver
Features
Single-module Magnetic linear motor multifunctional pick and place machine.
Mounting components: LED/capacitors/resistors/IC/shaped components/etc.
Exclusive Patented Technology
Electronic feeder feeding system.
Vision alignment flight identifications, Mark correction.
Auto-optimization after coordinates generated, etc.
The Parameter
| model | YT 101S |
| PCB size |
MAX size: 500*350mm MIN size: 50*50mm |
| PCB thickness | 0.5-4.5mm |
| PCB clamping | Cylinder clamping, track width adjustable |
| rail | Rail 1 is fixed |
| system | Windows 7 |
| software | R&D independently |
| Production management MES system | Customized(option) |
| Off-line programming | available |
| No. Of camera | 2 set (digital camera) |
| Head flight vision recognition component | |
| Vision alignment+ mark correction | |
| Repeat precision | ±0.02mm |
| Mounting height | ≦20mm |
| Mounting speed | 40000 CPH (optimum speed) |
| Components range | Min 0201-40*40mm packages and IC etc |
| Power | 380AC 50HZ 4KW |
| Operation environment | 23℃±3℃ |
| Transmission direction | Single (left-right, right-left) |
| Transmission mode | Online drive |
| Position mode | optical |
| Air consumption | 0.4-0.6mpa()4-6kgf/cm2) 150N/min |
| Electrical control | Independent research and development by ETON |
| Motion control card module 1 set | |
| X,Y,Z Axis drive way | High end magnetic linear motor+ servo motor |
| No. Of feeder station | Station:16 pcs, tape reel packages 32 pcs |
| No. Of heads | 10 pcs |
| Feeding way | Intelligent double head feeder |
Production line
In order to ensure the mounting accuracy and quality, generally speaking, the mounting drive will choose the automatic production line.
The applications and components
Applications: all kinds of led lights LED bulbs, DOB, lens, led tube, led strip, down light, table light, spot light, ceiling light, panel light, electric board, power driver etc.
Components: led chips, resistor, capacitor, bridge rectifiers, IC, lens, shaped components etc.
Company advantages
1. SMT equipment: Pick and place machine/reflow oven/stencil printer/pcb conveyor/SPI/AOI.etc
2. Light Factory for :led bulbs,DOB,lens,panel light,downlight,streetlight,tube,0.5m,1m strip light,etc.
3. Provide Overseas engineers for Free installation and free training.
4. TOP brand of China SMT machine manufacturer,500 employees for ETON
5. Oversea market:The products exported to more than 30 countries and regions, including South Korea, India, Vietnam, Tunisia, Egypt,Turkey, Russia, Brazil etc.
We can provide SMT line solution and better serivce for you!
Our Exhibitions
Participate in various exhibitions in China and abroad every year.
Domestic exhibitions: Guangzhou Guangya Exhibition, Shanghai Munich Exhibition, Chongqing LED Light Exhibition, etc.
Foreign exhibitions: India Mumbai Exhibition, India Delhi Exhibition, Egypt Exhibition, Turkey Exhibition, Pakistan Exhibition, Thailand Exhibition, etc.
