Product Details:
Payment & Shipping Terms:
|
| Name: | Pick And Place Machine | Model: | HT-101S |
|---|---|---|---|
| No. Of Heads: | 10 Pcs | No. Of Feeder Station: | 32 Pcs |
| No. Of Camera: | 2 Sets | Feeding Way: | Electric Feeder With Double Motor |
| Mounting Mode: | Group Picking And Separately Placing, Separately Picking And Separately Placing | ||
| High Light: | DOB SMT Mounter Machine,Intelligent Feeder SMT Mounter Machine,Double Head Feeder SMT Mounter |
||

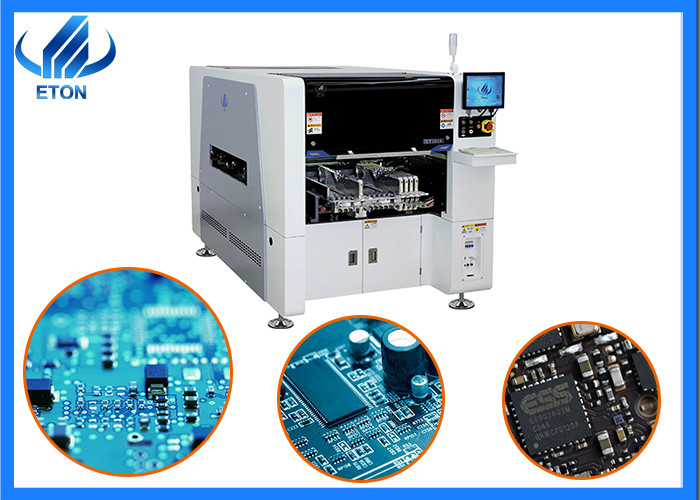

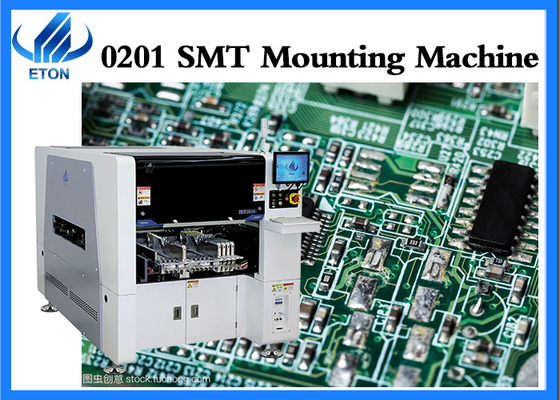

DOB mounting machine with 40000CPH with 2 sets camera and Intelligent double head feeder
Features
1. Has the Widely used products: led bulbs, DOB, power driver, Lens, led tube lights, strip lights, down lights, spot lights, ceiling lights, etc., with complete functions.
2. The X/Y axis uses magnetic linear motor, which has higher precision and faster speed. Each head of Z axis is independently controlled by one servo motor, ensuring accurate installation.
3. Independent research and development of head structure, unique structure and material, and mounting height can be adjusted. Can be used for many DOB high components, more extensive application, up to 20MM.
4. Applicable to a wider range of components, can mount resistance, capacitor, IC, bridge pile, inductor, terminal, diode, transistor, large capacitor transformer, coil and other special-shaped components.
The Parameter
| Name | SMT pick and place machine |
| Model | YT101S |
| PCB size | MAX size: 500*350mm MIN size: 50*50mm |
| PCB thickness | 0.5-4.5mm |
| PCB clamping | Cylinder clamping, track width adjustable |
| software | R&D independently |
| Production management MES system | Customized(option) |
| Off-line programming | available |
| No. Of camera | 2 set (digital camera) |
| Camera advantages | Vision alignment+ mark correction |
| Mounting speed | 40000 CPH(optimum speed) |
| Warranty of core components | 1 Year |
| Power | 380 AC 50HZ |
| Operation environment | 23±3℃ |
| Feeding way | Intelligent double head feeder |
| Electrical control | Independent research and develop by ETON |
Shipping and Delivery
Land transportation: suitable for inland countries and it is affordable;
Air freight: for urgent good, and it is the most expensive transportation way;
Shipping: It’s suitable for heavy goods, and the convenience and lower cost of shipping which is easy for clients to accept the arrival time of the goods.
Related machine
We can provide a whole SMT production line,led light production line:
1.Pick and place machine
2. Loader machine
3. Conveyor machine
4. Stencil printer machine
5. Reflow oven machine
6. Unloader machine
7. Solder paste mixer
8. Roll to roll led strip light assembly machine
FAQ
1. What are the main components the pick and place machine can mount?
It is available for all kinds of components, including LED chip, resistors, capacitors, IC,shaped component and so on.
2. Do you provide the complete production line machine?
Yes, of course. We provide the whole production line machine, including solder paste printer machine, conveyor, pick and place machine reflow oven.
3. How about the operating software?
Our software is R&D independently by ourselves.
4. Do you provide personal customization?
Yes, of course. contact the sales specialist to customize the equipment for you.
5. If I don't know how to operate the machine what should I do?
Don't worry about it. We will provide the detailed operation instructions, and part of area will provide oversea engineer teaches the operation door-to-door.
