Lens Products Pick And Place Machine 12 Heads For PCBA Board Max 1200*500mm

Lens Products Pick And Place Machine 12 Heads For PCBA Board Max 1200*500mm
Lens Products Pick And Place Machine 12 Heads For PCBA Board Max 1200*500mm Lens Products Pick And Place Machine 12 Heads For PCBA Board Max 1200*500mm Lens Products Pick And Place Machine 12 Heads For PCBA Board Max 1200*500mm Lens Products Pick And Place Machine 12 Heads For PCBA Board Max 1200*500mm

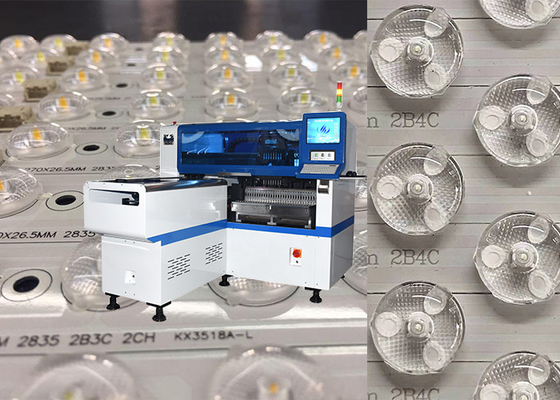

Large Image :  Lens Products Pick And Place Machine 12 Heads For PCBA Board Max 1200*500mm

Product Details:
Place of Origin: CHINA
Brand Name: ETON
Certification: CCC,SIRA,CE
Model Number: E8S-1200
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Packaging Details: We use vacuum wooden box packaging
Delivery Time: 5-8days
Payment Terms: L/C, T/T
Supply Ability: 50pcs/month
Detailed Product Description
Brand: ETON Model: HT-E8S-1200
Length: 2550 Mm Width: 1650mm
Height: 1550 Mm PCB Length Width: Max:1200*500mm Min:100*100mm
High Light:

Lens Products Pick And Place Machine

,

1200mm PCB SMT Mounting Machine

,

PCBA Board SMT Mounting Machine

12 Heads Lens products pick and place machine



Lens products process

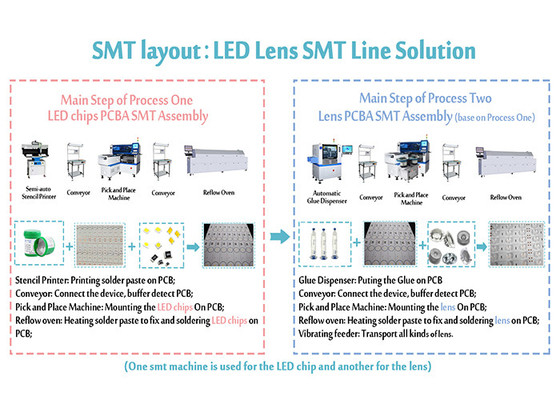

The mounting of the lens is divided into two steps. The first step is the mounting of the lamp bead, and the second step is the mounting of the lens.

The first step: Print the solder paste on the pad of the PCB board with a steel mesh, the second step is to mount the lamp bead on the designated position of the PCB board, and the third step is to solder the mounted PCB board through reflow soldering

After the reflow soldering, put the PCB board into the glue dispenser to dispense glue, then mount the lens on it, and then enter the reflow soldering oven or UV curing oven.

Note: The temperature required for lens over-reflow soldering and lamp bead over-reflow soldering is different



Technial parameter

Model HT-E8S-1200
Dimension
Length 2550 mm
Width 1650 mm
Height 1550 mm
Total Weight 1700 kg
PCB
PCB Length Width Max:1200*500mm Min:100*100mm
PCB Thickness 0.5-5mm
PCB Clamping Adjustable pressure pneumatic
Mounting Mode Group picking and separate placingseparate picking and separate placing
O.S.
System Windows7
Software R&D independently
Display Touch screen monitor
Input Device Keyboard, Mouse
Vision System
No. of Camera 2 sets of imported camera
Vision for the flight identification, MARK correction
Mounting Precision ±0.04mm
Mounting Height <15mm (Automatic Changing)
Mounting Speed 45000 CPH
Components LED , capacitors, resistors, IC,shaped components, etc.
Components Space 0.2mm
No. of Feeders Station 28 PCS
No. of nozzles 12 PCS
Power 380AC 50HZ
Power Consumption 4 KW
Operating Environment 23℃±3℃
Conveyor transmission Max length :1200 mm
Transmission Speed >1000mm/sec
Transmission Direction Both direction (option)
Transmission Mode Auto online drive
Air supply 0.4-0.6mpa (4-6kgf/cm2)150N/min
Electrical control Independent research and development by ETON
X,Y,Z Axis Drive way High-end magnetic linear motor + Servo motor
Feeding way Electric feeder with double motor





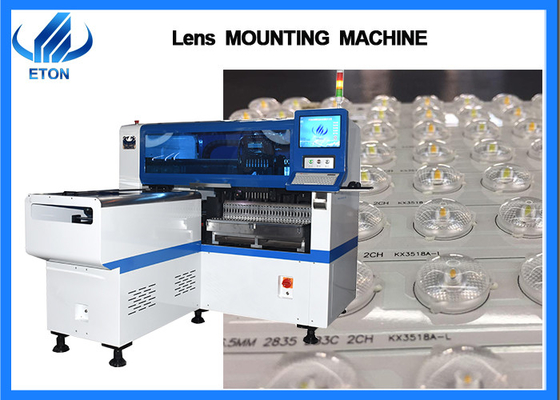

Lens Products Pick And Place Machine 12 Heads For PCBA Board Max 1200*500mm 0



Lens SMT whole line

Lens Products Pick And Place Machine 12 Heads For PCBA Board Max 1200*500mm 1



Client

we have many partner in china such as MLS,Foshan lighting,NVC,OPPlE,etc.

Lens Products Pick And Place Machine 12 Heads For PCBA Board Max 1200*500mm 2

FAQ

Q:How are your products packaged?

A:All machines are packed with vacuum and wooden packing like the one in the pictures.

Q:What kind of service I can have, if I buy machine from ETON ?

A:We will give you install and training. It is free for you. And we will sent engineer with you.

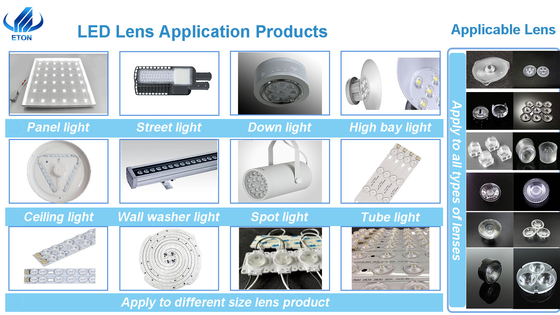

Q:What is your machine suitable for?

A:Our machines are widely used in lighting, display screen, electronics, driving power supply, household appliances, new energy and other industries
