Product Details:
Payment & Shipping Terms:
|
| Name: | Reflow Oven Machine | Brand: | ETON |
|---|---|---|---|
| Conveyor Belt Height: | Mesh Belt 880±20mm | Power: | 380V 50/60Hz Three-phase Five-wire AC:380V 50Hz |
| Machine Weight: | 1300kg | Machine Dimensions: | 4600mm*1000mm*1400mm |
| High Light: | 28KW Solder Paste Oven,DOB Bulbs SMT Reflow Oven,450mm Mesh Solder Paste Oven |
||

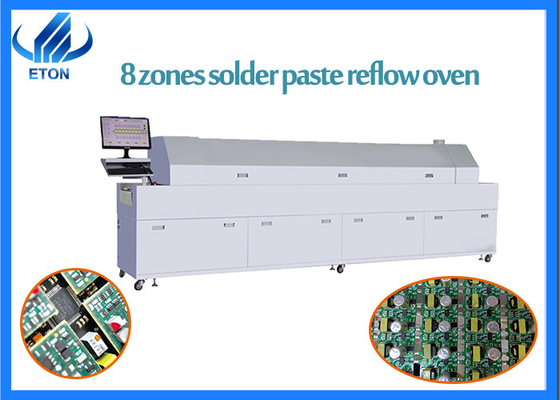

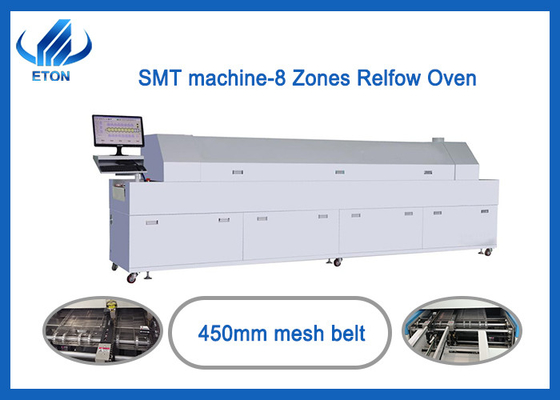

led light assembly machine 8 zones solder paste reflow oven with 450mm mesh for DOB bulbs
The technical parameter
| Product model | ET-R8 | |
| Heating system | NO. of heating zone | Upper 8 hot air heating, lower 8 hot air heating |
| Length of heating zone | 3000mm | |
| heating method | Full hot air | |
| Delivery system | PCB maximum width | 400mm mesh belt, no lead rail |
| Transport direction | left-right,right to left(option) | |
| Conveyor belt height | Mesh belt 880±20mm | |
| Delivery method | Mesh belt drive + rail (optional) | |
| Conveyor speed | 0-2000mm/min | |
|
Control System
|
power |
380V 50/60Hz Three-phase five-wire AC:380V 50Hz |
| Starting power | 28KW | |
| Working power | 7KW | |
| Heating time | Around 15 mins | |
| Temperature control range | Room temperature～350℃ | |
| Temperature control method | PID control + SSR drive | |
| Temperature control accuracy | ±1℃ | |
| Abnormal alarm | Abnormal temperature alarm | |
|
Machine system
|
Machine dimensions(L*W*H) | 4600mm*1000mm*1400mm |
| Machine weight | 1300kg | |
Features
1.With timing automatic shutdown function.
2.Host computer control, computer can be cut off, independent control, computer operation, convenient man-machine dialogue, clear interface, intuitive image, can switch between Chinese and English at any time, and various parameter settings realize accurate and fast numerical input.
3.Using PLC control, the temperature control is stable and accurate, and the temperature of each zone is individually controlled.
4. The motor is imported, high-quality,and high-temperature-resistant, with good structure and good heat dissipation, to ensure its service life and reliability. The direct connection mode connects the wind wheel with a speed of up to 2800rpm to provide sufficient hot air flow.
Our Exhibitions
Participate in various exhibitions in China and abroad every year.
Domestic exhibitions: Guangzhou Guangya Exhibition, Shanghai Munich Exhibition, Chongqing LED Light Exhibition, etc.
Foreign exhibitions: India Mumbai Exhibition, India Delhi Exhibition, Egypt Exhibition, Turkey Exhibition, Pakistan Exhibition, Thailand Exhibition, etc.
Market
Our products had exported to more than 30 countries and regions, including South Korea, India, Vietnam, Tunisia, Egypt,Turkey, Russia, Brazil etc. And here are some of our big customers:
SURYA, POLYCAB, FIEM, RK, GK, TECHNO LED, CALCOM, ACK , KENDAL, RangDong, UNISTAR, and so on.
FAQ
1. Do you provide the complete production line machine?
Yes, of course. We provide the whole production line machine, including solder paste printer machine, conveyor, pick and place machine reflow oven.
2. How about the operating software?
Our software is R&D independently by ourselves.
3. What about the mode of transport?
Both sea, air and road are OK.
4. How about the operation software language of the machine?
Our software are Independent R&D by ourselves with 2 language( English and Chinese).
5. What’s the terms of payment?
T/T is OK. You can choose FOB Shenzhen.
