Product Details:
Payment & Shipping Terms:
|
| Dimension: | 2550*1650*1550mm | Feeders: | 36 PCS |
|---|---|---|---|
| Speed: | 40000CPH | Application: | PCB, Power Driver.electric Board.lens.linear Bulb.household Appliance Etc. |
| Power Consumption: | 4KW | Warranty: | 1 Year |
| Total Weight: | 1250kg | System: | Windows7 |
| Software: | R&D Independently | Nozzles: | 12PCS |
| High Light: | 12 Heads SMD Mounting Machine,Electric Board SMD Mounting Machine,lens SMT Placement Machine |
||

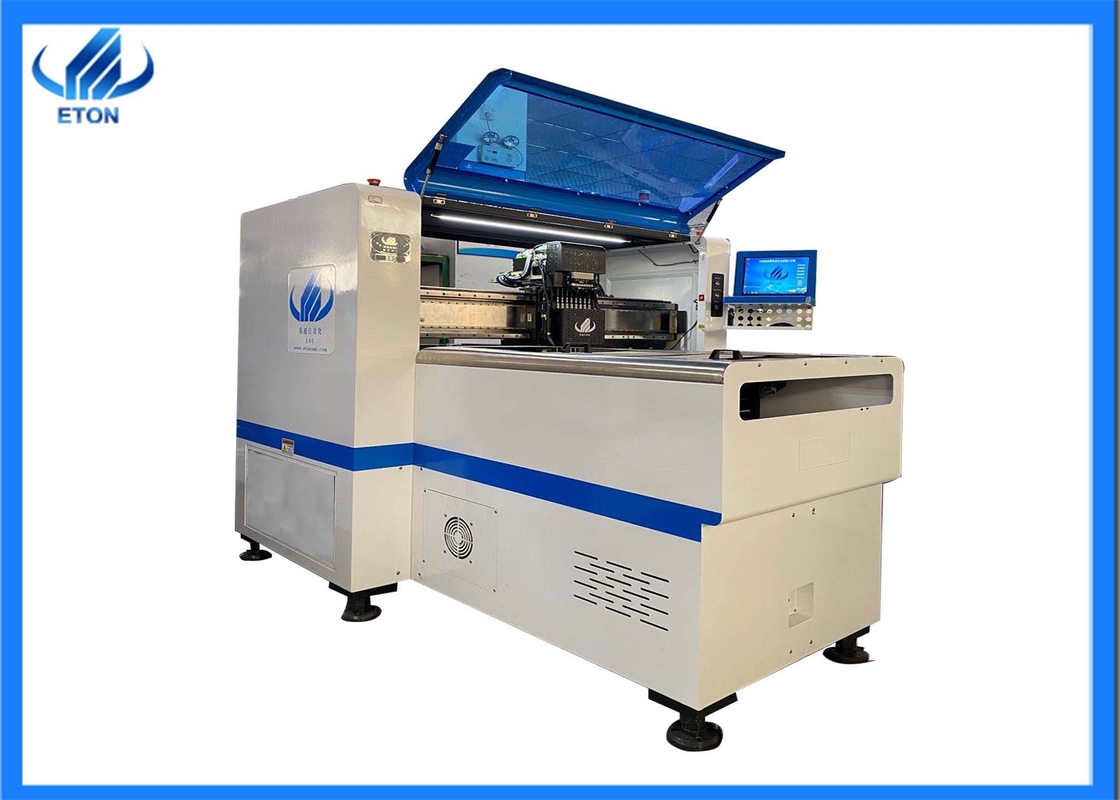

12 heads smt pick and place equipment 450000cph chip mounter machine
E8S placement machine factures
1.With the rapid development of the LED industry, the automation equipment products, quality requirements are higher.
2.ETON automation launched HT-E8S automatic multi-functional pick and place machine, 3.HT-E8S placement machine imported from Japan precision screw + linear guide rail + servo motor+linear motor.
3.equipped with MARK point positioning vision + device recognition function.
4.The pursuit of high-speed completion of the mounting, while fully ensuring the stability of high-speed operation of the equipment, is a cost-effective LED multi-functional placement machine.
E8S pick and place machine spare part
12 heads,and 32 feeder station
Vision for the flight identification Camera
Details of E8S pick and place machine
| HT-E8S | ||
| PCB | PCB length width | Max:1200*300mm min:100*100mm |
| PCB thickness | 0.5~5mm | |
| O.S. | system | Windows 7 |
| software | R&D independently | |
|
Vision system |
No.of camera |
2sets of imported camera Vision for the alignment identification,mark correction |
| Mounting precision | 0.02mm(repeat precision) | |
| Mounting height | <36mm | |
| Mounting speed | 40000CPH | |
| Components space | 0.2mm | |
| No.of feeders station | 30PCS | |
| No.of nozzles | 8PCS | |
| Power | 380AC 50HZ | |
| Power consumption | 4KW | |
| Electrical control | Independent research and development by ETON | |
| Motion control card module 1set | Independent research and development by ETON | |
| X,Y,X axis drive way | Servo motor control for X,Y,Z axis | |
| Feeding way | Electric feeder with double motor | |
SMT Line solution & Application
After sale service
■ Pre-Consultation: provides professional SMT solutions for the full line.
■ Factory Warranty: One-year warranty factory service.
■ Installation: On-site installation and commissioning, to ensure smooth production.
■ Technical Training: provides professional training from Level 1 to Level 3.
■ Technical Support: provides 7 * 24 technical support.
■ Software Upgrade: offers lifetime free software upgrades for all products Provide latest information about technology and equipment.
FAQ
For future coopertion, if you are also interested in SMT Line, please ccontact us as soon as possible. Here are some question as example:
1. I want to produce led display, does your machine suitable for produce this product?
A: Yes, we could provide whole SMT Line for led display manufacturing, include stencil printer machine, pick and place machine, reflow oven machine, conveyor machine, etc
2. We do not have any experience for machine operate, is it difficult for operating ?
A: Our machine is very easy ! friendly man-machine interface, simple and easy to learn, operator can control machine within a few days of training.
3. I am from India, can I pay in Indian rupees?
A: So sorry, this order only support pay by USD or CNY. And we also support pay by Alibaba directly.
