| Warranty: | 1 Year | Application: | LED Flexible Strip |
|---|---|---|---|
| Power Supply: | AC:220±10%,50/60HZ 1Φ 1.5KW | Weight: | Approx:600Kg |
| Dimension: | 1754(L)X1249(W)X1600(H)mm | Condition: | New |
| Cycle Time: | ≤9s (Exclude Printing & Cleaning) | Air Required: | Air Required 4.5~6Kg/cm2 |
| High Light: | Flex LED SMT Printing Machine,LED Strip SMT Printing Machine,LED Strip smt printer machine |
||

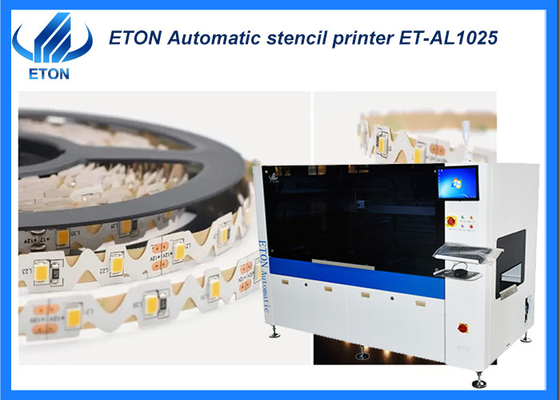

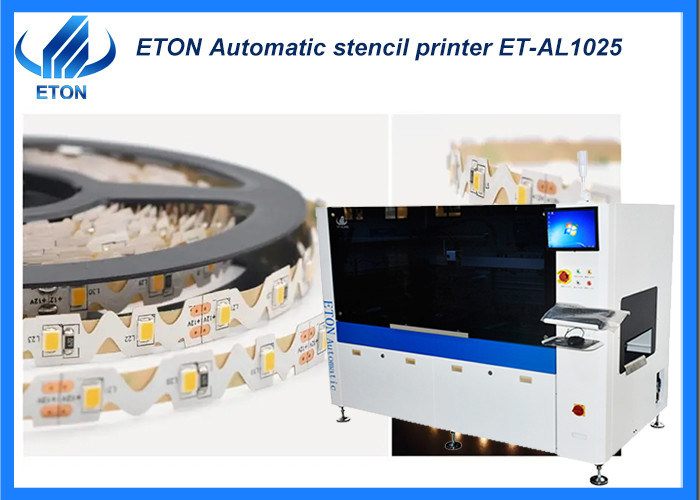

SMT Auto LED 100M flexible strip CNC guide rail adjustment printing machine
Description
● Programmable suspension printing head;
*Two sets of stepping motor drive, the pressure of front and rear scraper can be adjusted separately to ensure the inconsistency of front and rear printing caused by fatigue deformation of scraper material;
*Effectively control the stroke, improve the printing efficiency, and prevent the leakage of solder paste;
● Standard stainless steel scraper, unique design, improve the service life of the blade;
● Downward vision alignment system;
● CNC guide rail adjustment;
● Industrial controlled computer,Windows XP interface operating system;
● Built-in software diagnostic system;
● SMEMA interface.
Technical parameter
| Screen Frames | Min Size | 850mm |
| Max Size | 550mm | |
| Thickness | 25~45mm | |
| FPCB Min Size | 50mm | |
| FPCB Max Size | 260mm | |
| FPCB Thickness | 0.5~5mm | |
| FPCB Warpage | Max. FPCB diagonal 1％ | |
| Transport Height | 900±40mm | |
| Transport Direction | Left-Right | |
| Transport Speed | Max 1000mm/S Programmable (Adjustable) | |
| Board Location | Support System | Platform jacking tension |
| Clamping System | Edge clamp fixed | |
| Print head | Two independent motorized print heads | |
| Squeegee Speed | 6~300mm/sec | |
| Squeegee Pressure | 0~10Kg/cm2 | |
| Squeegee Angle | 55°(Standard) | |
| Squeegee Type | Stainless steel(Standard), plastic | |
| Stencil Separation Speed | 0.1~20mm/sec Programmable | |
| Cleaning System | Manual cleaning | |
| Table Adjustment ranges | X:±5mm;Y:±5mm;θ:±2° | |
| Machine | ||
| Repeat Position Accuracy | ±0.01mm | |
| Printing Accuracy | ±0.025mm | |
| Cycle Time | ≤9s (Exclude Printing & Cleaning) | |
| Air Required | 4.5~6Kg/cm2 | |
| Power Input | AC:220±10%,50/60HZ 1Φ 1.5KW | |
| Control Method | PC Control | |
| Machine Dimensions | 1754(L)X1249(W)X1600(H)mm | |
| Machine Weight | Approx:600Kg | |
| FPCB transport over plate height | 20mm | |
Certificates
As an experienced manufacturer in SMT machine, we obtained a number of intellectual property technologies, including 9 invention patents, 112 practical patents, 12 software copyrights, with our won R&D department for production and inspection. And also earned the oversea certificates as CE, CCC, SIRA,
etc.
Service
Maintenance period 1 year
One year warranty during warranty any parts that need to be repaired and replaced will be free.
Software and hardware lifetime maintenance
Free upgrade software, the software is Reach and developed by ETON, so we support whole lifetime free upgrade updates.
Visit customers regularly and gather information
Visit clients regularly. We attend the different exhibitions in different cities every year, at the same time, we will visit local clients and support our service and collect feedback on customer suggestions in time.
Provide the latest information about technology and equipment
We give professional technology suggestions to our clients. And share the updated news with our clients
On-site service
We have some official site in India as Mumbai and New Delhi, also have site in Egypt, Turkey that can provide service timely with our engineers.
According to your needs, dedicated senior engineer will come to your factory for free install and training you how to operate the machine.
Shipping and Delivery
Shipping Way:
※ By air, for sample and small package
※ By sea, for large package and quantity;
※ Other ways as customer requested.
Delivery Time:
※ Within 30 Days.
Related machine
We can provide a whole SMT production line,led light production line:
1.Pick and place machine
2. Loader machine
3. Conveyor machine
4. Stencil printer machine
5. Reflow oven machine
6. Unloader machine
7. Solder paste mixer
8. Roll to roll led strip light assembly machine
FAQ
Q.How can I make inspection when something wrong with the machine?
A. Well, the inspection is taken by our professional engineer to check and modulate the machine, if you counter any problem of our machine please contact us, and we will arrange our engineer to solve it.
Q. How was your services?
A. We ensure our clients to enjoy an optimal experience of the service of communication and relevant needs of the machine for installation, maintenance and free up- grade.
Q. How long is the machine maintenance period, whether it is free?
A. The maintenance period of our machine is 1 year and its free for our clients, after the maintenance period we will arrange our engineers to check and test the machine one or two times a year freely.
