Name: | ET-AL1025L | Power Supply: | AC:220±10%,50/60HZ 1Φ 1.5KW |
---|---|---|---|
Warranty: | 1 Year | Condition: | New |
Weight: | Approx:600Kg | Dimension: | 1754(L)X1249(W)X1600(H)mm |
Printing Accuracy: | ±0.025mm | Cleaning System: | Manual Cleaning |
High Light: | 100m Strip SMT Stencil Printer,25m Strip SMT Stencil Printer,Programmable head Automatic Stencil Printer |

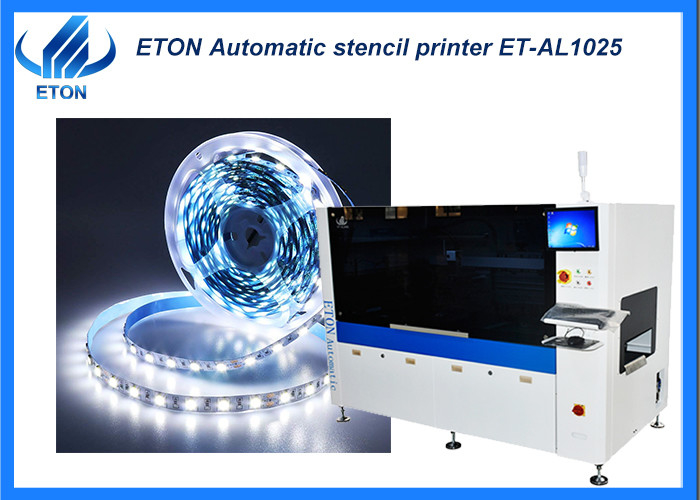

25m, 50m, 100m SMT auto Downward vision alignment system printer
Machine configuration
● Programmable suspension printing head;
*Two sets of stepping motor drive, the pressure of front and rear scraper can be adjusted separately to ensure the inconsistency of front and rear printing caused by fatigue deformation of scraper material;
*Effectively control the stroke, improve the printing efficiency, and prevent the leakage of solder paste;
● Standard stainless steel scraper, unique design, improve the service life of the blade;
● Downward vision alignment system;
● CNC guide rail adjustment;
● Industrial controlled computer,Windows XP interface operating system;
● Built-in software diagnostic system;
● SMEMA interface.
Technical parameter
Screen Frames | Min Size | 850mm |
Max Size | 550mm | |
Thickness | 25~45mm | |
FPCB Min Size | 50mm | |
FPCB Max Size | 260mm | |
FPCB Thickness | 0.5~5mm | |
FPCB Warpage | Max. FPCB diagonal 1% | |
Transport Height | 900±40mm | |
Transport Direction | Left-Right | |
Transport Speed | Max 1000mm/S Programmable (Adjustable) | |
Board Location | Support System | Platform jacking tension |
Clamping System | Edge clamp fixed | |
Print head | Two independent motorized print heads | |
Squeegee Speed | 6~300mm/sec | |
Squeegee Pressure | 0~10Kg/cm2 | |
Squeegee Angle | 55°(Standard) | |
Squeegee Type | Stainless steel(Standard), plastic | |
Stencil Separation Speed | 0.1~20mm/sec Programmable | |
Cleaning System | Manual cleaning | |
Table Adjustment ranges | X:±5mm;Y:±5mm;θ:±2° | |
Machine | ||
Repeat Position Accuracy | ±0.01mm | |
Printing Accuracy | ±0.025mm | |
Cycle Time | ≤9s (Exclude Printing & Cleaning) | |
Air Required | 4.5~6Kg/cm2 | |
Power Input | AC:220±10%,50/60HZ 1Φ 1.5KW | |
Control Method | PC Control | |
Machine Dimensions | 1754(L)X1249(W)X1600(H)mm | |
Machine Weight | Approx:600Kg | |
FPCB transport over plate height | 20mm |
