Product Details:
Payment & Shipping Terms:
|
| Warranty: | 1 Year | Application: | SMD Production Line |
|---|---|---|---|
| PCB Thickness: | 0.4-0.3 Mm | Condition: | New |
| Product Name: | Automatic Unloader UD390 | Weight: | About 240 KG |
| Dimension: | 2250*1010*1200 Mm | Send Board Time: | Around 6 S |
| High Light: | Easy Operation SMT Unloader,Fast Rising SMT Unloader,PLC Control SMT Unloader Equipment |
||

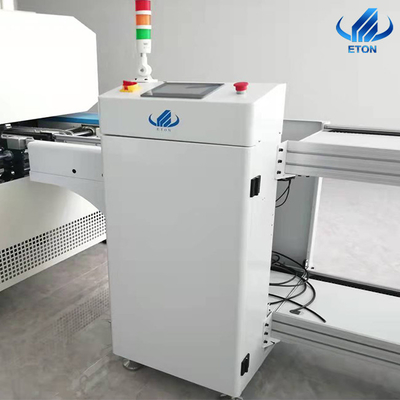

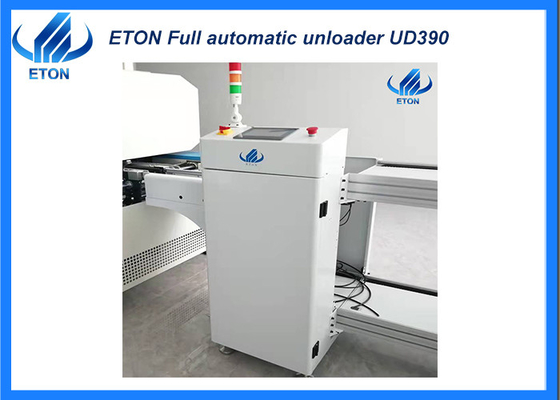

SMT easy operation unloader equipment 240KG PLC control
Machine main features
1. The device of unloading PCB in the SMT production line;
2. PLC control, color man-machine interface operation;
3. Adopting the structure of steeping motor to push the board, the force and speed of the pushing board can be adjusted;
4. Auxiliary positioning brake system, accurate positioning, fast rising and falling speed, high production efficiency;
5. Multiple electric distribution circuit protection, safe and reliable;
6. Acousto-optic alarm system, abnormal information text prompt, easy operation and maintenance.
7. Standard SMEMA signal communication mode.
| Description | This equipment is used for the lowering operation of the circuit board in the production line |
| Number of turnover frame | One box on working, two boxes out of frame segment, two boxes into the frame segment(or customer specified) |
| Send board time | Around 6 s |
| Frame change time | Around 25 s |
| PCB thickness | 0.4-0.3 mm |
| Transmission height | 900±20 mm |
| PCB size | 80*50-510*390 mm |
| Dimension | 2250*1010*1200 mm |
| Size of turnover frame | 535*460*570 mm |
| Approximate weight | About 240 KG |
| Transmission direction | Left-right, right-left |
| Air pressure and air flow | 4-6 Bar, up to 1L/min |

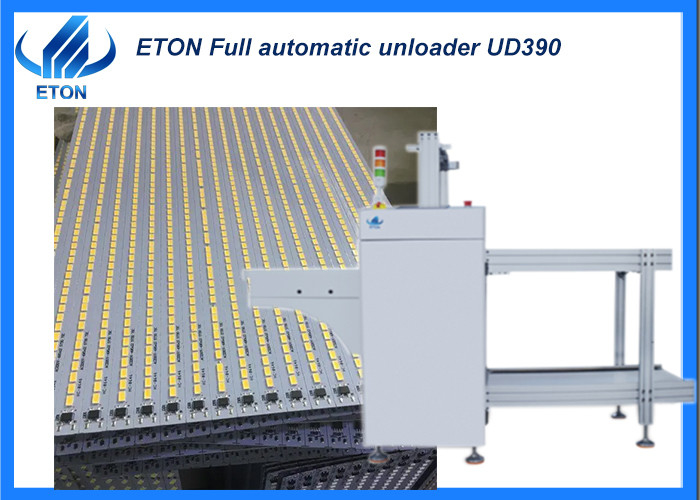

Machine application
Our advantage
Packages
As for the package of the machine, we put it in film packing and foam cotton, to prevent the dust and water of protecting the machine and keep dry of the machine during transportation, and equip with wooden boxes to transport to the specified port.
Service
Pre-sale service
Provide suitable production plan
Advise on plant electrical equipment and layout
Sale service
Report machine status in time
Follow up and send test machine video
After-sales service
Software lifetime upgrade
24 hours to deal with problems online
Engineers can arrive on site to teach operation and debug the machine
Regular visit (one year warranty period, spare parts repair free; Once or twice a year after warranty)
