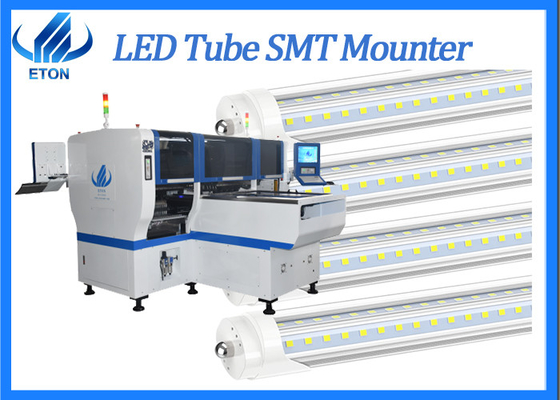

Automatic easy to operate LED chip mounter HT-E8D-600 with 24 heads for LED
Advantages
High precision. Solved the problem of throwing materials of previous machines. 4 sets of imported camera with its features of vision alignment and Mark correction to ensure.
High capacity. 90000CPH, to solve your troubles of low production efficiency.
High technology. Automatic operation, save a lot of manpower and material resources.
Exclusive Patent Technology: group picking and separately placing, separately picking and separately placing. High-end magnetic linear motor +servo motor to drive X,Y Axis.
Technical Support. It doesn't matter if you don't know the technology, we have a professional team and professional engineers that can provide on-site services.
Machine main parameter
|
|
HT-E8D-600 |
| L*W*H |
1950*2250*1650mm |
| Total Weight |
2200kg |
| PCB Length Width |
MAX:600*350mm MIN:100*100mm |
| PCB Thickness |
0.5~5mm |
| PCB Clamping |
Adjustable pressure pneumatic |
| Mounting Mode |
Group picking and separate placing, separate picking and separate placing |
| Mounting height |
<15mm |
| No. of Camera |
4PCS |
| Mounting Precision |
±0.04mm |
| Mounting Speed |
90000CPH |
| Components Space |
0.2mm |
| Feeders Station |
48PCS single module |
| No. of nozzles |
24PCS single module |
| Power Consumption |
8KW |
| Conveyor Transmission |
MAX Length:600mm |
| Electrical control |
Independent research and development by ETON |
| Motion control card module 1 set |
Independent research and development by ETON |
| X,Y,Z, Axis Drive way |
High-end magnetic linear motor + servo motor |
Application
1. Used in led lighting industry, power drive board, home appliance control board, etc.
2.Mounting components: LED chips, capacitors, resistors, lC, shaped components, etc.
3.Mounting products: It can perfectly mount various drivers, power supplies, circuit boards, lenses, linear bulbs, home appliance control panels, DOB, lamp tubes, street lights, down-lights, panel lights, corn lights, ceiling lights, wall lights, spotlights, etc.,
Company Introduction
1. Strong reach and develop technology team, support machine upgrade continuously, support client strong technical support
2. Rich experience in SMT Industry Line. ETON set up more than 10 years, we are leading manufacturer of SMT machine in China
3. Strong production capacity, ETON have more than 50000 square meter Industrial park in Jiangxi Province, machine capacity more than 50 units/month
4. Good and professional service. Provide engineer Door-to-door service, support video online training, video training share,free replaced machine core part during warranty. And also we could provide professional SMT line solution.
Packaging
All machines are packed with vacuum and wooden packing like the one in the pictures.
Step 1. Film packaging
Prevent the machine from dust ,water,crash and shaking.
Step 2. Add foam+film packaging
Double safe protection,Prevent the machine from crash and shaking.
Step 3. Unique tin foil packaging
Add tin foil packing can prevent the film from scratch broken.
Step 4. customized Strong wood carton packing
The customized strong wood packing for ocean ship,The machines are fix oi in the wood carton, effectively prevent collision and shock.
FAQ
Q: How can you make sure that the products won’t be damaged or wet?
A: We take multiple measures to protect the products. They are first packing with individual. We put them into a carton and wrapped with plastic film and sealed with tape to keep the cartons in position and protect them from water.
Q: How is the breakdown rate of machine?
A: our machine is very stable,the breakdown rate is less than 0.001.
Q: What kind of machine will provide besides pick and place machine ?

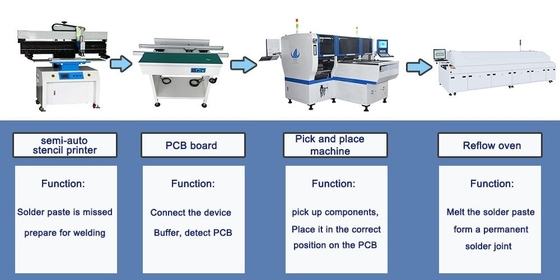

A: ETON as the largest manufacturer of SMT machine in China, we provide whole SMT line, such as reflow oven, printer, conveyor, pick and place machine, Loader, Unloader, etc.
Q:What are your advantages?
A: Our company stick to five level management policy: sincere business, focus on R&D, manufacturing intentions, considerate service, customer trust.
